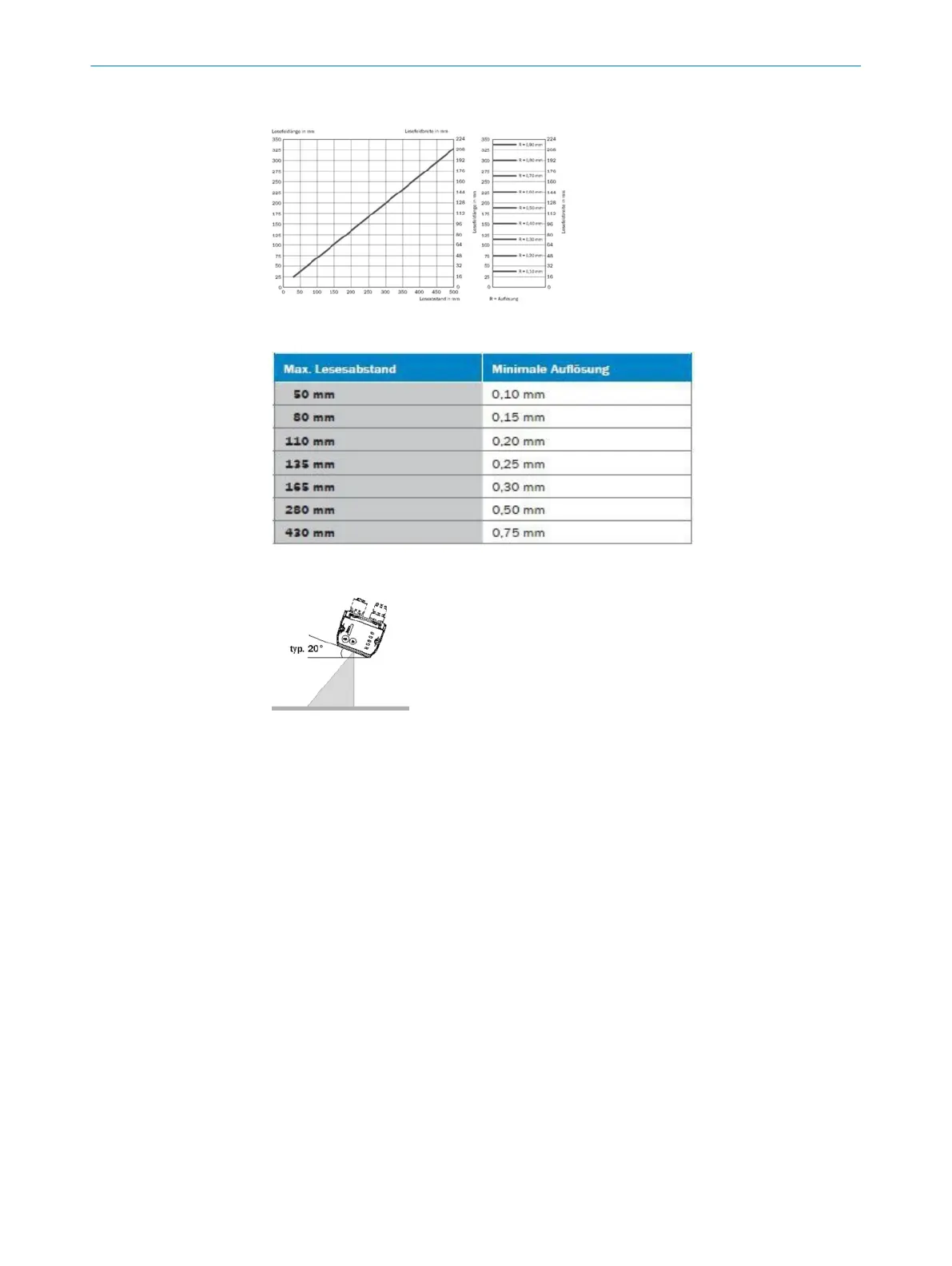

Reference values for reading distance - reading field size - resolution
Maximum reading distance with minimum resolution
Skew angle, depending on the application
The sensor should typically be tilted by 20° out of plumb to the surface of the code to
avoid disruptive reflections.
In the case of codes created on metal, e.g., by dot peening, an angle of between 0°
(bright field light) and 45° (dark field light) may be advisable.
SOPAS PARAMETER OVERVIEW
86
O N L I N E H E L P | Lector62x 8013778/YPV6/2016-01-14 | SICK
Subject to change without notice
