Antennas
6.1 ANT 3
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
143
6.1.3
Mounting on/in metal
The tuning of the ANT 3 antenna is optimized for mounting on metal.
â‘
ANT 3
â‘¡
Metal

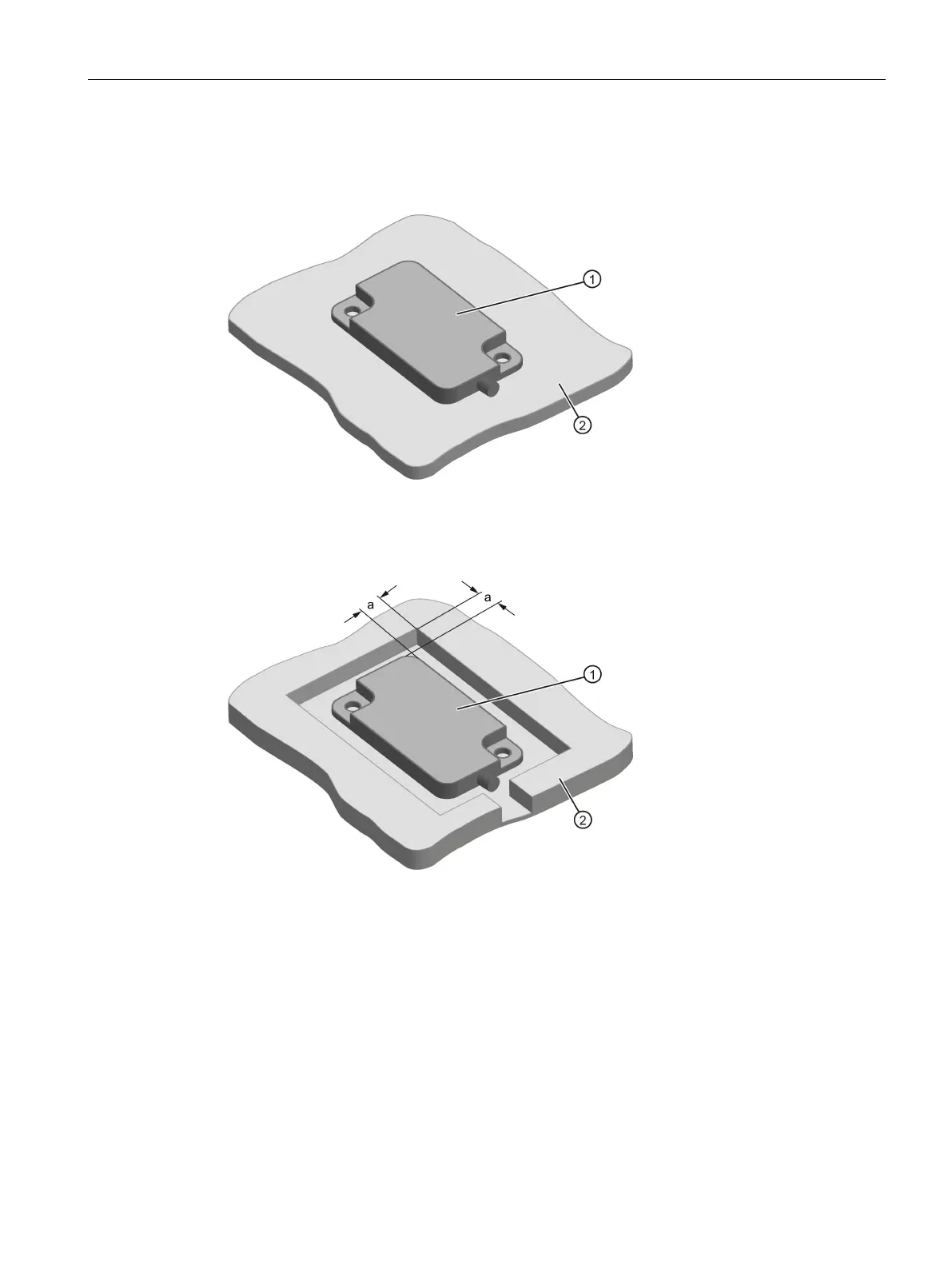

Figure 6-1 ANT 3 mounted on metal
â‘
ANT 3
â‘¡
Metal
a
= 10 mm
Figure 6-2 ANT 3 flush-mounted in metal
