Readers
5.1 SIMATIC RF210R
SIMATIC RF200
92 System Manual, 07/2015, J31069-D0227-U001-A9-7618
5.1.5

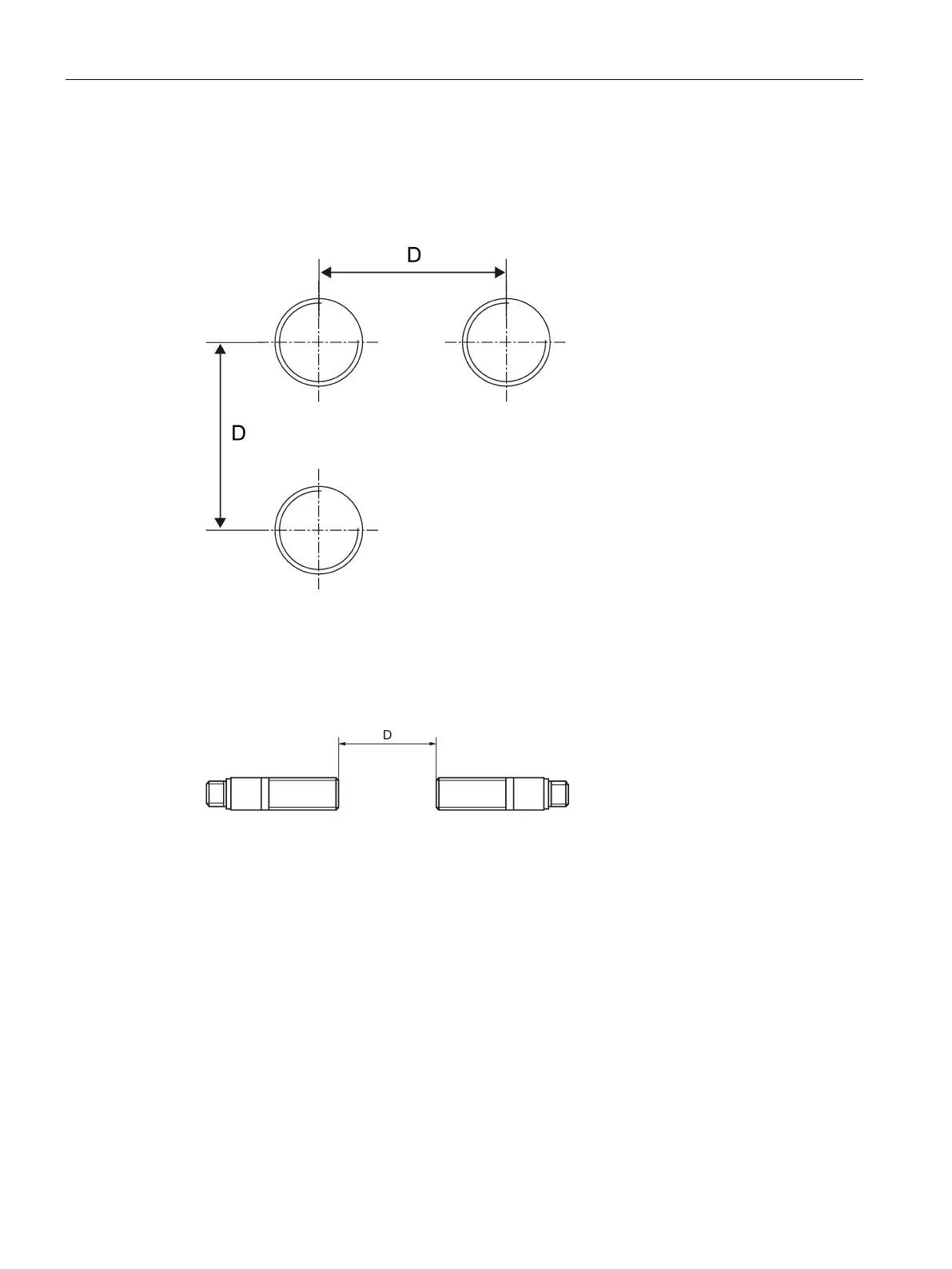

Minimum distance between RF210R readers
RF210R side by side
D
≥ 60 mm
Figure 5-1 Minimum distance between RF210R readers
RF210R face to face
D
≥ 100 mm
Figure 5-2 Face-to-face distance between two RF210Rs
