Appendix
A.2 Accessories
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
329
A.2.4
Transponder holders

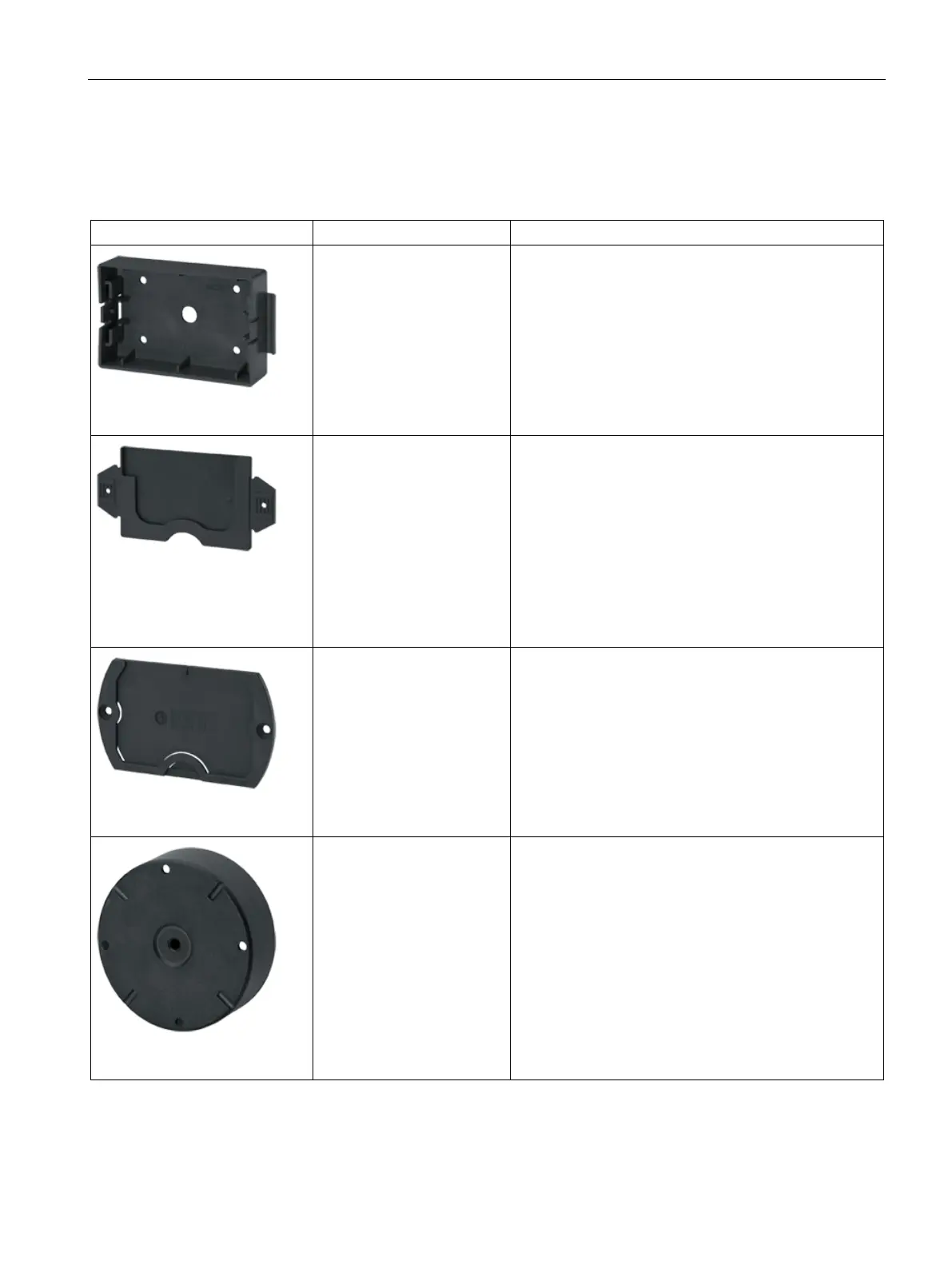

Table A- 11 Overview of the transponder holders and spacers
Product photo
Usable transponders
Characteristics
6GT2190-0AA00
• MDS D100
• MDS D200
• MDS D400
•
Spacer for mounting on metal, in conjunction with the
fixing pocket 6GT2190-0AB00
• Distance from transponder to metal: 25 mm
• Mounting: 4 x M4 screws
• Material: PA6
• Weight: 31 g
• Dimensions (L x W x H): 110 x 62 x 24 mm
6GT2190-0AB00
• MDS D100
• MDS D200
• MDS D400
• Fixing pocket in conjunction with spacer 6GT2190-
0AA00
• Mounting:
– Locks into spacer
– 2 x screws/nails
– Stapled
• Material: PA6
• Weight: 12 g
• Dimensions (L x W x H): 121 x 57 x 5 mm
6GT2390-0AA00
• MDS D100
• MDS D200
• MDS D400
• Fixing pocket not suitable for mounting directly on
metal
• Mounting: 2 x M4 countersunk screws
• Material: PA6
• Weight: 21 g
• Dimensions (L x W x H): 110 x 65 x 5 mm
6GT2690-0AA00
• MDS D139
• MDS D339
• Spacer for mounting on metal
• Distance from transponder to metal: 30 mm
• Mounting: 1 x M5 stainless steel screw
• Tightening torque: 1.5 Nm
• Material: PPS
• Weight: 50 g
• Dimensions (Ø x H): 85 x 30 mm
