Transponder
7.22 MDS D460
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
275
Design, dimensions and weight
Type of mounting
• Glued
• With spacer
1)
The values for shock and vibration are maximum values and must not be applied continuously.
Dimension drawings

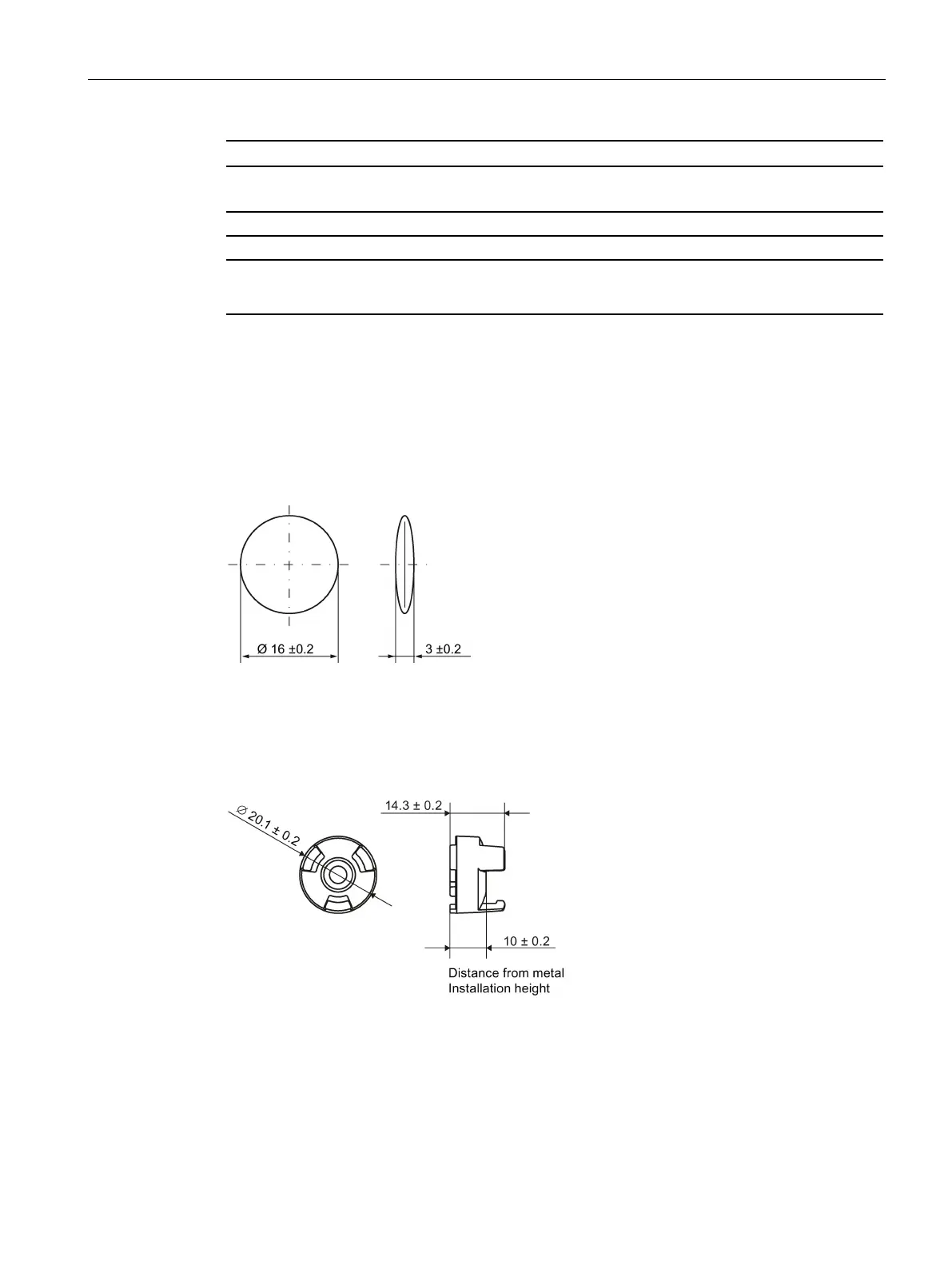

Dimensional drawing of MDS D460
Figure 7-55 Dimensional drawing of MDS D460
Dimensional drawing of spacer
Figure 7-56 Dimensional drawing of spacer
