Transponder
7.8 MDS D160
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
219
7.8.5
Dimension drawings

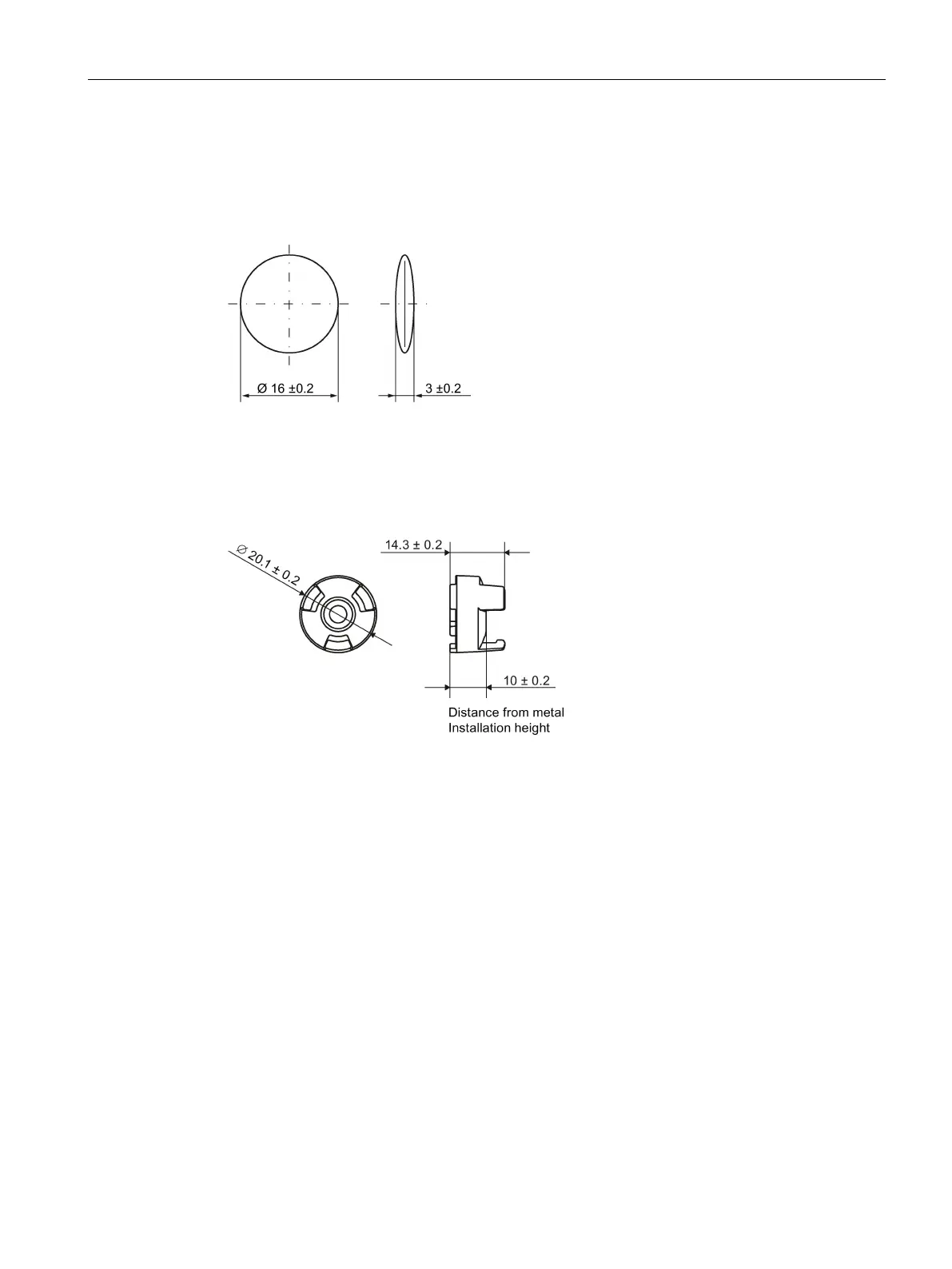

Dimensional drawing of MDS D160
Dimensions in mm
Figure 7-17 Dimensional drawing of MDS D160
Dimensional drawing of spacer
Dimensions in mm
Figure 7-18 Dimensional drawing of spacer
