Antennas
6.2 ANT 8
SIMATIC RF200
150 System Manual, 07/2015, J31069-D0227-U001-A9-7618
Note
Extension of the data transmission time if distance values are undershot
If the distance valu
es specified in the tables are undershot, it is possible that the inductive
fields will be affected. In this case, the data transmission time can increase unpredictably or
a command is aborted with an error.
For this reason, please observe the values in
the tables.
Minimum distances from transponder to transponder (without multitag mode)
≥ 20 mm ≥ 30 mm
D > 30 mm (with 2 antennas)
> 30 mm (with 3 antennas)

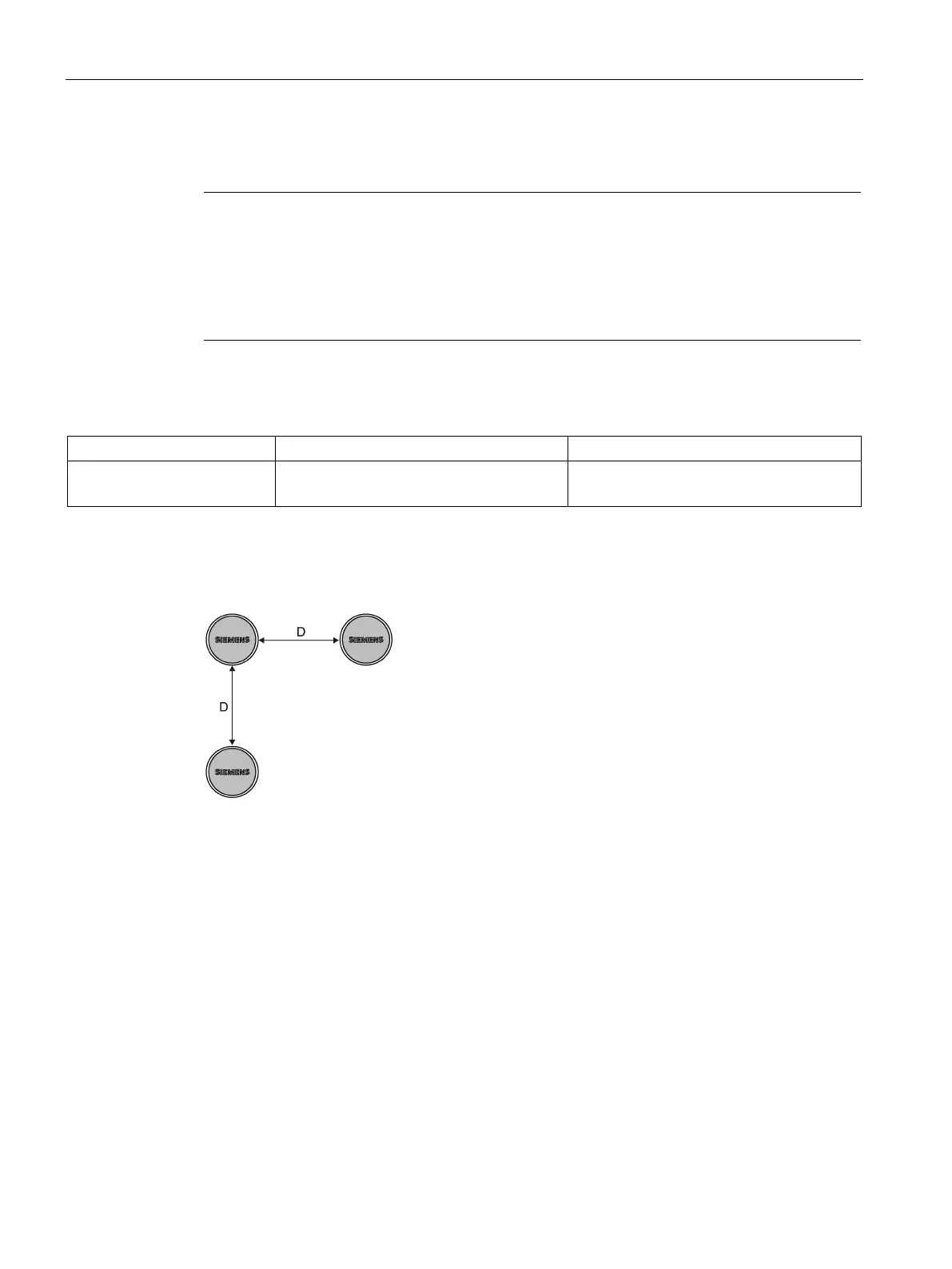

Figure 6-8 Minimum distance for ANT 8
