Siemens SIMATIC Ident - Dimension Drawing

Antennas
6.4 ANT 18
SIMATIC RF200
162 System Manual, 07/2015, J31069-D0227-U001-A9-7618
6GT2398-1CA00
6GT2398-1CA10
Permitted ambient conditions
Ambient temperature
• During operation • -20 °C ... +70 °C
• During transportation and storage • -40 °C ... +85 °C
Degree of protection to EN 60529
IP67 (front)
Shock-resistant to EN 60721-3-7, Class 7 M3
50 g
1)
Vibration-resistant to EN 60721-3-7, Class 7 M3
20 g
1)
Design, dimensions and weights
Dimensions (Ø x H)
18 x 55 mm
Weight
120 g
Type of mounting
2 x plastic nuts M18
Cable length
3 m or 0.6 m
1)
Warning: The values for shock and vibration are maximum values and must not be applied contin-
uously.
6.4.7
Dimension drawing

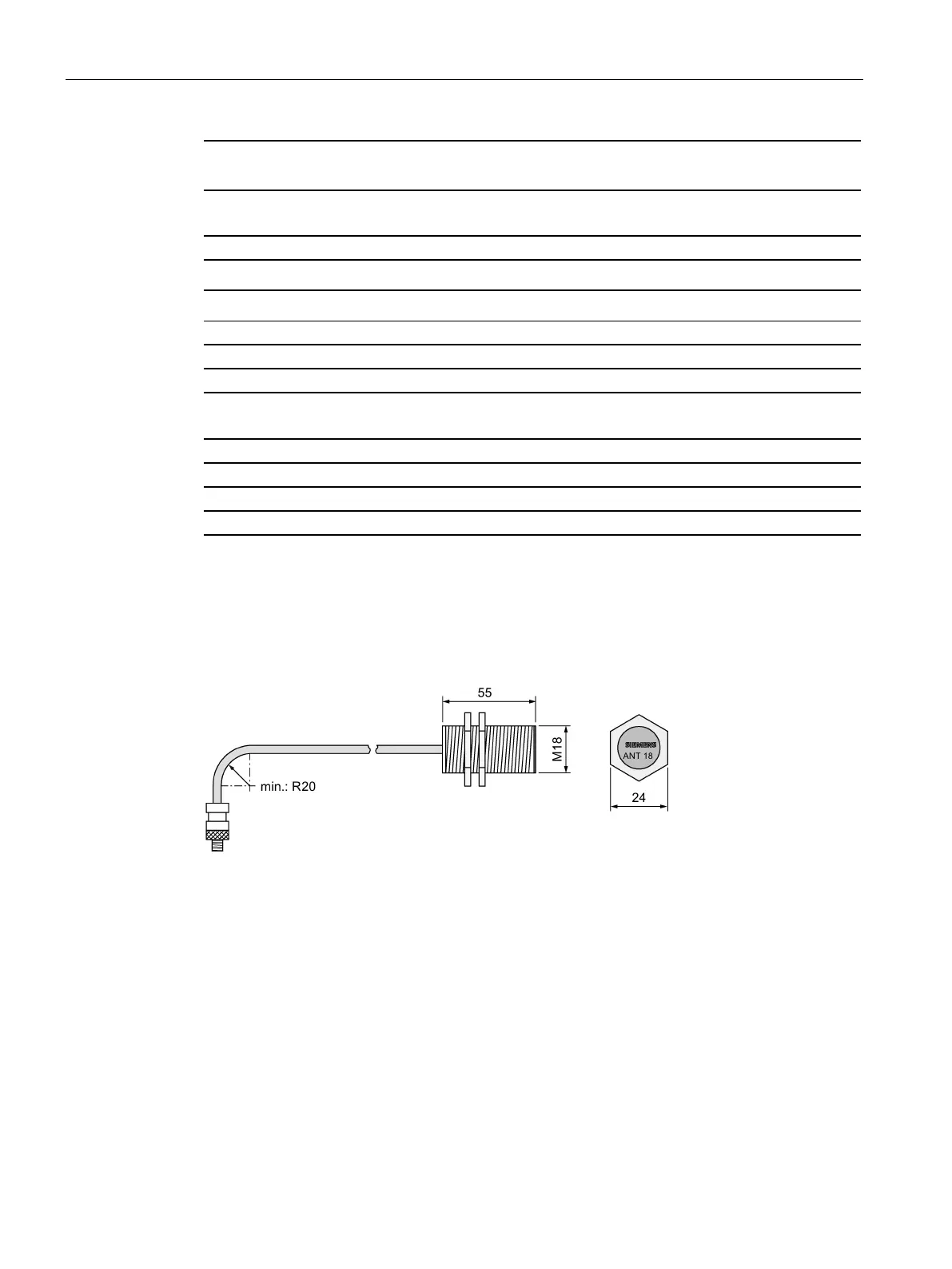

Figure 6-20 Dimension drawing ANT 18 (all values in mm)
