Transponder
7.23 MDS D521
SIMATIC RF200
280 System Manual, 07/2015, J31069-D0227-U001-A9-7618
6GT2600-5AE00
Design, dimensions and weight
Dimensions (Ø x H)
10 x 4.5 mm
Weight
4 g
Type of mounting
Glued
2)
1)
The values for shock and vibration are maximum values and must not be applied continuously.
2)
The manufacturer's processing instructions must be observed.
7.23.5
Dimension drawing

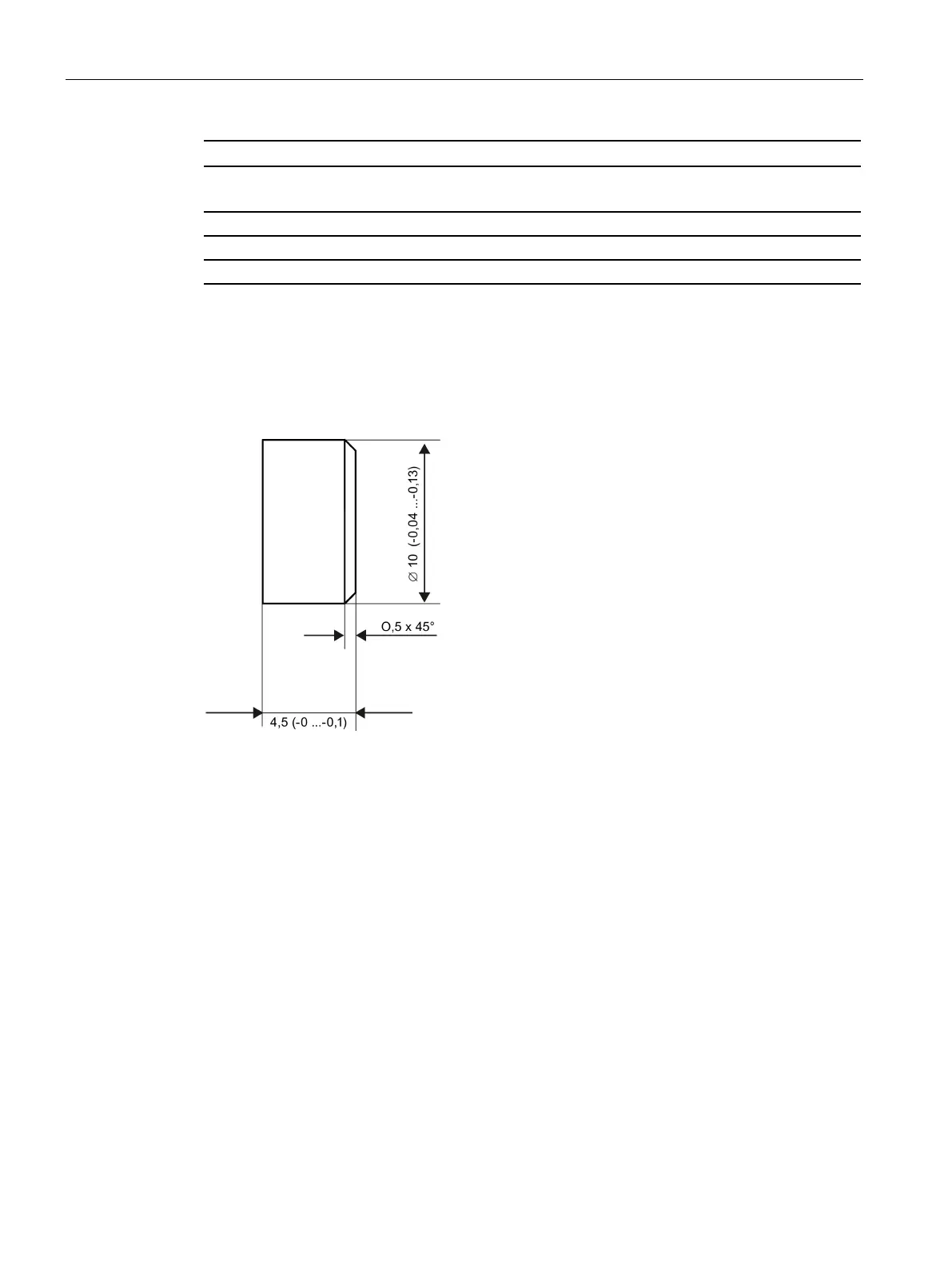

Figure 7-62 Dimensional drawing of MDS D521
All dimensions in mm
