Siemens SIMATIC Ident - Transmission Window; Flush-Mounted in Metal

Antennas
6.3 ANT 12
SIMATIC RF200
154 System Manual, 07/2015, J31069-D0227-U001-A9-7618
6.3.3
Transmission window
L
d
Length of the transmission window (= 20 mm)
S
a
Operating distance between antenna and transponder
S
g
Limit distance (maximum clear distance between upper surface of the reader and the antenna,
at which the transmission can still function under normal conditions)

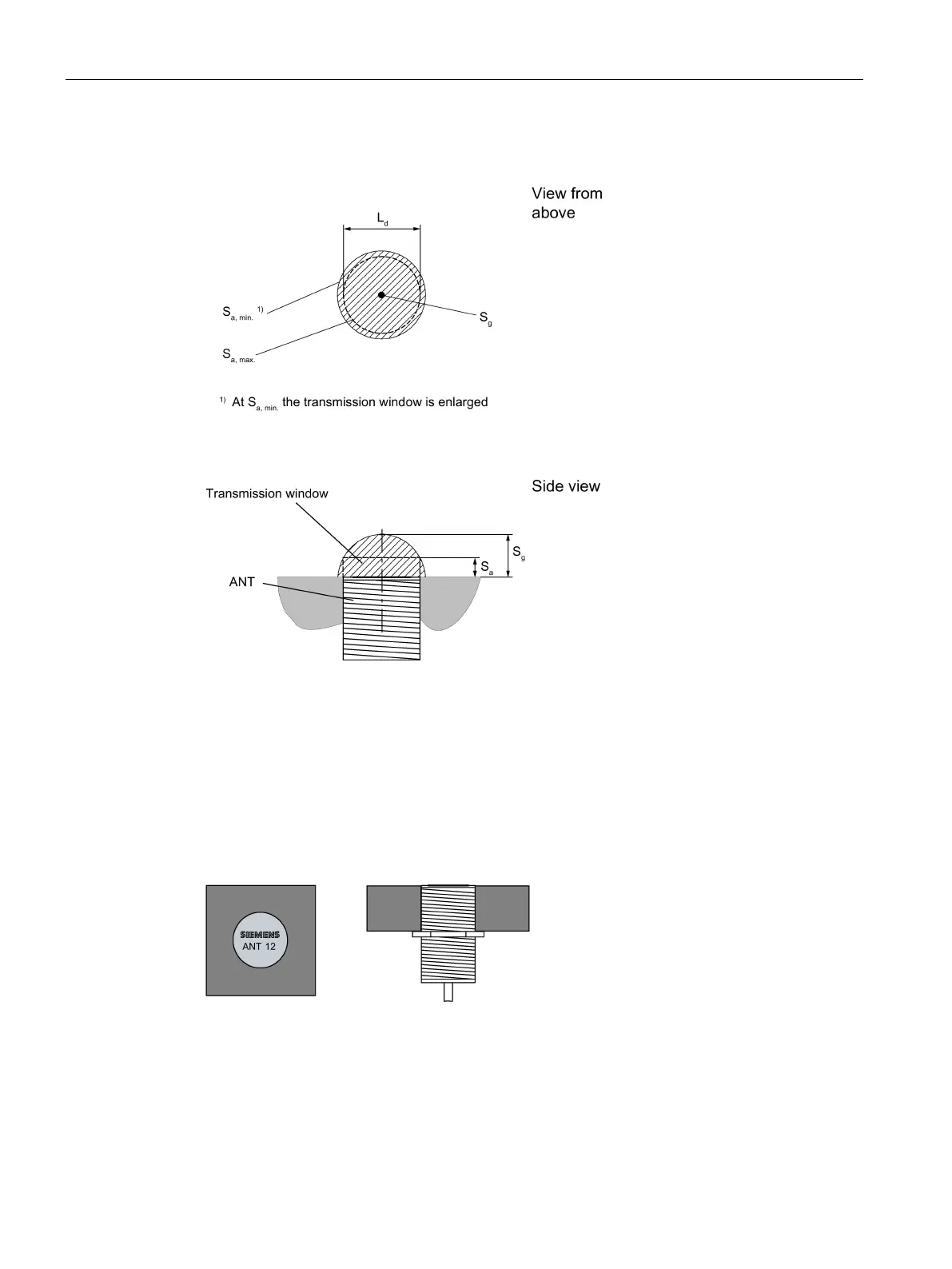

Figure 6-11 Transmission window ANT 12
6.3.4
Flush-mounted in metal
Figure 6-12 ANT 12 flush-mounted in metal
