Transponder
7.25 MDS D522 special variant
SIMATIC RF200
286 System Manual, 07/2015, J31069-D0227-U001-A9-7618
Installation instructions
The transponder MDS D522 special version is designed to be mounted once.
Note the following instructions when mounting the MDS D522 in a workpiece to avoid
damaging the transponder:
● Prepare the workpiece according to the following drawing.
● Using the accompanying mounting aid, press the transponder with uniform and evenly
distributed pressure into the drilled hole until the transponder locks in place. Make sure
that the transponder does not become tilted.

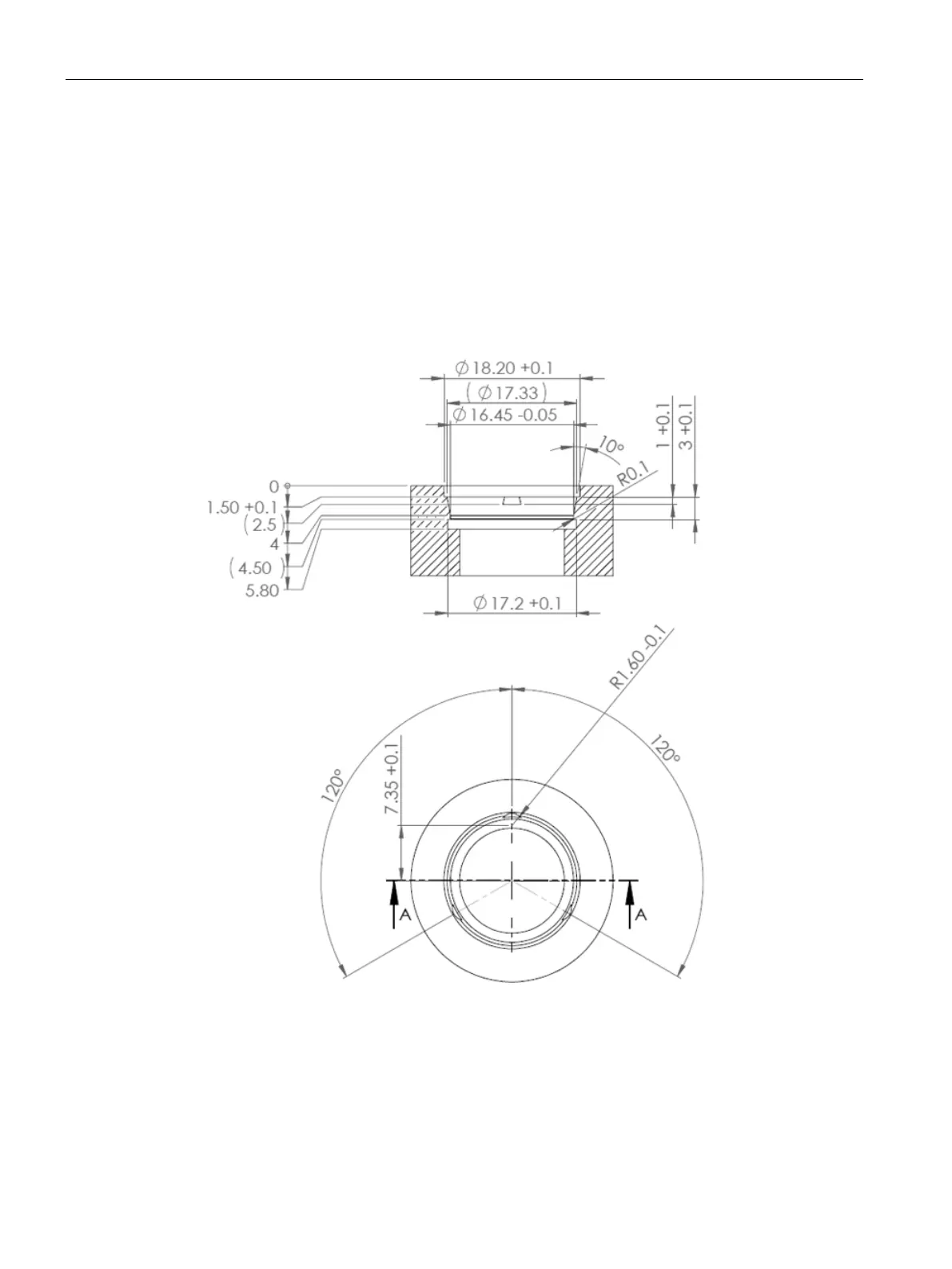

Figure 7-66 Dimension drawing: Workpiece drill hole for mounting the MDS D522 special version
