Appendix
A.2 Accessories
SIMATIC RF200
314 System Manual, 07/2015, J31069-D0227-U001-A9-7618

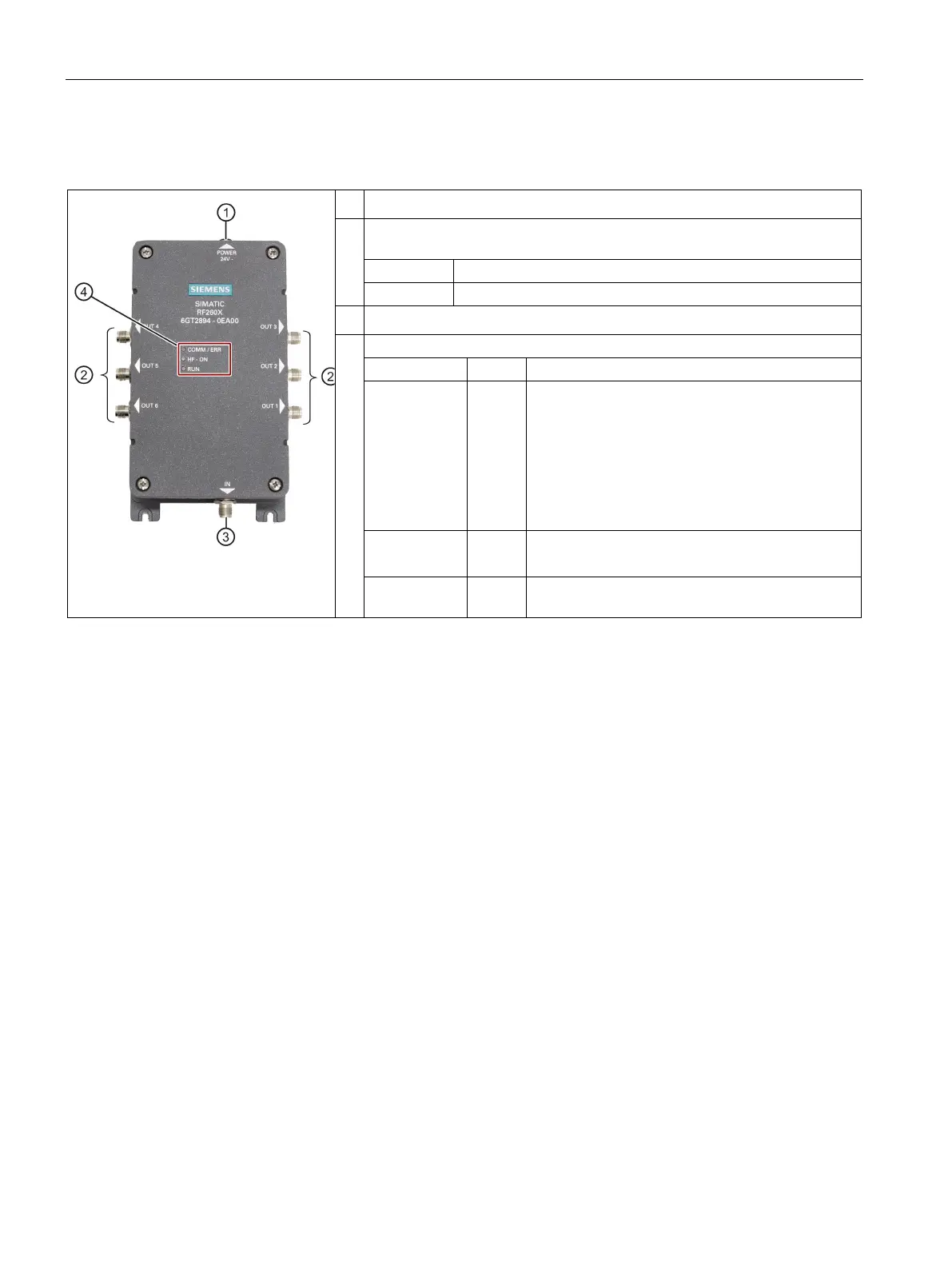

24 V DC power supply
Antenna connections OUT 1 to OUT 6
Lit when the corresponding antenna output is active.
SLG antenna connection "IN"
â‘¢
COMM / ERR Red
• Flashes when the RF260X receives a signal
from the SLG. (Only with commands directly to
the RF260X)
• Lit when the multiplexer has detected an error
on the output
(e.g. non-terminated antenna cable / defective
antenna cable / short-circuit)
HF - ON Green Lit when an HF signal is applied to the "IN" socket
RUN Green Flashes when the RF260X is in the normal operat-
You can operate up to six antennas on one reader by using the multiplexer RF260X. The
data is processed sequentially.
Antenna switchover is performed in time-multiplex mode, so by connecting several antennas
together, the processing time / activation time per antenna is lengthened accordingly.
