RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
54 System Manual, 07/2015, J31069-D0227-U001-A9-7618
The RF220R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.

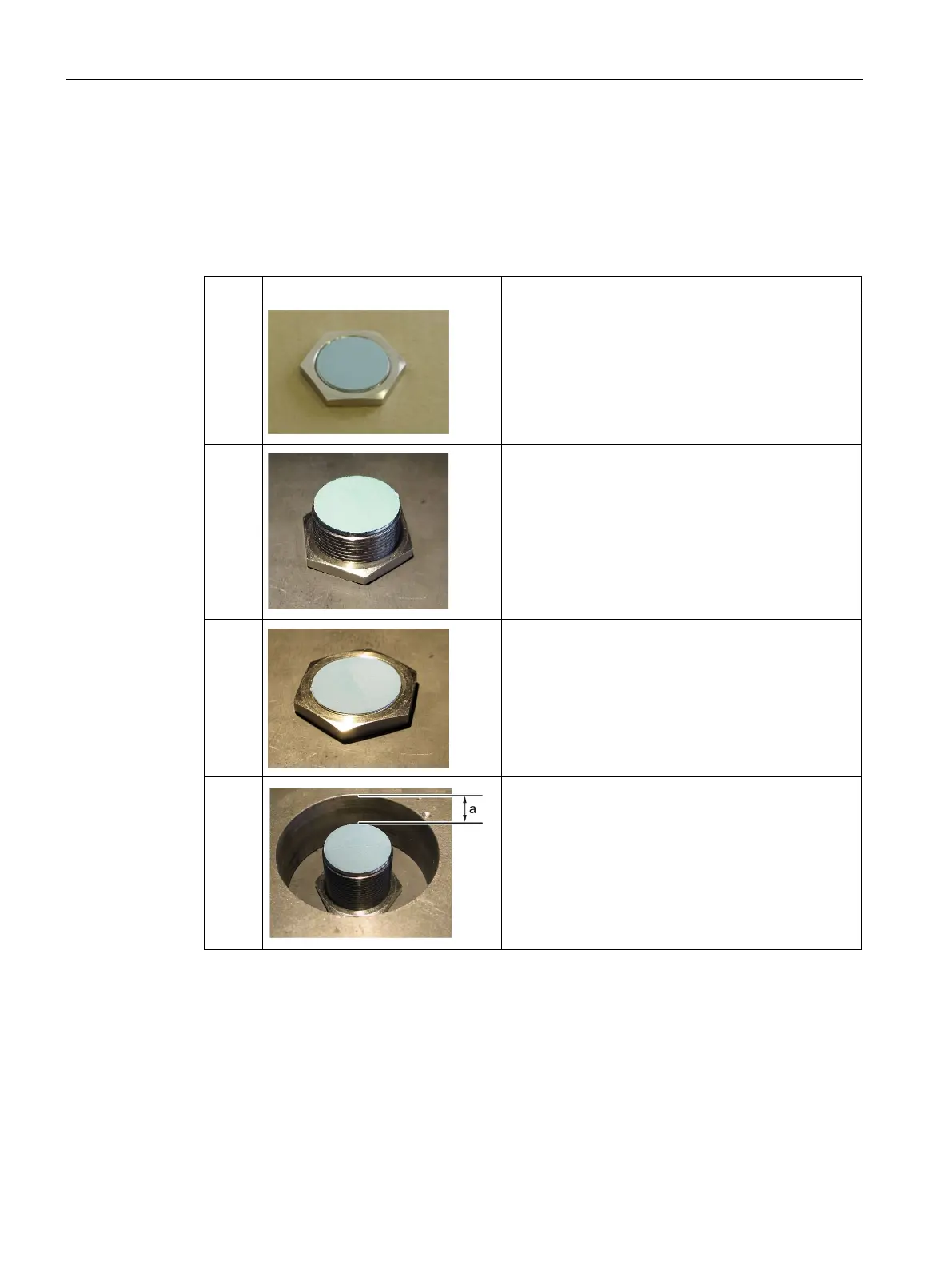

The following table shows the different arrangements for the reader with and without a
metallic environment:
a)
Reader metal-free
b)
Reader on metal,
distance from metal ≥ 12 mm
c)
Reader in metal,
flush against M30 nut
d)
Reader in metal,
all round
