RF200 system planning
4.1 Fundamentals of application planning
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
35
Communication between communication module, reader and transponder
Aids for calculating the data transmission times
User-friendly calculation tools are available for the communications modules ASM 456,
RF160C, RF170C and RF180C to calculate data transfer times. The calculation tools can be
found on the DVD "RFID Systems Software & Documentation", article number 6GT2080-
2AA20.

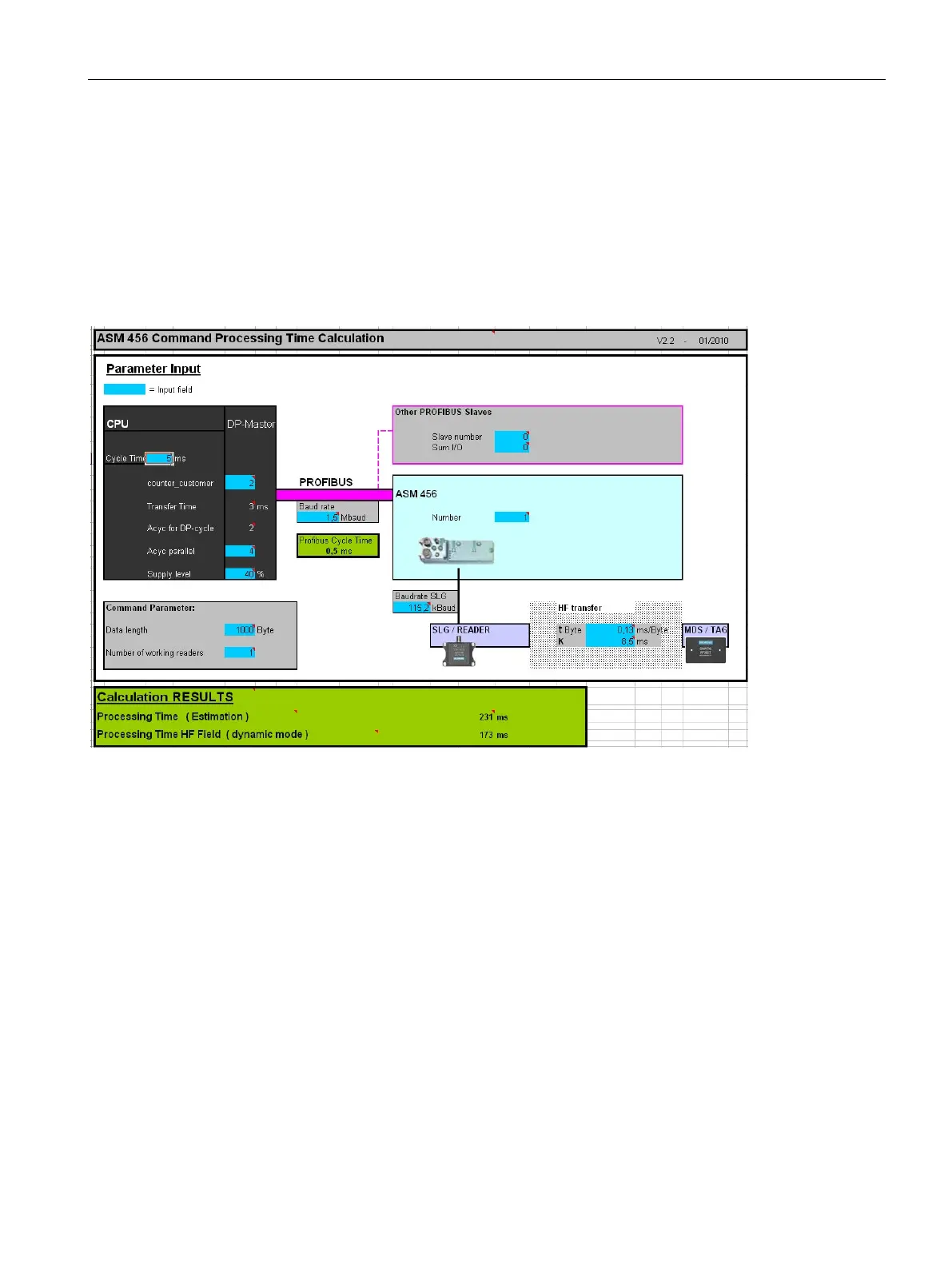

Figure 4-9 User interface of the calculation tool for command processing time
