Antennas
6.6 ANT D5
SIMATIC RF200
174 System Manual, 07/2015, J31069-D0227-U001-A9-7618
6.6.7
Dimension drawing

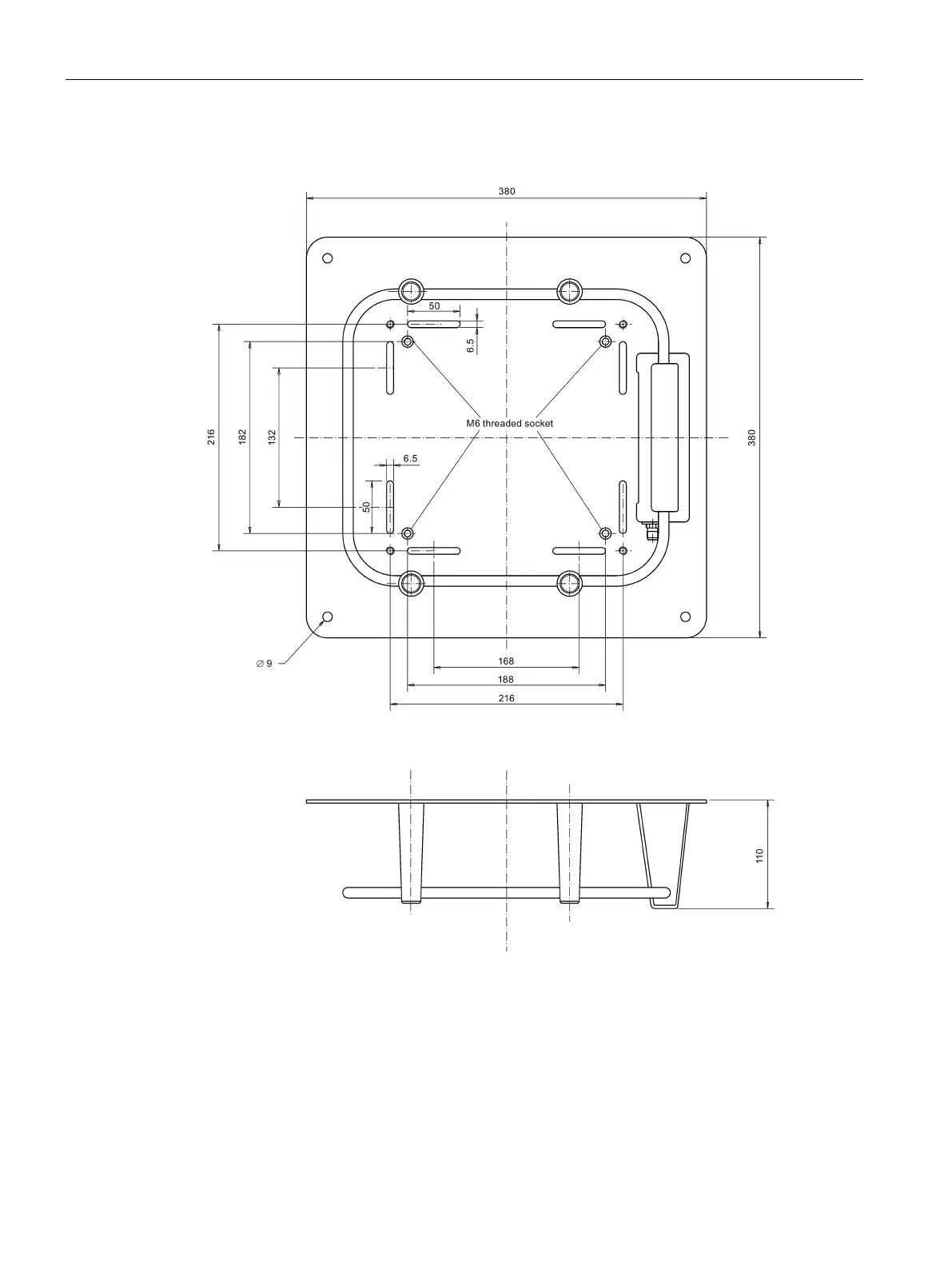

Figure 6-29 Dimension drawing for ANT D5
