Siemens SIMATIC Ident - Dimension Drawing

Transponder
7.12 MDS D324
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
233
6GT2600-3AC00
Design, dimensions and weight
Dimensions (Ø x H)
27 x 4 mm
Weight
5 g
Type of mounting
• 1 x M3 screw
2)
≤ 1 Nm
• Glued
1)
The values for shock and vibration are maximum values and must not be applied continuously.
2
) To prevent it loosening during operation, secure the screw with screw locking varnish.
7.12.5

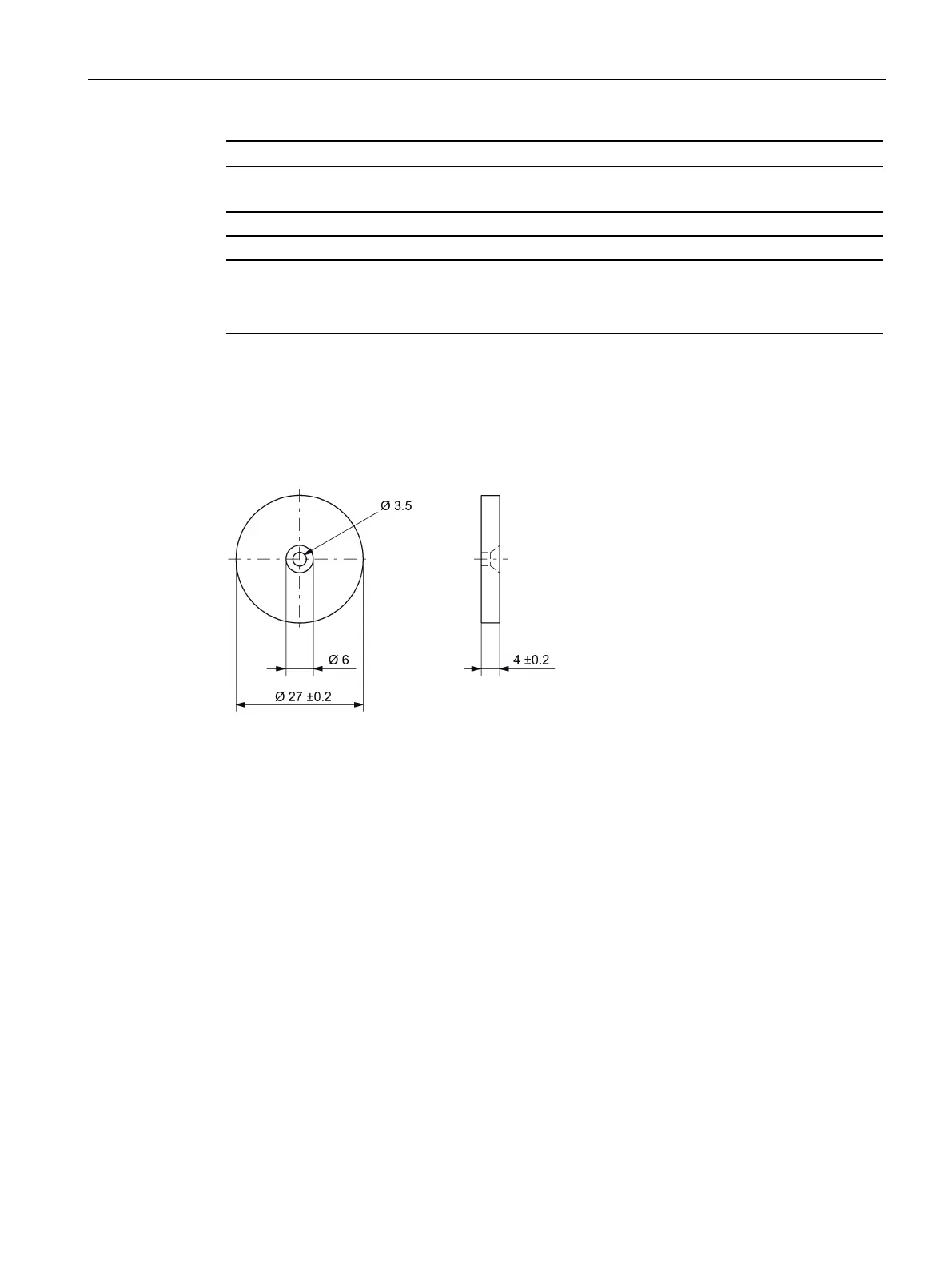

Dimension drawing
Dimensions in mm
Figure 7-26 Dimension drawing of MDS D324
