RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
72 System Manual, 07/2015, J31069-D0227-U001-A9-7618
4.3.5.1
Installation options with the antenna splitter (2-4 antennas)
Possible configurations of the antennas
The antenna installations described here have been designed for reading smartlabels
(transponders) on goods on conveyor belts, conveyor systems or pallets.
A prerequisite is that there are no magnetically conducting materials (e.g. metal) in the
vicinity of the antenna or the label.

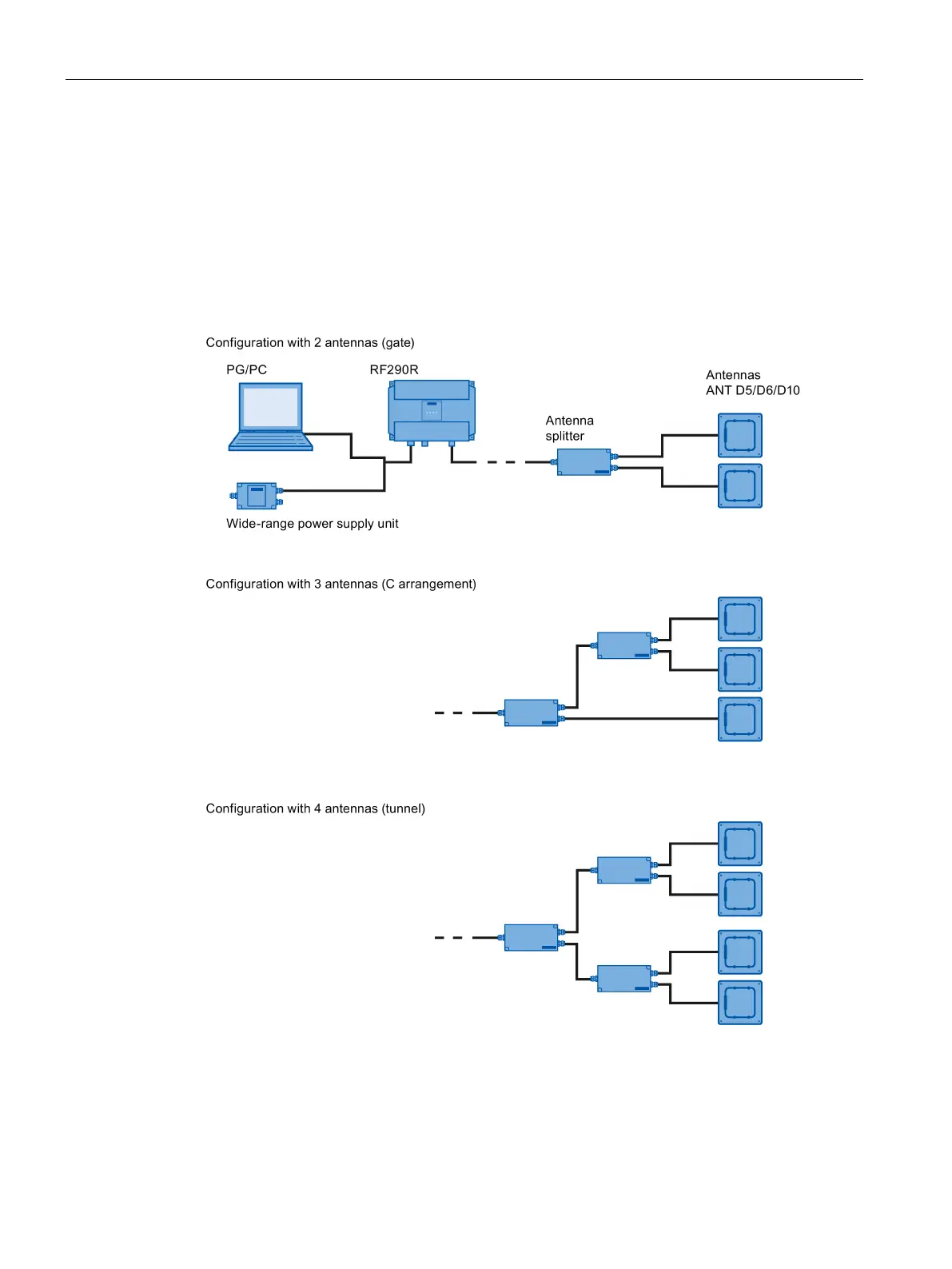

Figure 4-15 Possible configuration of RF290R with ANT D5/D6/D10
