RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
73
Installation examples

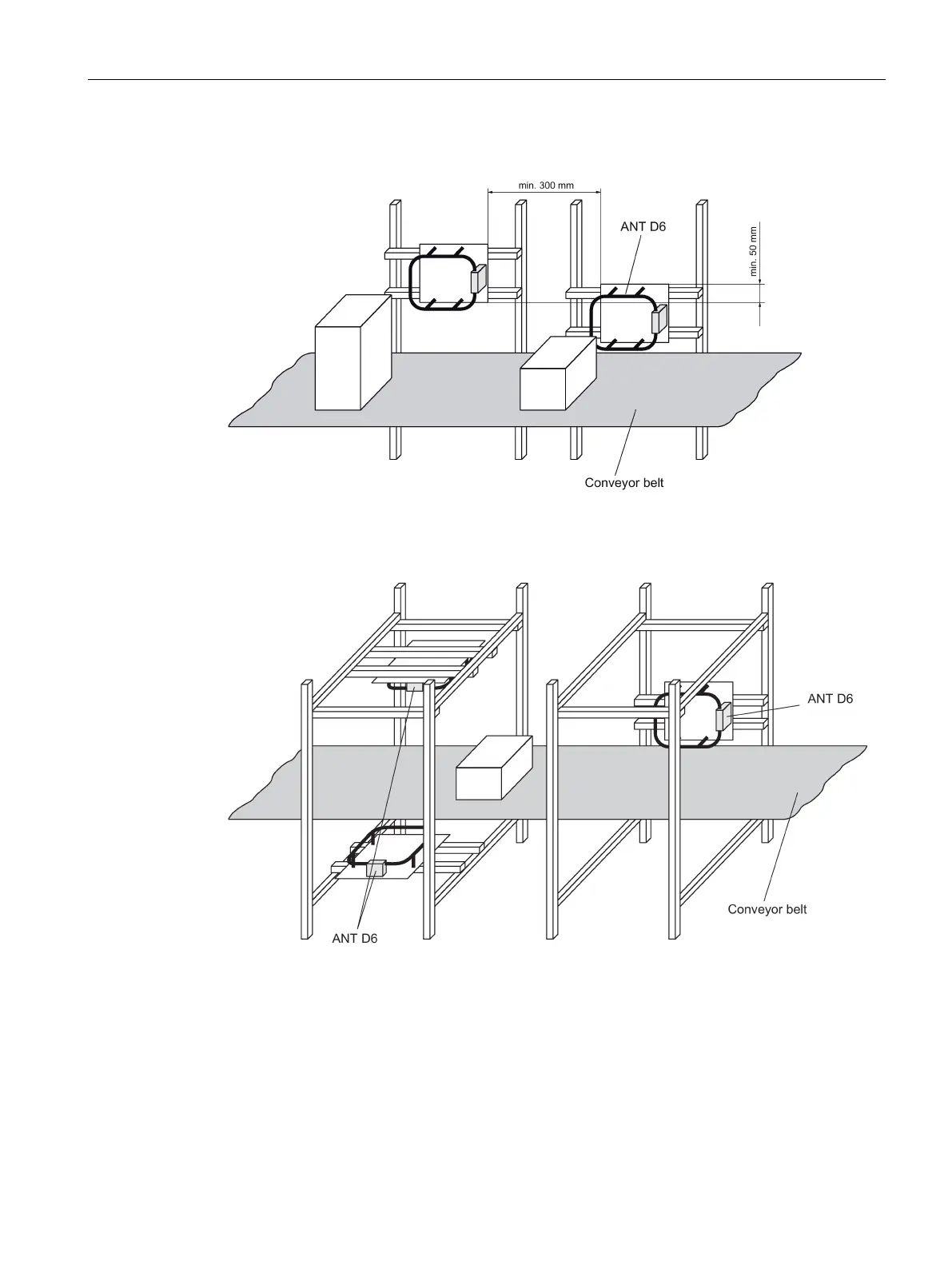

Figure 4-16 Installation example with 2 ANT D6 (portal)
Figure 4-17 Installation example with ANT D6 (C arrangement)
