Siemens SIMATIC Ident - Dimension Drawing

Transponder
7.19 MDS D425
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
265
6GT2600-4AG00
Design, dimensions and weight
Dimensions (Ø x H)
24 x 10 mm
Weight
35 g
Type of mounting 1 x transponder thread M6
≤ 6 Nm
1)
The values for shock and vibration are maximum values and must not be applied continuously.
7.19.5

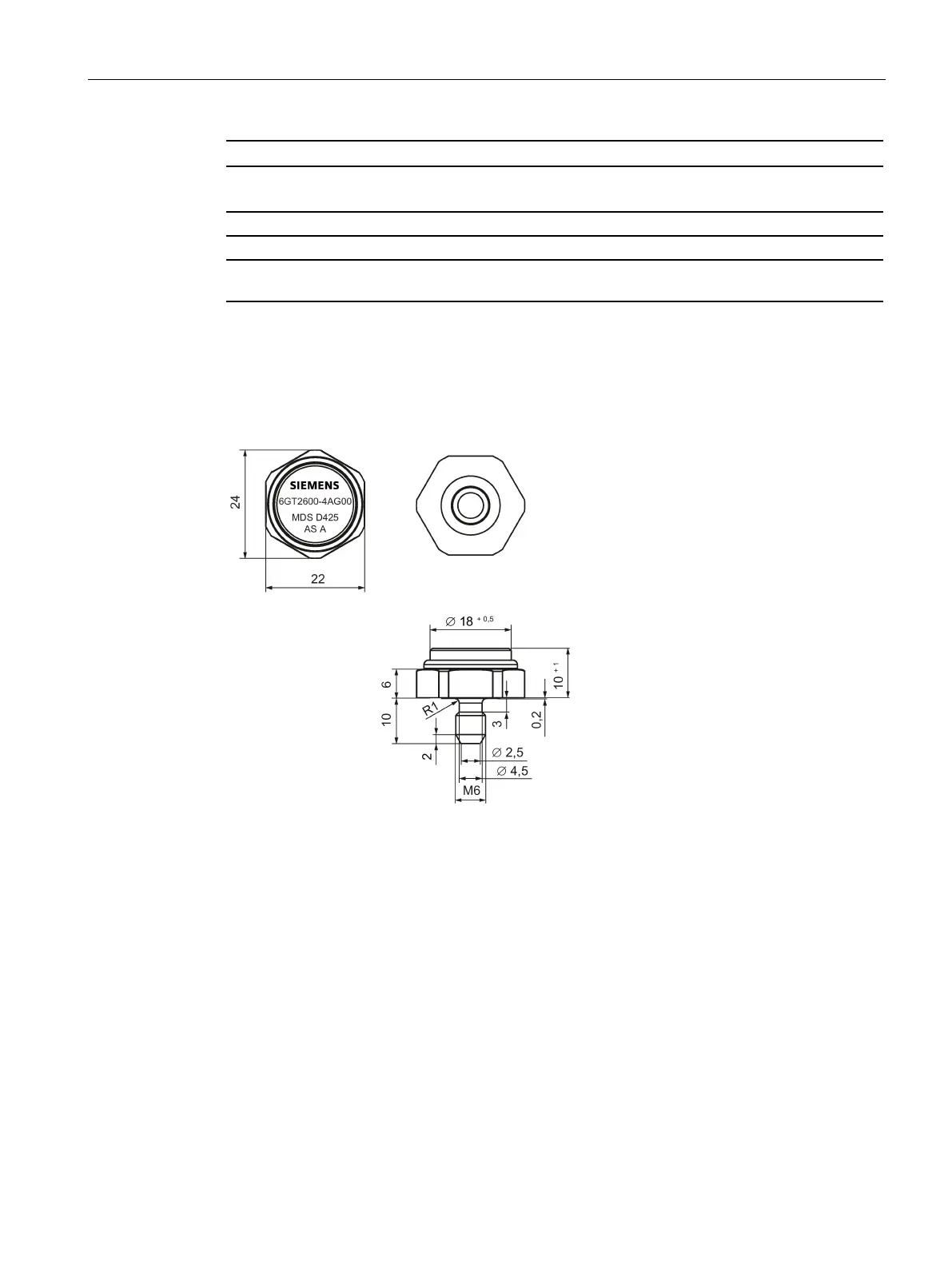

Dimension drawing
Dimensions in mm
Figure 7-50 Dimension drawing of MDS D425
