Siemens SIMATIC Ident - Pin Assignment of DC Outputs and Mains Connection

Appendix
A.2 Accessories
SIMATIC RF200
326 System Manual, 07/2015, J31069-D0227-U001-A9-7618
A.2.3.7
Pin assignment of DC outputs and mains connection

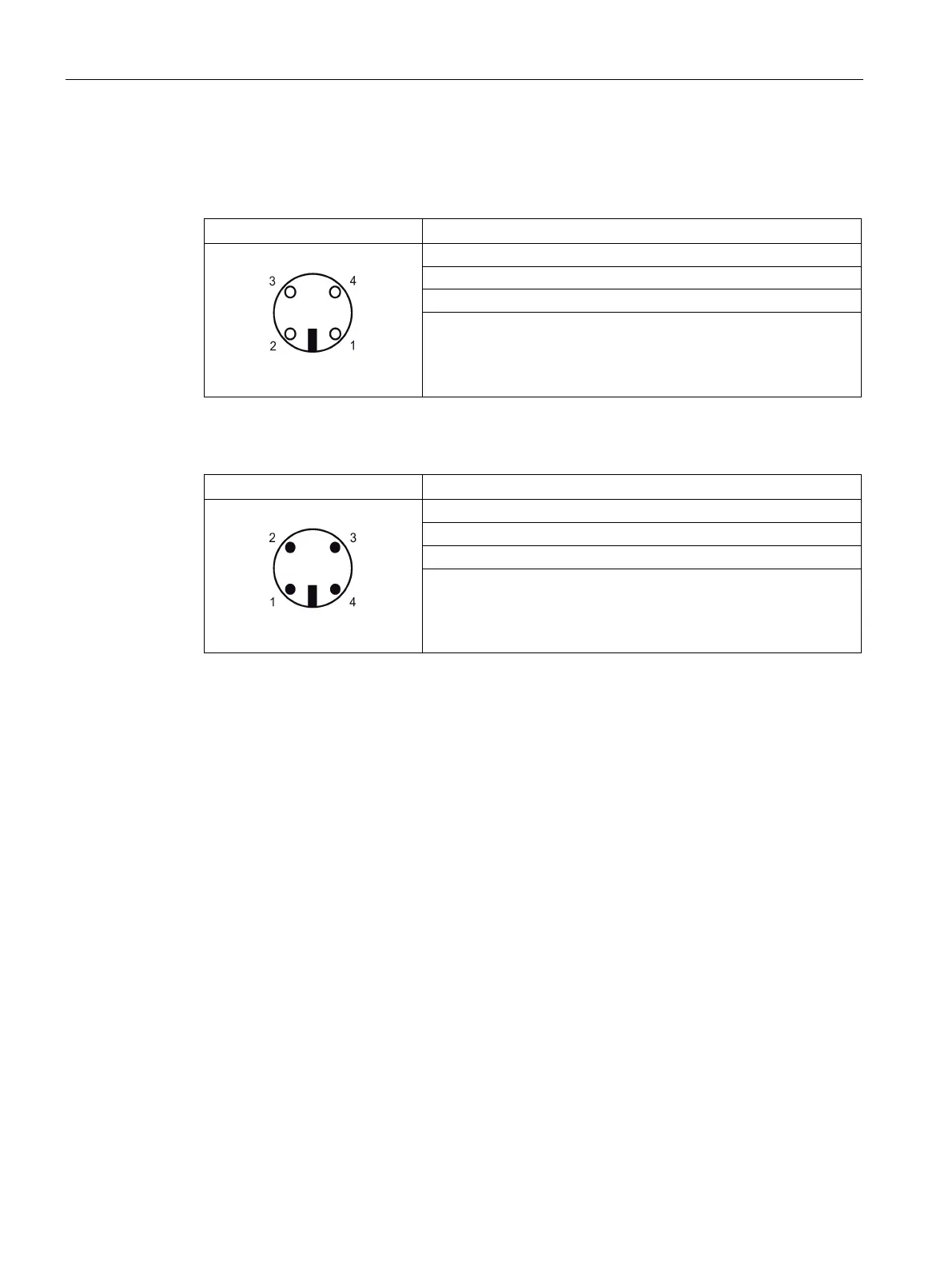

Table A- 7 Pin assignment for DC outputs
Assignment
(1) Ground (0V)
(2) +24 V DC
(3) +24 V DC
(4) Ground (0V)
Table A- 8 Pin assignment mains connector
Assignment
(1) 100 to 240 V AC
(2) n.c.
(3) 100 to 240 V AC
(4) n.c.
