Readers
5.5 SIMATIC RF250R
SIMATIC RF200
120 System Manual, 07/2015, J31069-D0227-U001-A9-7618
5.5.7
Dimension drawing

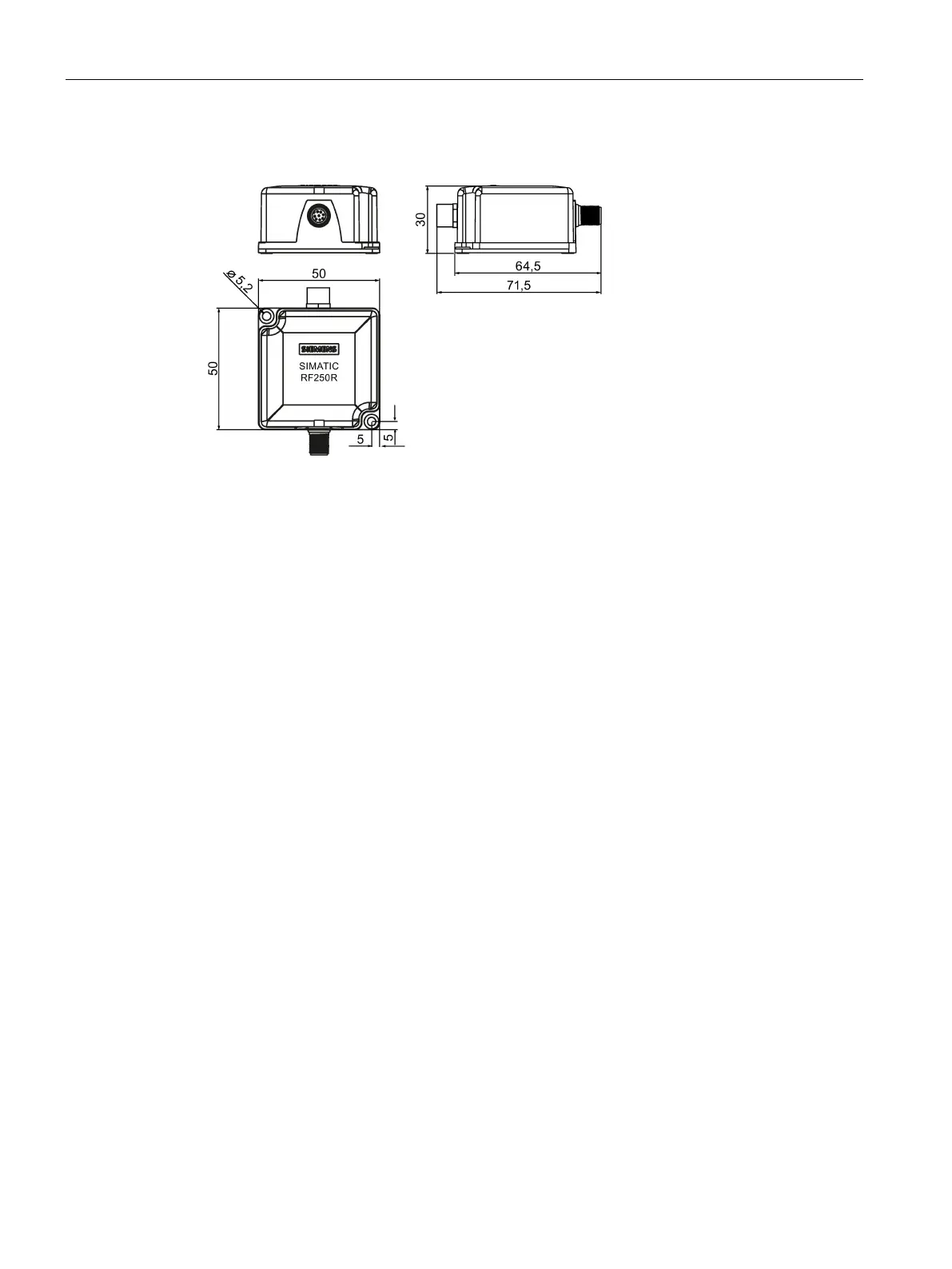

Figure 5-12 Dimension drawing RF250R
Dimensions in mm
