Siemens SIMATIC Ident System Manual

Transponder
7.12 MDS D324
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
231
7.12.3
Metal-free area
h
≥ 15 mm

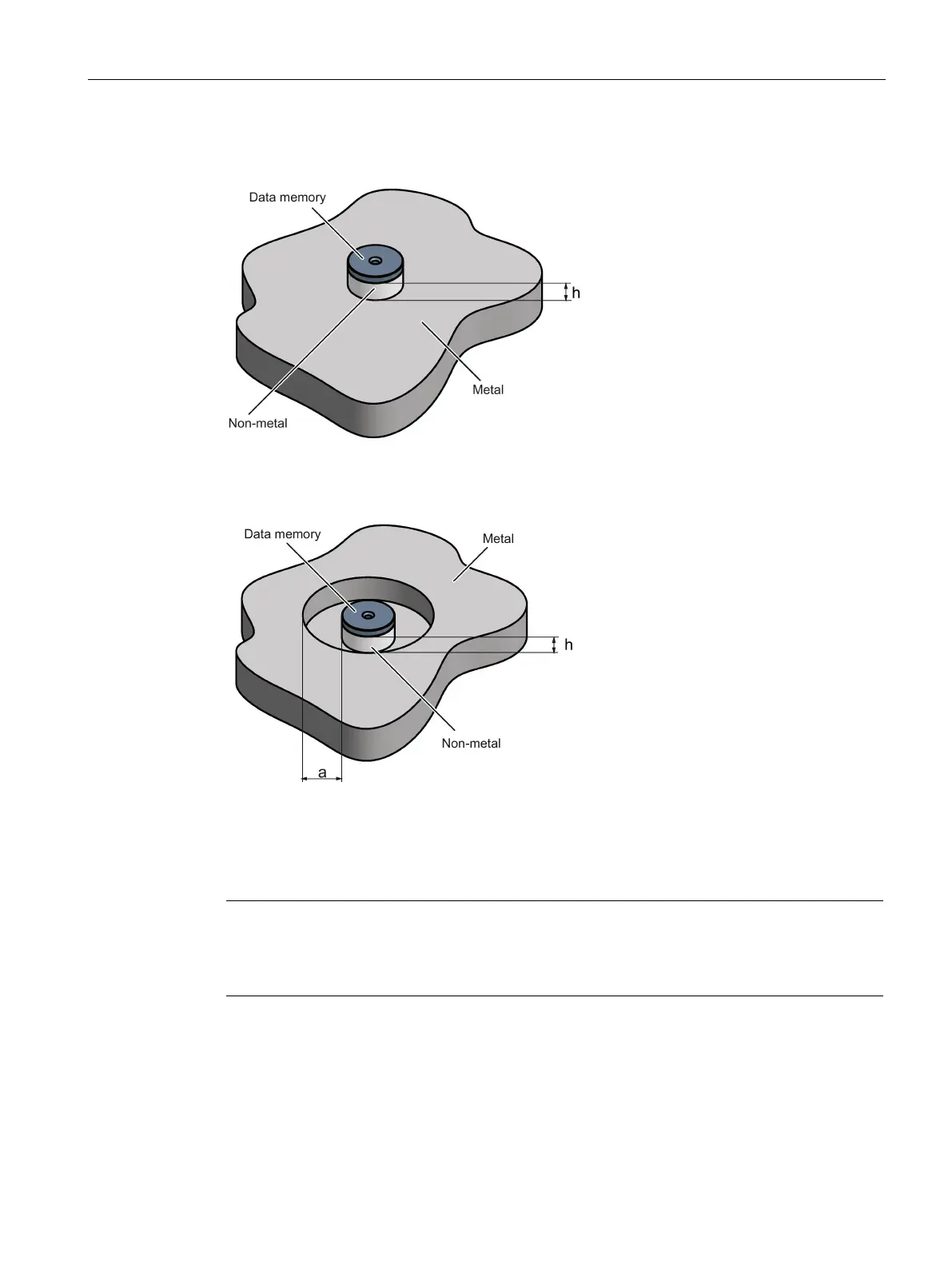

Figure 7-24 Mounting the MDS D324 on metal with spacer
h
≥ 15 mm
a
≥ 25 mm
Figure 7-25 Flush-mounting of the MDS D324 in metal with spacer
Note
If the minimum guide values (h) are not observed, a reduction of the field data
results. It is
possible to mount the MDS with metal screws (M3 countersunk head screws). This has no
tangible impact on the range.
