Antennas
6.8 ANT D10
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
185
6.8.7
Dimensional diagram

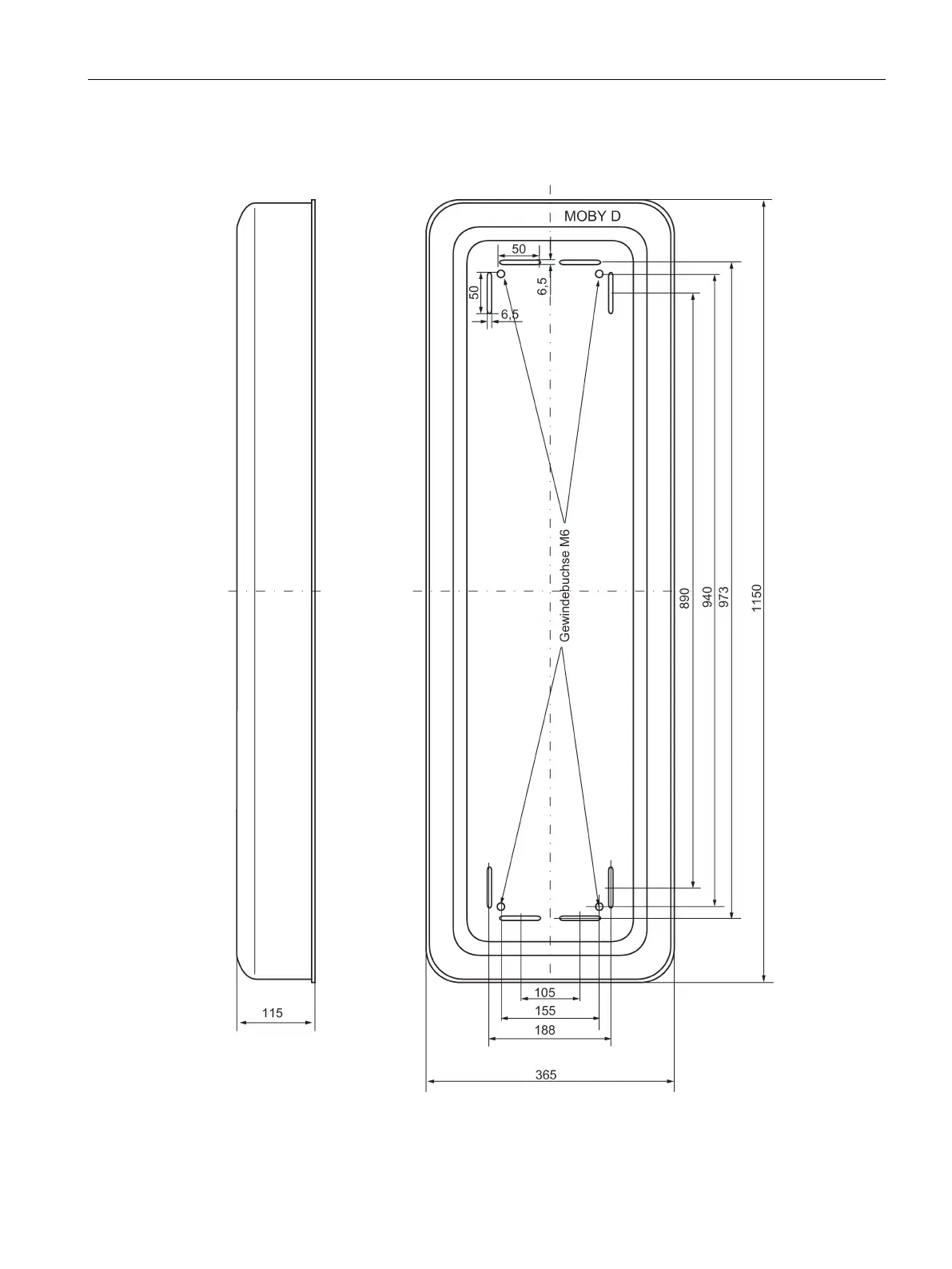

Figure 6-37 Dimension drawing for ANT D10
