Antennas
6.5 ANT 30
SIMATIC RF200
164 System Manual, 07/2015, J31069-D0227-U001-A9-7618
6.5.3
Transmission window
L
d
Length of the transmission window (= 60 mm)
S
a
Operating distance between antenna and transponder
S
g
Limit distance (maximum clear distance between upper surface of the reader and the antenna,
at which the transmission can still function under normal conditions)

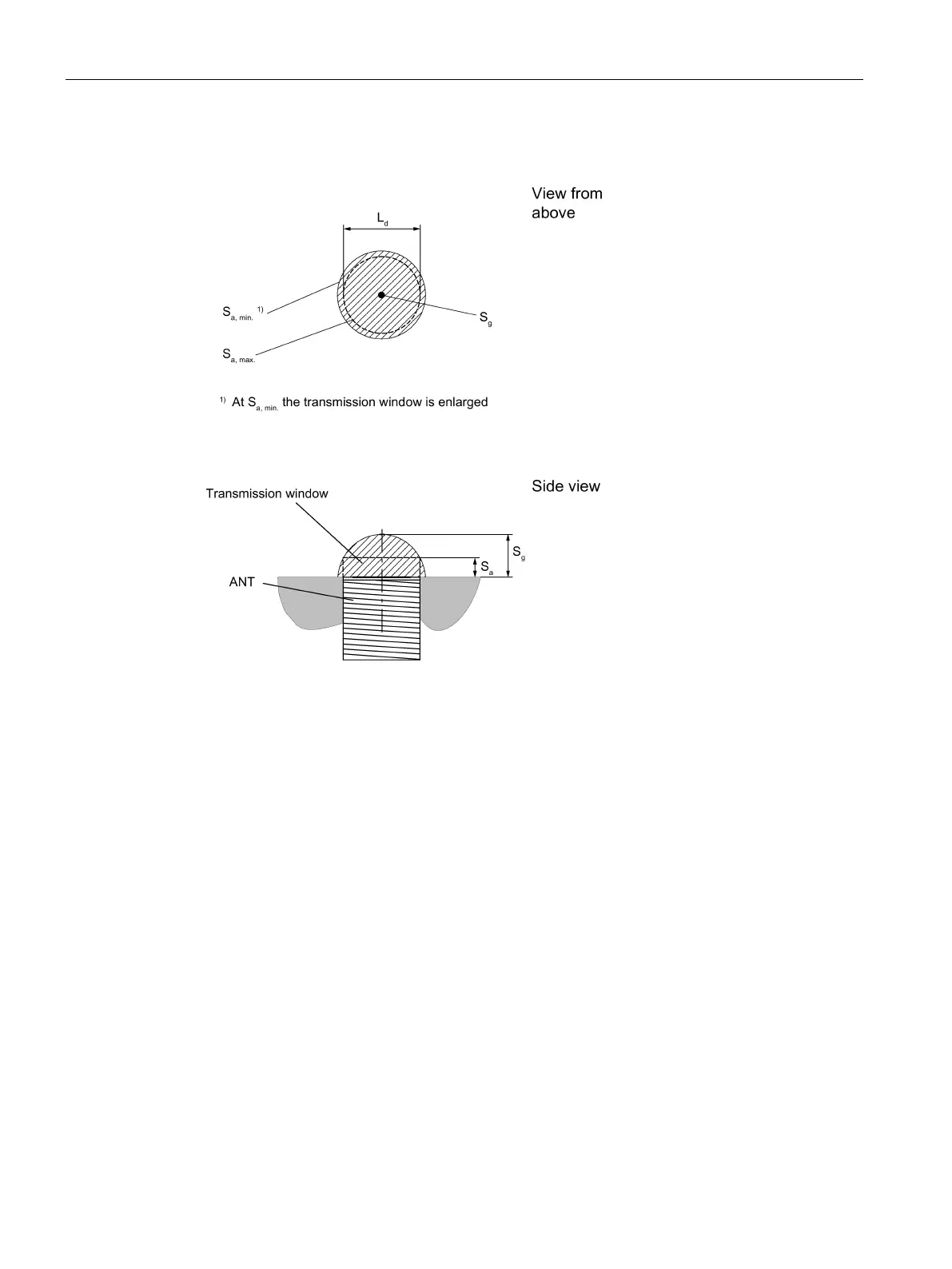

Figure 6-21 Transmission window ANT 30
