Antennas
6.6 ANT D5
SIMATIC RF200
170 System Manual, 07/2015, J31069-D0227-U001-A9-7618
6.6.3
Transmission window
L
d
Length of the transmission window (= 300 mm)
S
a
Operating distance between antenna and transponder
S
g
Limit distance (maximum clear distance between upper surface of the reader and the antenna,
at which the transmission can still function under normal conditions)

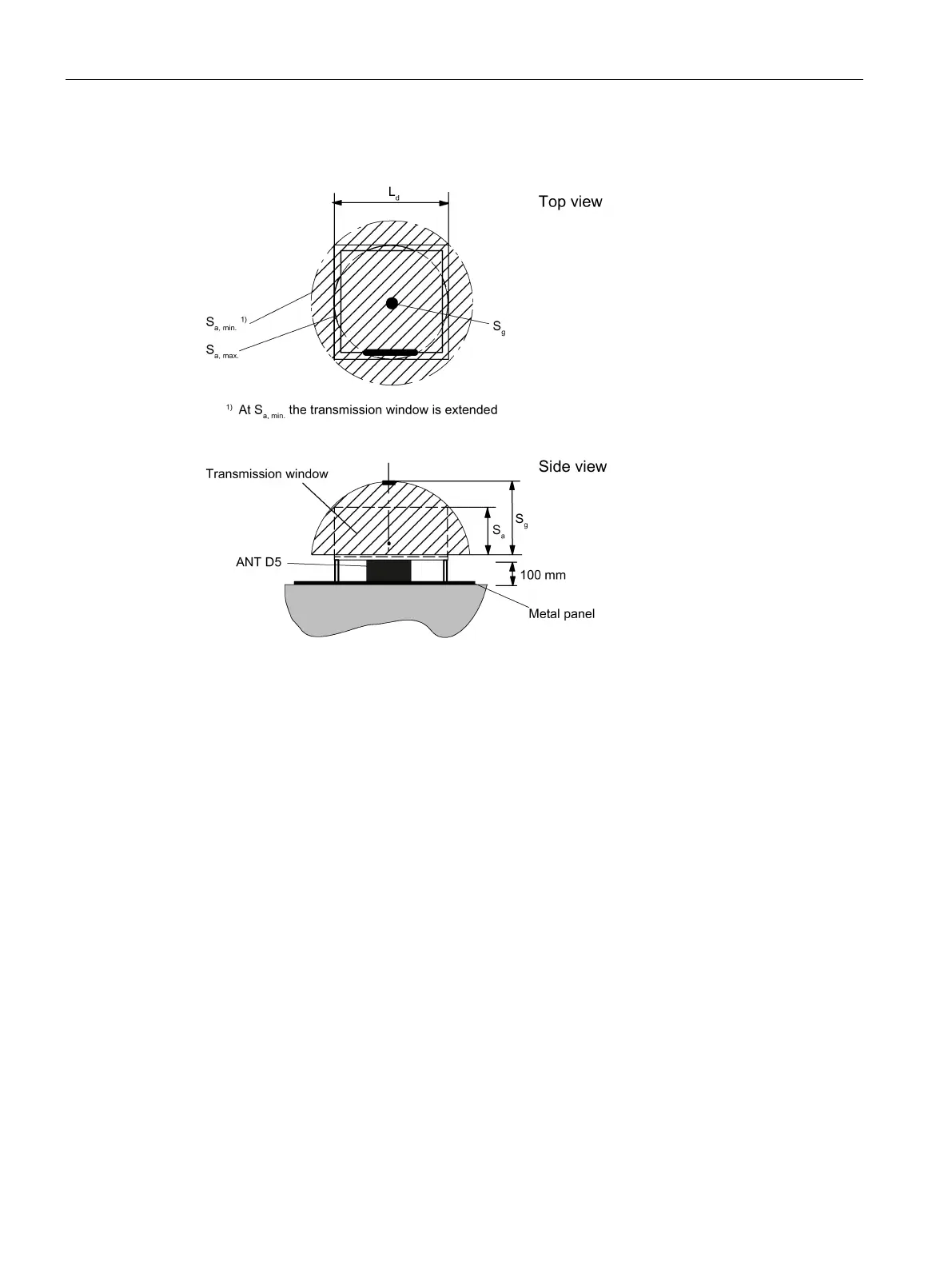

Figure 6-26 Transmission window for ANT D5
