Siemens SIMATIC Ident - Connectors

Appendix
A.2 Accessories
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
315
A.2.2.5
Connectors
●

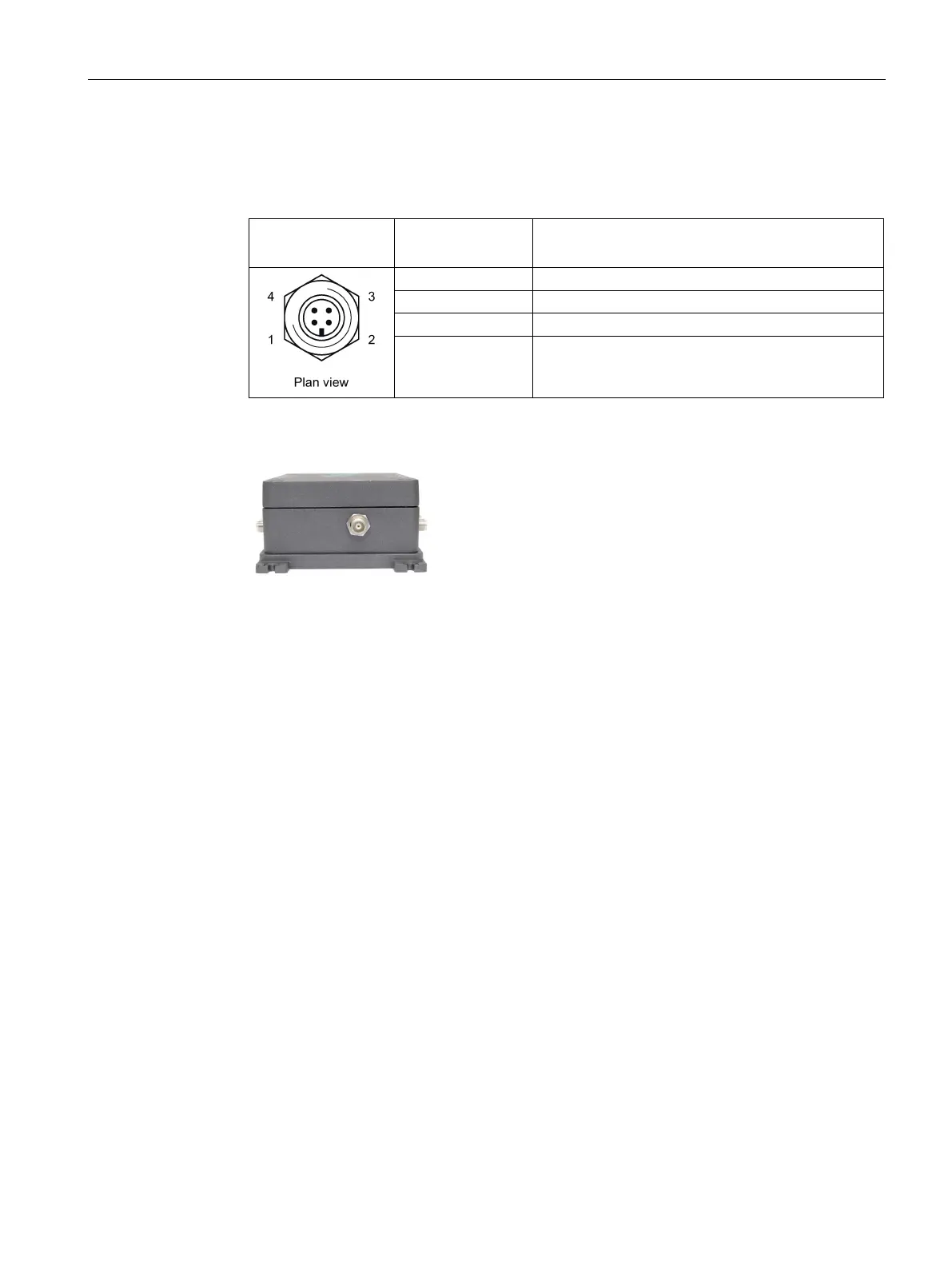

Power supply
Pin
Pin, casing side
4-pin M12
Assignment
RF260X
1
Ground (0 V)
2
+ 24 V
3
+ 24 V
4 Ground (0 V)
●
Reader connector ③
Figure A-1 Reader connector
If a longer antenna cable is required between the RF290R and SIMATIC RF260X
multiplexer, a 7.2 m long cable (e.g. 6GT2691-0DH72) must be used to extend it, see
Ordering data (Page 313).
The excess length must then be rolled up bifilar and fastened to minimize interference
from external sources.
●
Antenna outputs ② (OUT 1 to OUT 3 / OUT 4 to OUT 6)
