Transponder
7.14 MDS D400
SIMATIC RF200
242 System Manual, 07/2015, J31069-D0227-U001-A9-7618
7.14.3
Mounting on metal
Mounting on metal
It is possible to mount the MDS D400 on metal.
h
≥ 20 mm
â‘
Transponder
â‘¡
Metal
â‘¢
Non-metal

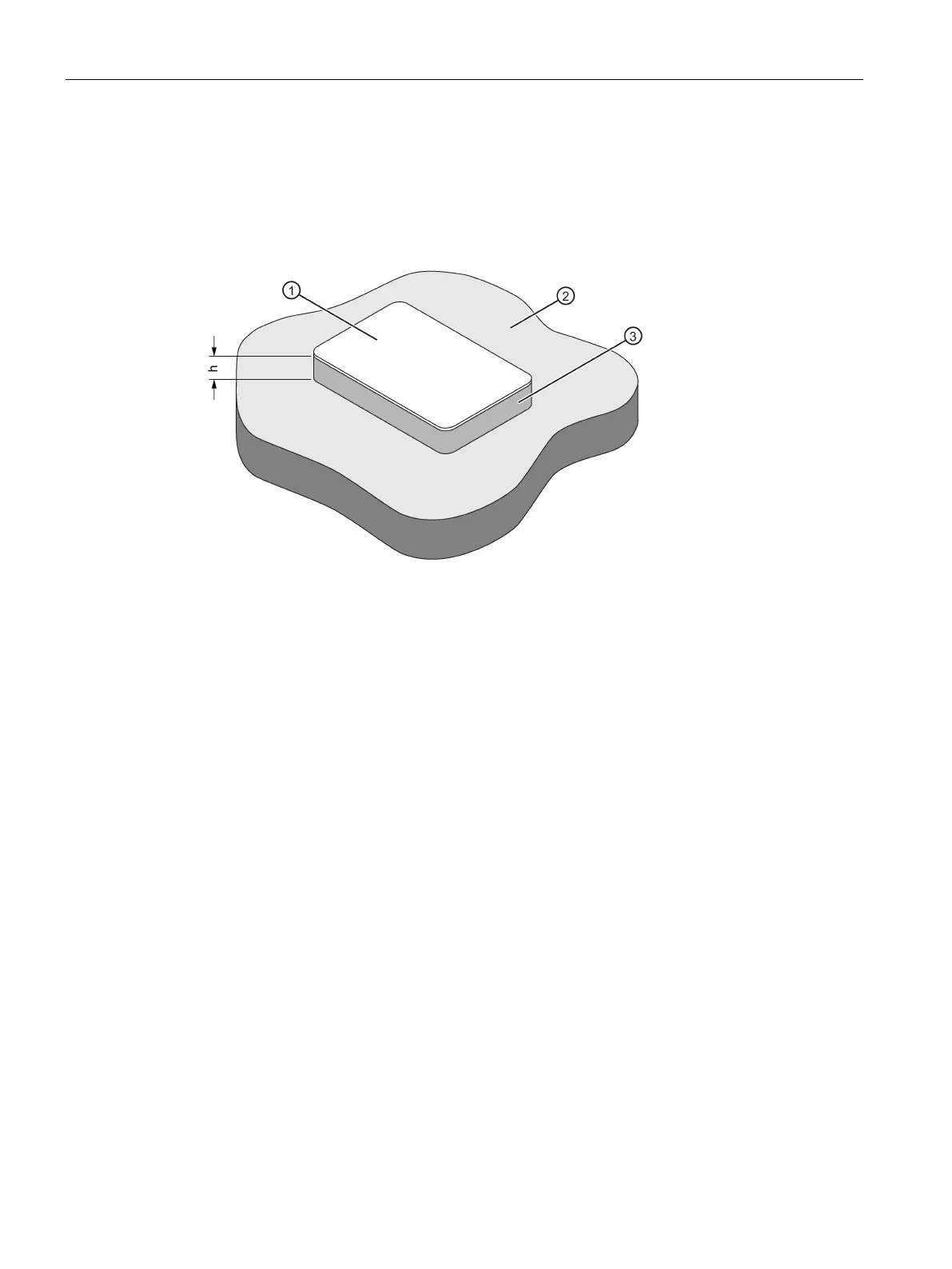

Figure 7-31 Mounting of the MDS D400 on metal with spacer
