Transponder
7.16 MDS D422
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
253
Permitted ambient conditions
• During operation • -25 to +85 ℃
• During transportation and storage • -40 to +100 ℃
Degree of protection to EN 60529
• IP68
2 hours, 2 bar, +20 °C
Shock-resistant to EN 60721-3-7 class 7M3
1)
Vibration-resistant to EN 60721-3-7, class 7M3
1)
Design, dimensions and weight
Type of mounting
• Glued
• 1 x transponder thread M20
≤ 1 Nm
1)
The values for shock and vibration are maximum values and must not be applied continuously.

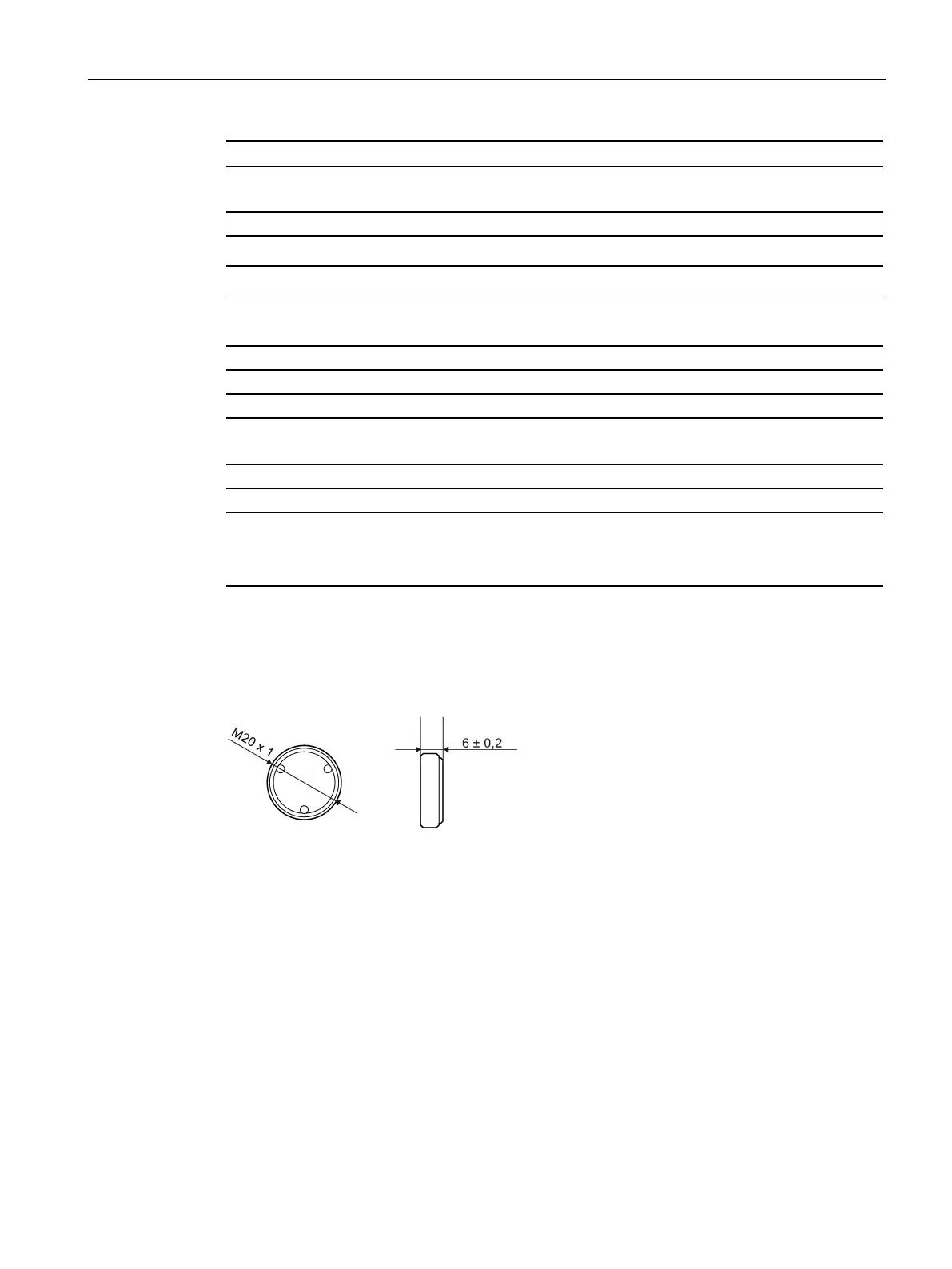

Figure 7-41 Dimensional drawing of MDS D422
