Antennas
6.3 ANT 12
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
155
Note
Extension of the data transmission time if distance values are undershot
If the distance values specified in the tables are undershot, it is possible that the inductive
fields will
be affected. In this case, the data transmission time can increase unpredictably or
a command is aborted with an error.
For this reason, please observe the values in the tables.
Minimum distances from transponder to transponder (without multitag mode)
MDS D421 / MDS D422 / MDS D428 / MDS
D460 / MDS D522 / MDS D528
≥ 60 mm ≥ 80 mm
D > 30 mm (with 2 antennas)
> 40 mm (with 3 antennas)

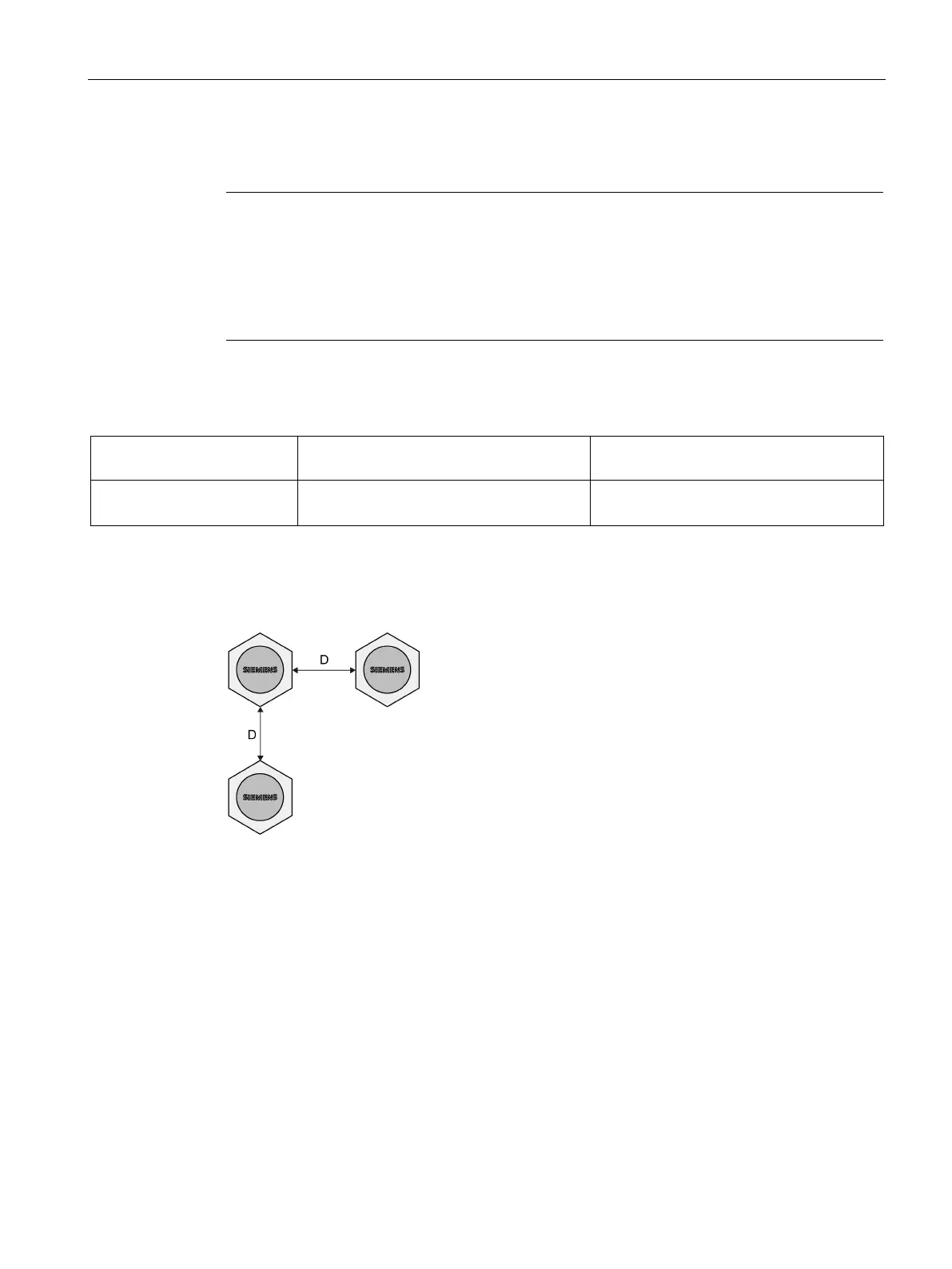

Figure 6-13 Minimum distance for ANT 12
