7.2 MDS D100
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
189
7.2.2
Ordering data
Table 7- 1 Ordering data for MDS D100
Article number
MDS D100
6GT2600-0AD10
Table 7- 2 Ordering data for MDS D100 accessory
Article number
Spacer
(in conjunction with fixing pocket 6GT2190-0AB00)
6GT2190-0AA00
Fixing pocket
(in conjunction with spacer 6GT2190-0AA00)
6GT2190-0AB00
Fixing pocket
(not suitable for fixing directly onto metal)
6GT2390-0AA00
7.2.3
Metal-free area
Direct mounting of the MDS D100 on metal is not allowed. A distance of ≥ 20 mm is
recommended. This can be achieved using the spacer 6GT2190-0AA00 in combination with
the fixing pocket 6GT2190-0AB00.
Mounting on metal
h
≥ 20 mm
①
Data memory
②
Metal
③
Non-metal

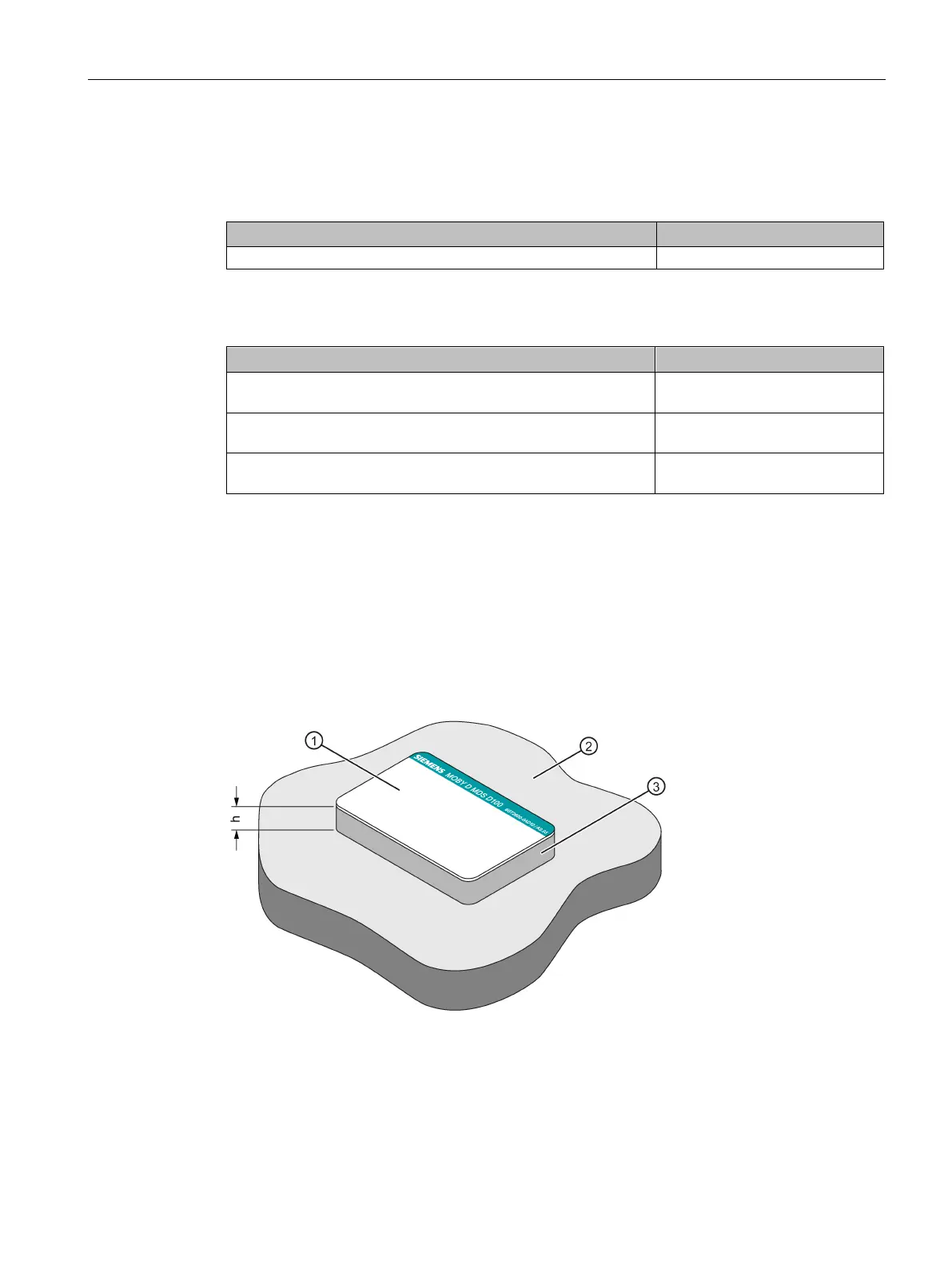

Figure 7-2 Mounting of the MDS D100 on metal with spacer
