RF200 system planning
4.3 Installation guidelines
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
65
Transponder
RF250R with ANT 30
antenna without met-
al
antenna flush-
mounted in metal
(all round 20 mm)
MDS D528
without metal
100
90
on metal, distance 0 mm
100
90
1)
Mounting the transponder on or in metal is only possible with the appropriate spacer or if there is
adequate clearance to the metal.
2)
Values of > 100 % related to non metal surroundings can occur if transponders were developed
specifically for mounting in/on metallic surroundings.
4.3.4.5
RF260R
The RF260R can be flush-mounted in metal. Please allow for a possible reduction in the field
data values.

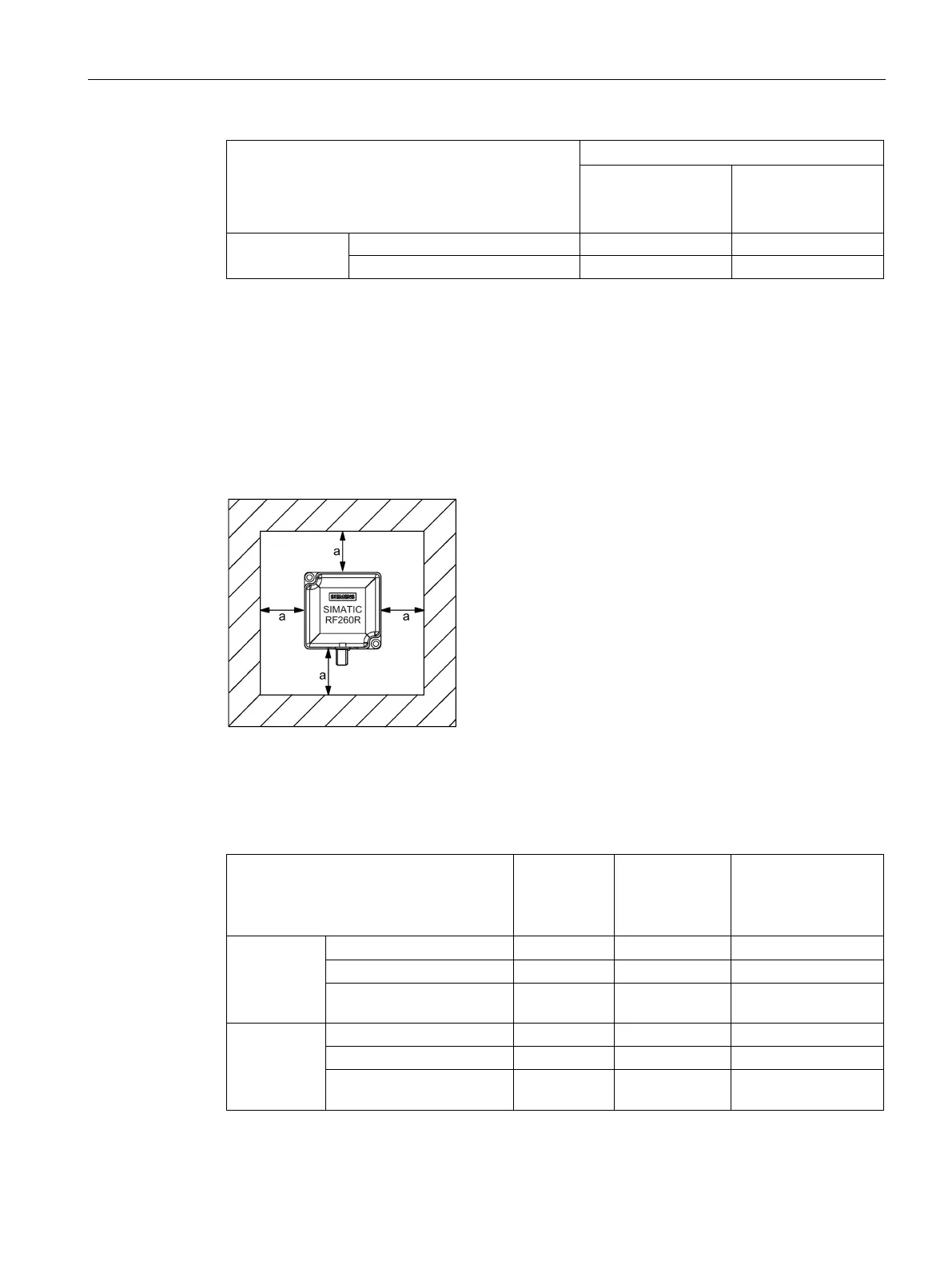

Figure 4-13 metal-free space for RF260R
To avoid any impact on the field data, the distance a should be ≥ 20 mm.
Table 4- 24 Reduction of field data due to metal, range as %: Transponder and RF260R
Transponder
Reader with-
out direct
metal influ-
ence
Reader on met-
al
(metal plate)
Reader flush-
mounted in metal
(all round 20 mm)
MDS D100
1)
without metal
100
85
65
on metal, distance 20 mm
70
65
50
flush-mounted in metal;
distance all round 20 mm
65 50 40
MDS D124
1)
without metal
100
93
75
on metal, distance 15 mm
95
85
70
flush-mounted in metal;
distance all round 25 mm
78 75 65
