Siemens SIMATIC Ident - Dimension Drawing

Transponder
7.2 MDS D100
SIMATIC RF200
192 System Manual, 07/2015, J31069-D0227-U001-A9-7618
6GT2600-0AD10
Design, dimensions and weight
Dimensions (L x W x H)
85.6 x 54 x 0.9 mm
Weight
5 g
Type of mounting
• Fixing pocket
• Glued
1)
The values for shock and vibration are maximum values and must not be applied continuously.
7.2.5
Dimension drawing
Dimensions in mm
1)
Dimensions for mounting holes

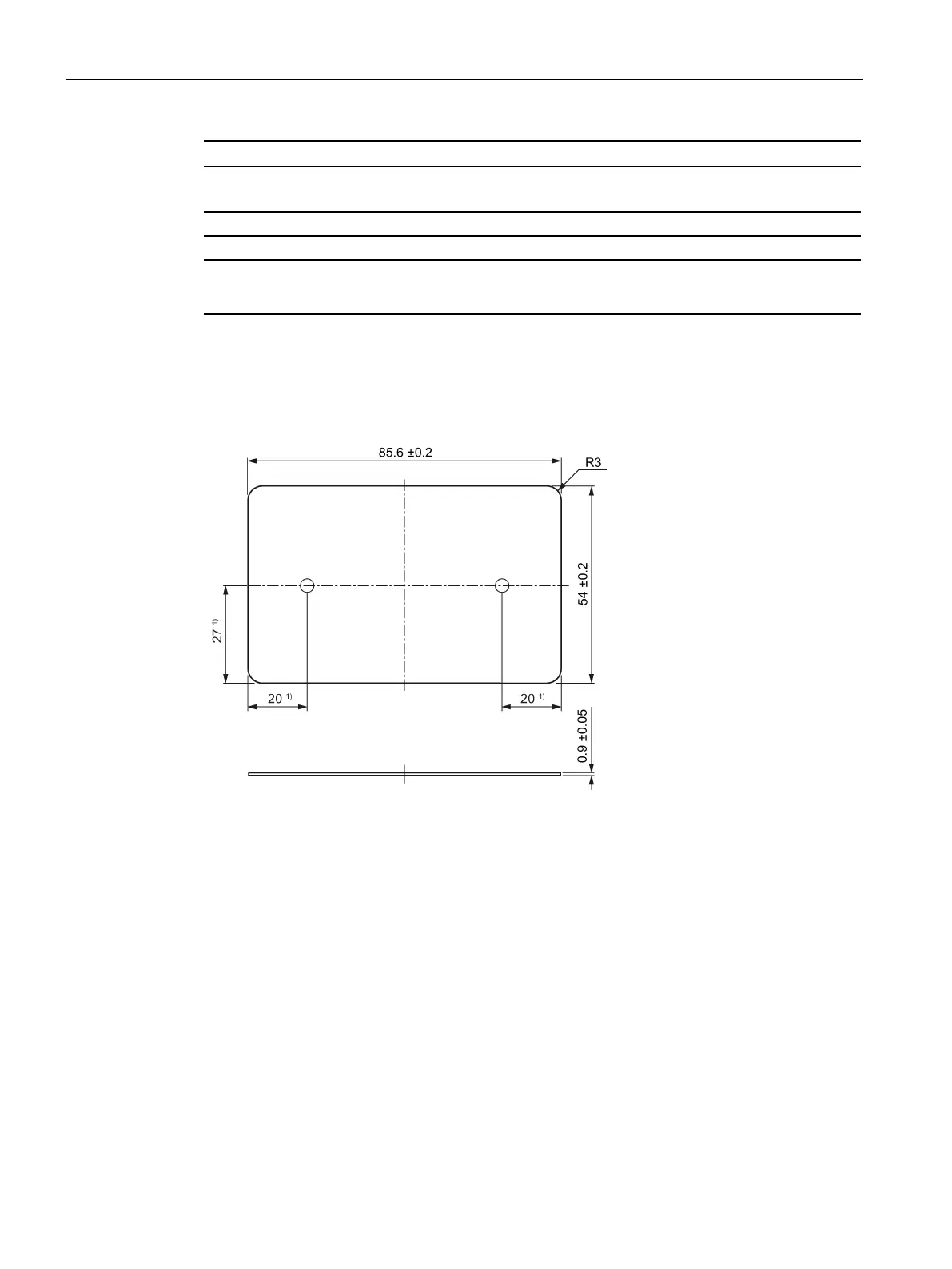

Figure 7-4 MDS D100 dimension drawing
