Antennas
6.7 ANT D6
SIMATIC RF200
System Manual, 07/2015, J31069-D0227-U001-A9-7618
177
6.7.4
Metal-free area
Flush-mounted in metal

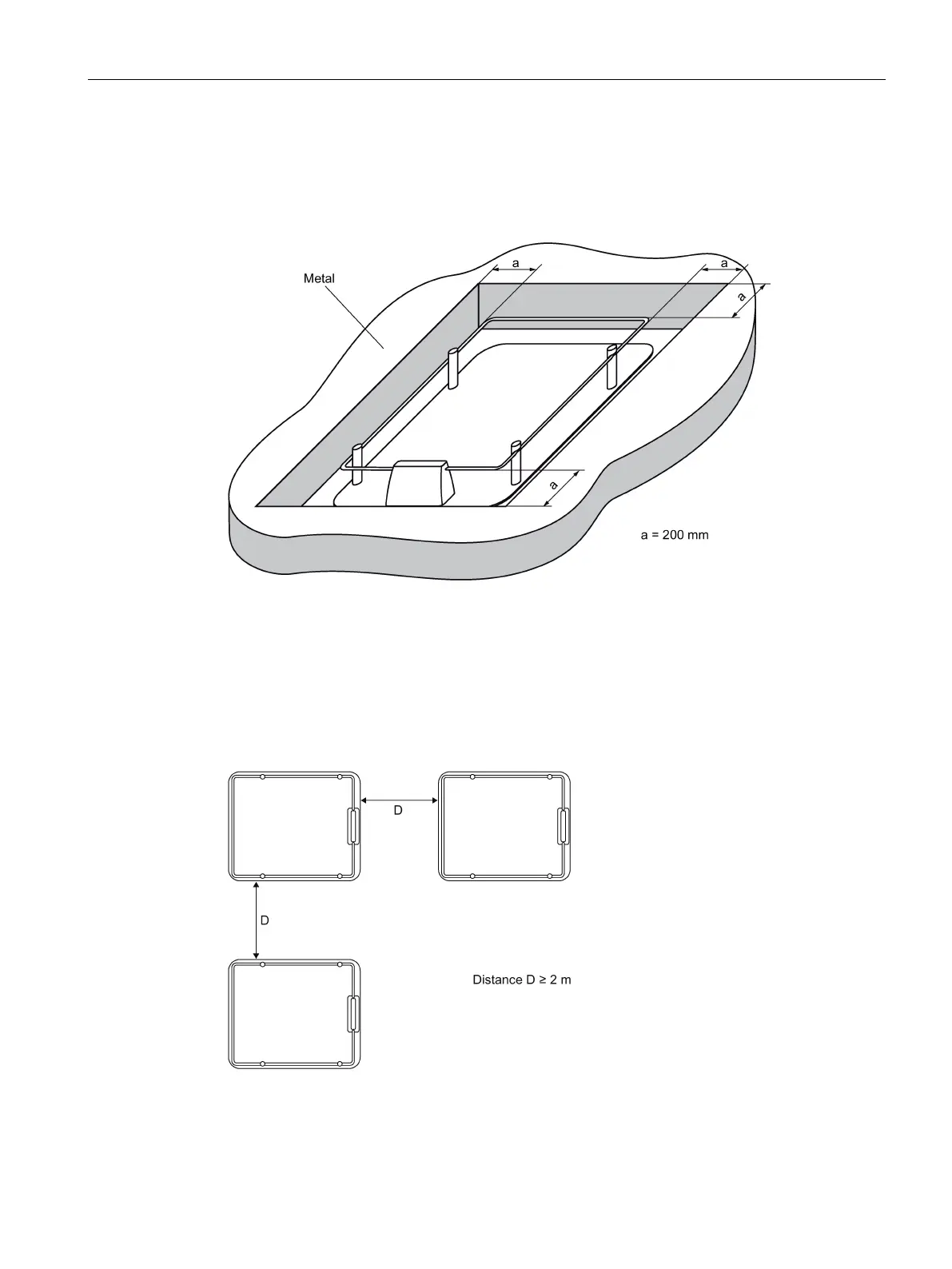

Figure 6-31 Metal-free area for ANT D6
6.7.5
Minimum spacing
Definition of distance D
Figure 6-32 Distance D: ANT D6
