STONEX R2 User Manual

STONEX R2
143

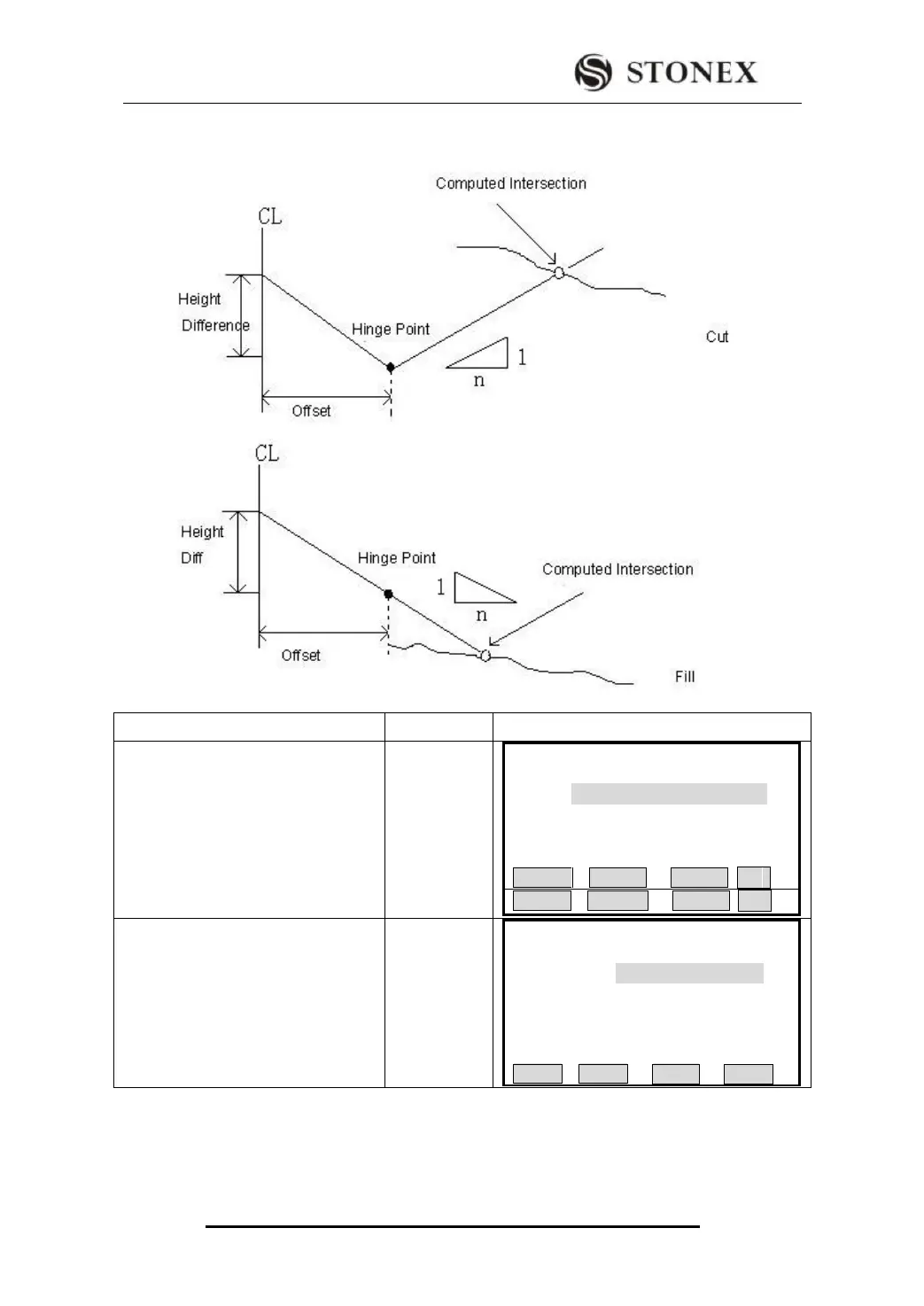

Dig/fill is decided via the estimated height of hinge point. If the height is above the
hinge point, the dig slope is used; otherwise the fill slope is used.
OPERATIONAL STEPS
OPERATION
DISPLAY
①Input (or select) the side chainage to
be slope staked out. Press [F4] (↓) to
turn to Key Page 2, and press [F1]
(SLOPE) to start slope stake-out .
[F4]
[F1]
【Alignment S-O】
Chain.： 100.000 m
Offset ： 0.000 m
HtDiff： 0.000 m
R.HT： 1.598 m
STAKE L_OFFS R_OFFS ↓
SLOPE +CHAIN -CHAIN |←
② Input the ratio of left and right
slopes to be filled (or digged). After
finishing inputting one item, press
[ENT]. When all data are input, select
the left (or right) slope to be staked
out.
【Slope Stake Out】
(1：n)LEFT
Cut ： 1.350
Fill ： 1.000
(1: n)RIGHT
Cut ： 1.200
Fill ： 1.650
LEFT RIGHT
