STONEX R2
121

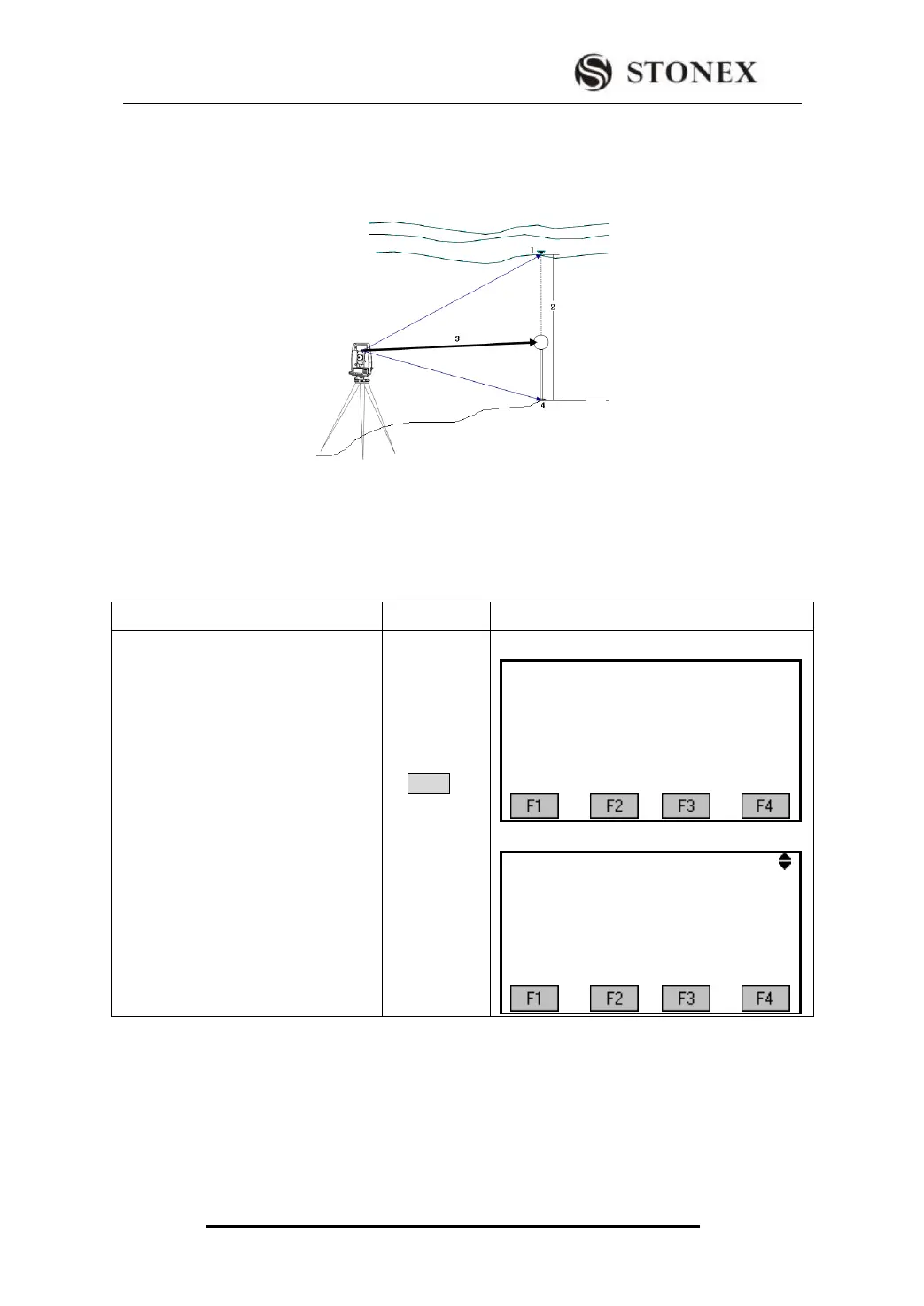

5.11 REMOTE HEIGHT MEASUREMENT (REM)
If the prism cannot be put at the point to be measured, user can firstly collimate base
prism below it and measure the horizontal distance. Then collimate the remote point to
calculate the vertical difference.
1: Target point (remote point) 2:Height difference
3: Slope distance 4:Base point
Known prism height (Example: prism height (h) =1.500m)
OPERATIONAL STEPS
OPERATION
DISPLAY
①In Programs menu, press [PAGE] to
turn to Page 2, and press [F3] to start
Remote Height measurement.
PAGE
[F3]
【Programs 1/3 ▼
F1 Surveying (1)
F2 Stake Out (2)
F3 Free Station (3)
F4 COGO (4)
【Programs】 2/3
F1 Tie Distance (1)
F2 Area(Plan) (2)
F3 Remote Height (3)
F4 Reference Line/Arc (4)
