STONEX R2 User Manual

STONEX R2
110
re-input the data.
‴1) There are four methods to input the known PtID. Please refer to step ② of the last section
“5.8.1.1Traverse”.
‴2) The stake-out operation of is similar to that of Traverse, which has been introduced previously.
Please refer to “5.8.1.1 Traverse”.

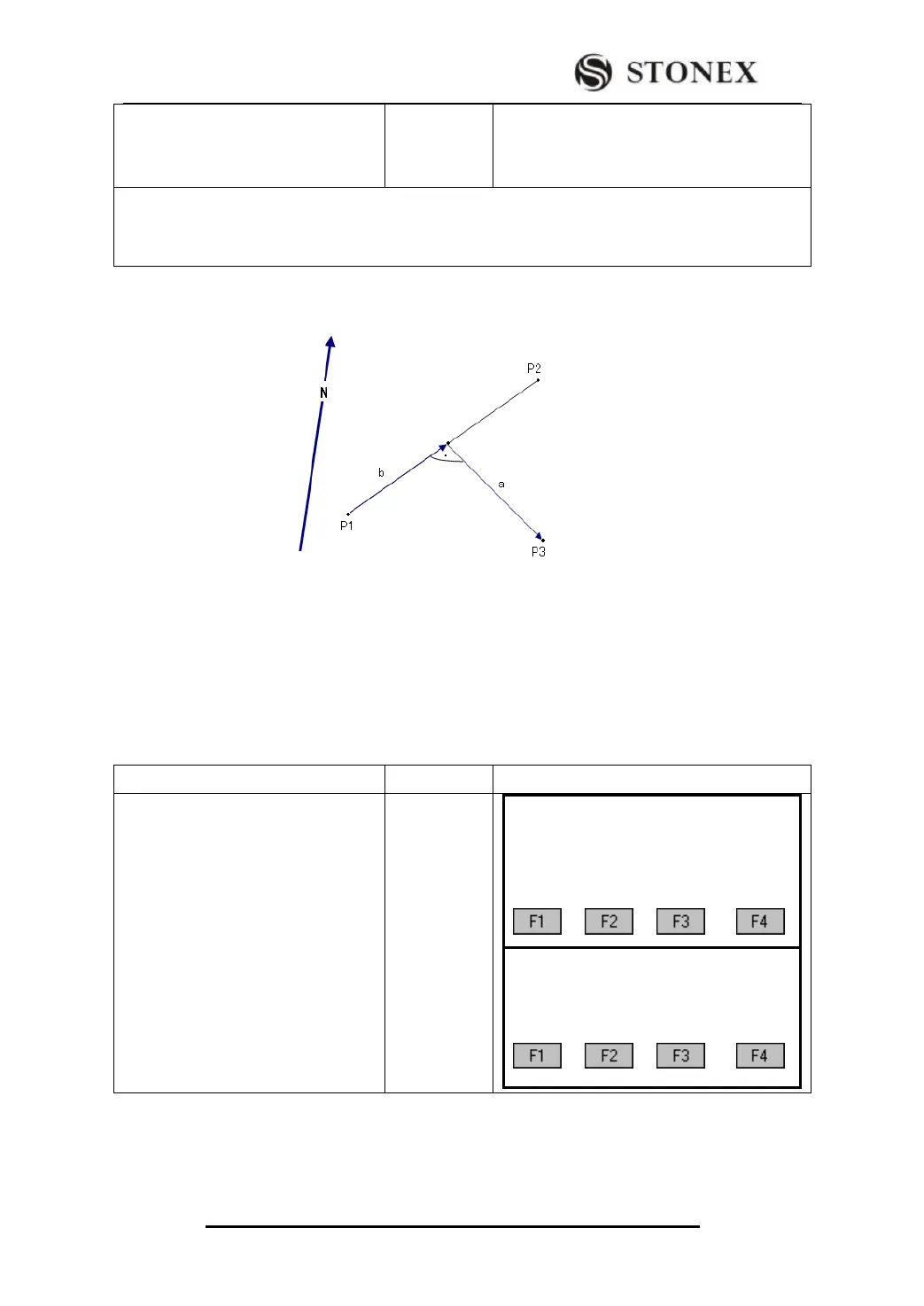

5.8.3.2 Point-Offset
The known data: P1 Baseline start point
P2 Baseline end point
a Difference in length/ abscissa (HD)
b Lateral deviation / ordinate (Offset)
The unknown data: P3 Lateral point
OPERATIONAL STEPS
OPERATION
DISPLAY
① Press [F3] in COGO Main Menu,
and press [F2] in Offset menu to enter
into Point-Offset function. Define the
baseline first.
[F3]
[F2]
【COGO Main Menu】
F1 Inverse & Traverse
F2 Intersections
F3 Offset
F4 Extention
【Offset】
F1 Distance - Offset
F2 Point- Offset
