STONEX R2 User Manual

STONEX R2
103
⑤Input the azimuth from P2 to P3,
and press [ENT].
Input AZ2
+
[ENT]
【Bearing-Bearing】
Input data!
Point 1： 10
AZ : 45°00′00″
Point 2： 11
AZ： 315°00′00″
MEAS CALC SEARCH ↓
LIST ENH ∣←
⑥Press [F2] (CALC) to display the
result.
To stake out this point, input new PtID,
and press [F1] to start staking out.‴2)
To save the data, press [F4].
To quit result menu, press [ESC] to
return to inputting data menu, and
re-input the data.
[F2]
【COGO New Point 】
New Point： --- --- ---
X/N ： 50.000 m
Y/E ： 50.000 m
STAKE RECORD
‴1) There are four methods to input the known PtID. Please refer to step ② of the last section
“5.8.1.1Traverse”.
‴2) The stake-out operation is similar to that of Traverse, which has been introduced previously. Please
refer to “5.8.1.1 Traverse”.

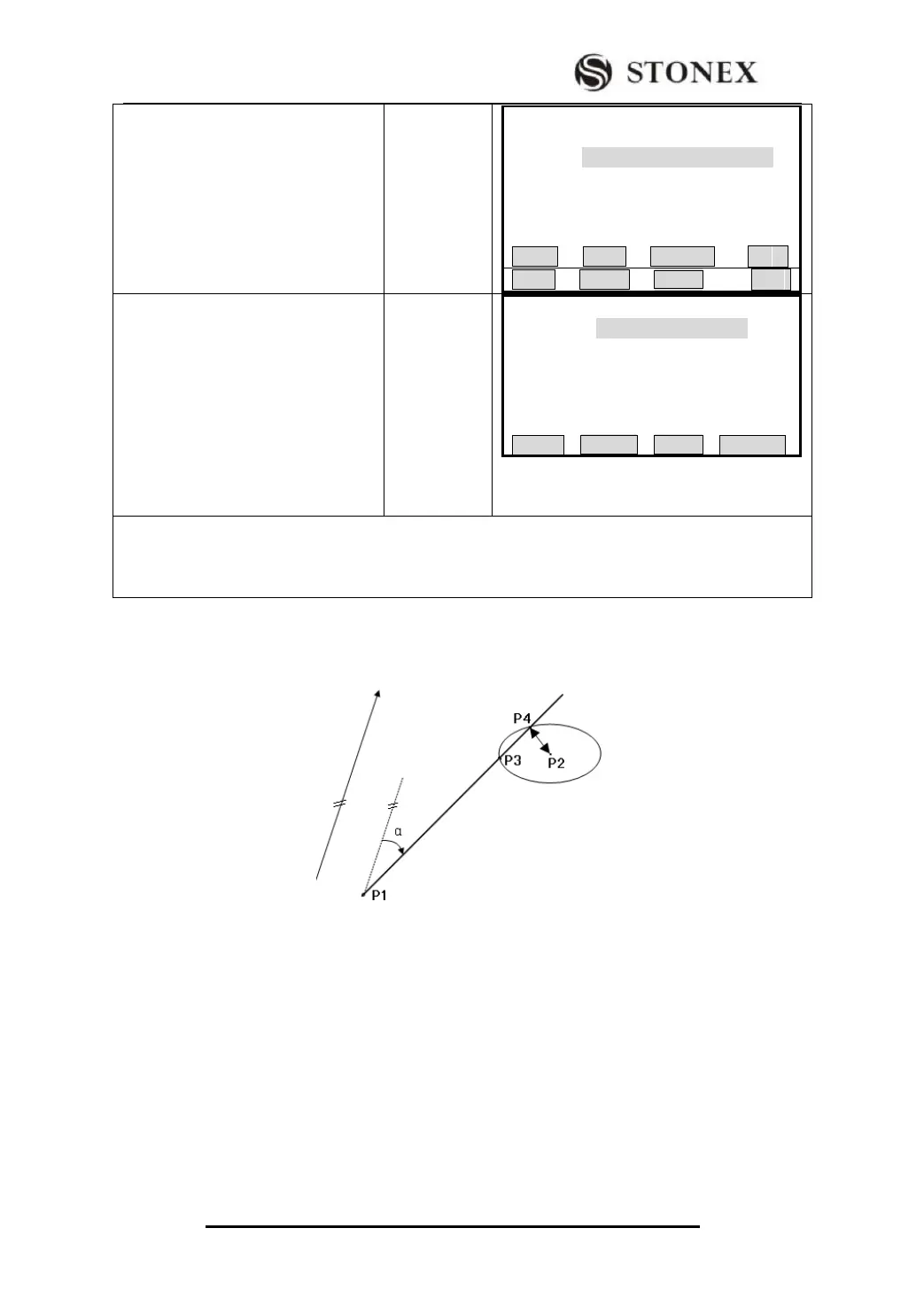

5.8.2.2 Bearing-Distance Intersection
The known data: P1 The first known point
P2 The second known point
α Direction from P1 to P3 and P4
r Radius, viz distance from P2 to P3 or P4
The unknown data: P3 The first COGO point
P4 The second COGO point
