5.6.2 Polar Stake Out

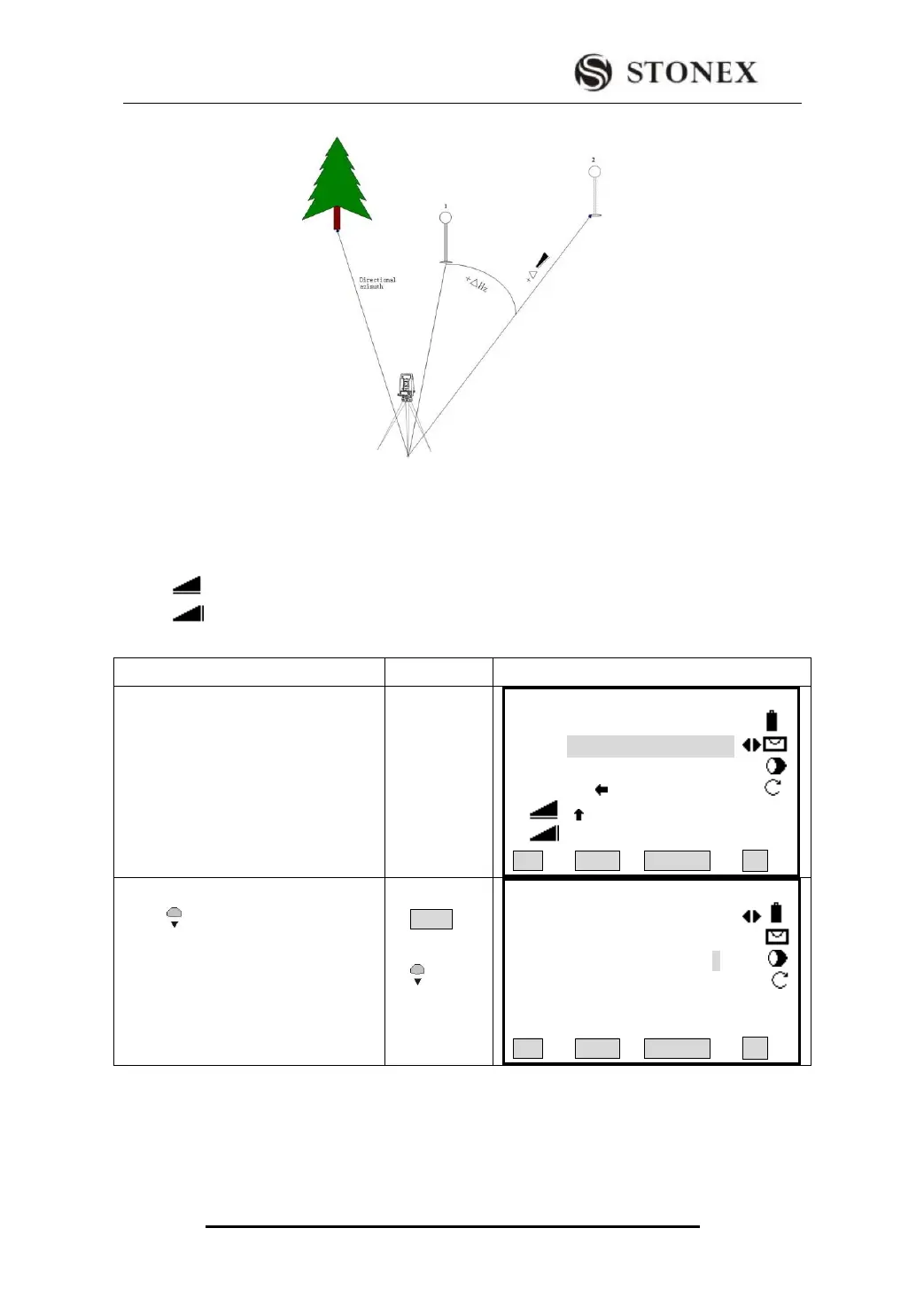

In the picture, 1: Actual 2: Point to be staked out
Normal indication of polar stake out offsets.
△Hz Angle offset: positive if point to be staked out is to the right of the actual
direction.
△ Longitudinal offset: positive if point to be staked out is further away.
△ Height offset: positive if point to be staked out is higher than measured point.
OPERATIONAL STEPS
OPERATION
DISPLAY
① Set the series of data of stake-out
point. From point list to select the
point to be staked out. You can
also call it up from the job by
inputting the stake-out PtID in Pt
Search menu.
【Stake Out 】 1/3 ▼
FIND : *
PtID： 5
Type： Known
△Hz ： -85°51′31″
△ ： 2.361 m Ⅰ
△ ： ---.--- m
All DIST RECORD ↓
②Press [PAGE] to turn to Page 2, and
press to move to R.HT item.
Input the prism height.
PAGE
+
Input R.HT
【Stake Out 】 2/3 ▼
PtID ： 5
Type： Meas.
R.HT ： 2.000 m
△L Off： ---.--- m
△T Off: ---.--- m Ⅰ
△H ： ---.--- m
All DIST RECORD ↓
