84

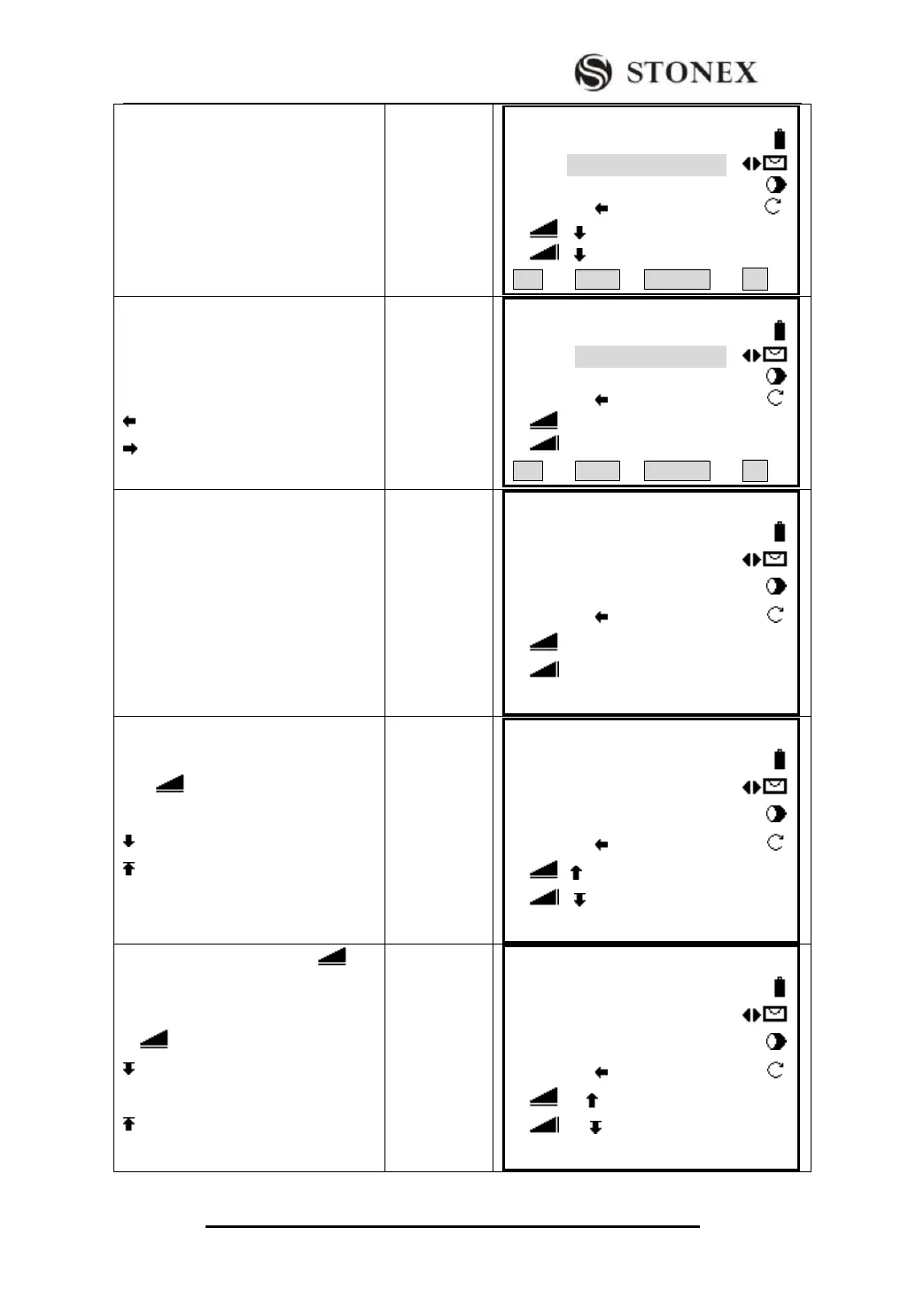

③ Collimate the prism, press [F2]
(DIST) to start measurement and
calculate the stake-out factor offset
between measurement point and
stake-out point.
[F2]
【Stake Out 】 1/3 ▼
FIND : *
PtID： 5
Type： Known
△Hz ： -85°51′31″
△ ： -0.082 m Ⅰ
△ ： -0.019 m
All DIST RECORD ↓
④Rotate the telescope until the angle
difference is 0°00′00″ and notify the
surveyor to move the prism.
²Arrowhead means：
：Move the prism left to the station.
：Move the prism right to the station.
【Stake Out 】 1/3 ▼
FIND : *
PtID： 5
Type： Known
△Hz ： 0°00′00″
△ ： 2.055 m Ⅰ
△ ： -0.019 m
All DIST RECORD ↓
⑤ Set the prism at 0° direction of
telescope and collimate it. Press [F2]
(DIST) to start measurement and
calculate the stake-out factor offset
between the prism and stake-out point.
[F2]
【Stake Out 】 1/3 ▼
FIND : *
PtID： 5
Type： Known
△Hz ： 0°00′00″
△ ： 2.055 m Ⅰ
△ ： -0 .019 m
All DIST RECORD ↓
⑥Move the prism northing or southing
according to the arrowhead until the
“△ ”displaying 0 m.
²Arrowhead means：
: Southing the prism to the station
: Northing the prism to the station.
【Stake Out 】 1/3 ▼
FIND : *
PtID： 5
Type： Known
△Hz ： 0°00′00″
△ ： 0.000 m Ⅰ
△ ： -0 .019 m
All DIST RECORD ↓
⑦When both △ Hz and △ are
zero, it implies that the current prism
point is the stake-out point.
△ means the fill/dig data.
: To dig. The value is the depth to
dig.
：To fill. The Value is the height to
fill.
【Stake Out 】 1/3 ▼
FIND : *
PtID： 5
Type： Known
△Hz ： 85°51′31″
△ ： 0.000 m Ⅰ
△ ： -0 .019 m
All DIST RECORD ↓
