STONEX R2 User Manual

STONEX R2
180
4. Adjust three adjustment screws for several times until circular bubble is
centered;
5. The force power fixing three adjustment screws must be consistent when circular
level is centered at last.

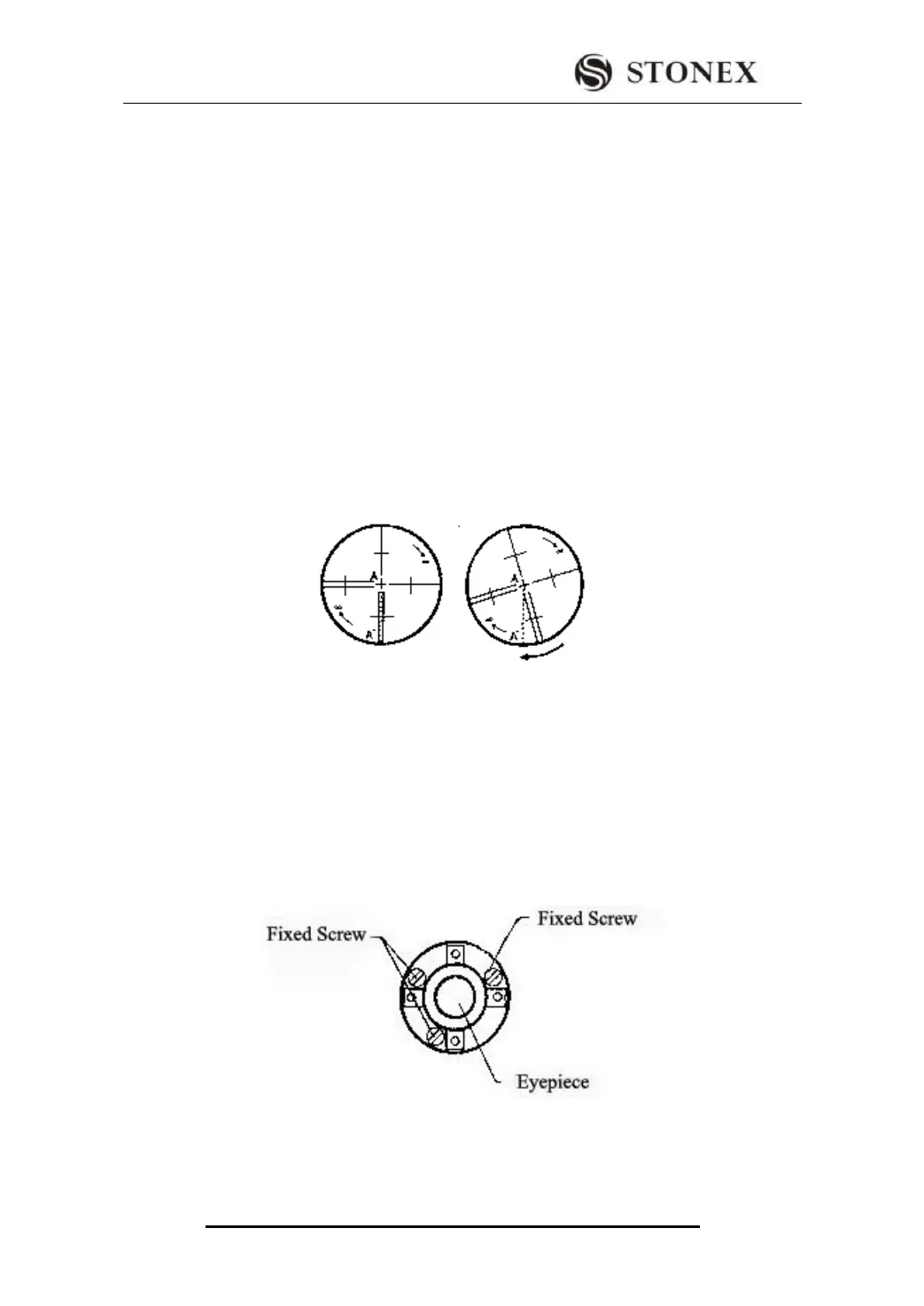

13.3 INCLINATION OF RETICLE
Check:
1. Sight object A through the telescope and lock the horizontal and vertical clamp screws.
2. Move object A to the edge of the field of view with the vertical tangent screw (point A′)
3. Adjustment is not necessary if object A moves along the vertical line of the reticle and
point A′ still in the vertical line.
As illustrated，Ａ′offsets from the center to the cross hair tilts, then need to adjust the
reticle.
Adjust
1. If the object A does not move along with the vertical line, firstly remove the eyepiece
cover to expose the three or four reticle adjusting screws.
2. Loosen all the reticle adjusting screws uniformly with an adjusting pin. Rotate the
reticle around the sight line and align the vertical line of the reticle with pointA‟.
3. Tighten the reticle adjusting screws uniformly. Repeat the inspection and adjustment to
see if the adjustment is correct.
4. Replace the eyepiece cover.
