STONEX R2 User Manual

STONEX R2
108
④Press [F2] (CALC) to display the
result.
To stake out this point, input new PtID,
and press [F1] to start staking out .‴2)
To save the data, press [F4].
To quit the result menu, press [ESC] to
return to data inputting menu, and
re-input the data.
[F2]
【COGO New Point】
New Point : --- --- ---
X/N ： 40.000 m
Y/E ： 40.000 m
STAKE RECORD
‴1) There are four methods to input the known PtID. Please refer to step ② of the last section
“5.8.1.1Traverse”.
‴2) The stake-out operation is similar to that of Traverse, which has been introduced previously. Please
refer to “5.8.1.1 Traverse”.

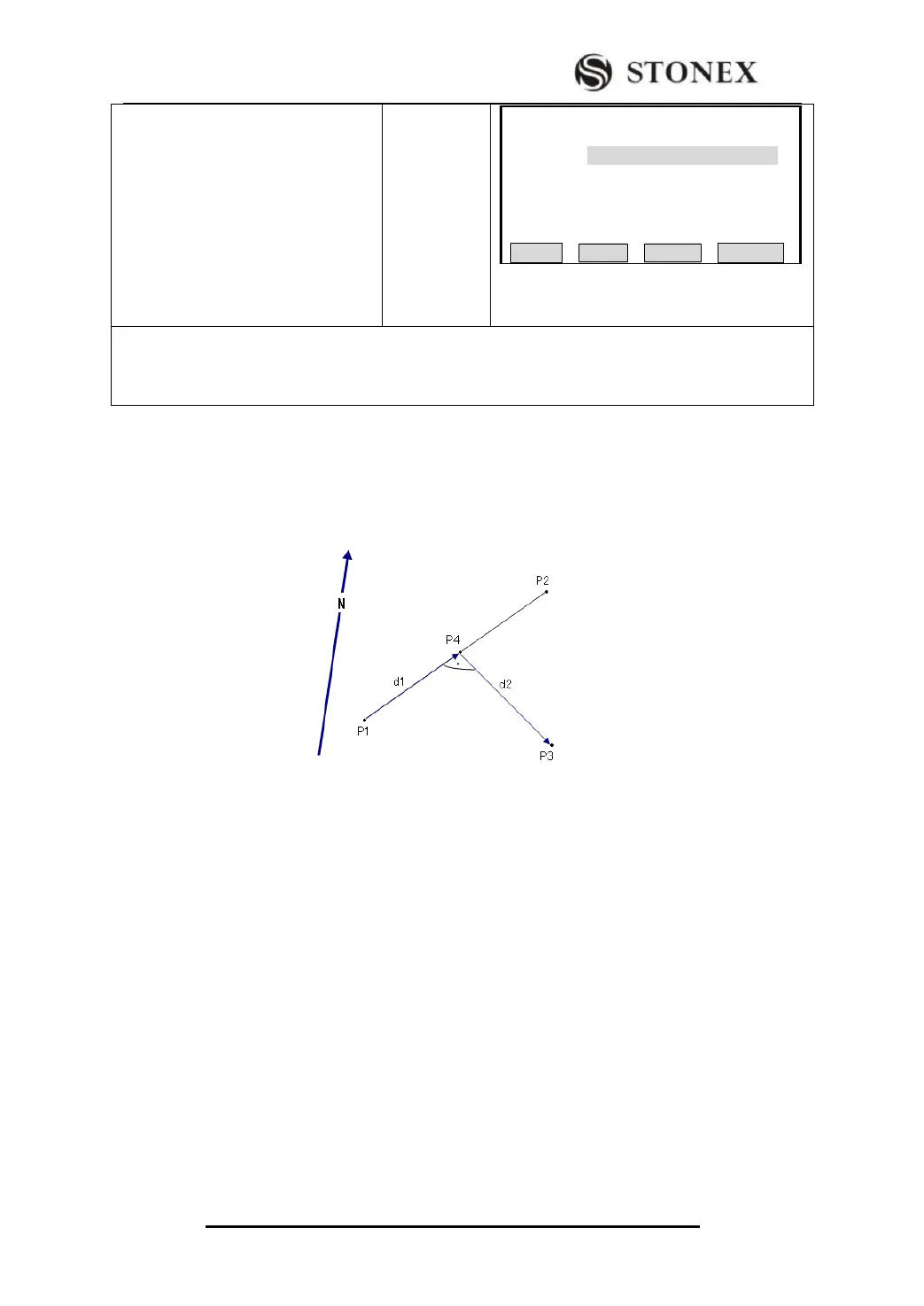

5.8.3 Offset
5.8.3.1 Distance-Offset
The known data: P1 Baseline start point
P2 Baseline end point
P3 Lateral point
The unknown data: d1 Difference in length/abscissa (HD)
d2 Lateral deviation/ordinate (Offset)
P4 Base point
