STONEX R2 User Manual

STONEX R2
45
the display of vertical angle is unstable. You can switch off the auto tilt correction
function of vertical angle.
If the mode of auto correction has been activated, (single axis, see “4.4 Main
Settings”), in the condition that the instrument has not been leveled, the program will
demand that the instrument must be leveled at first, so as to enter other functions.

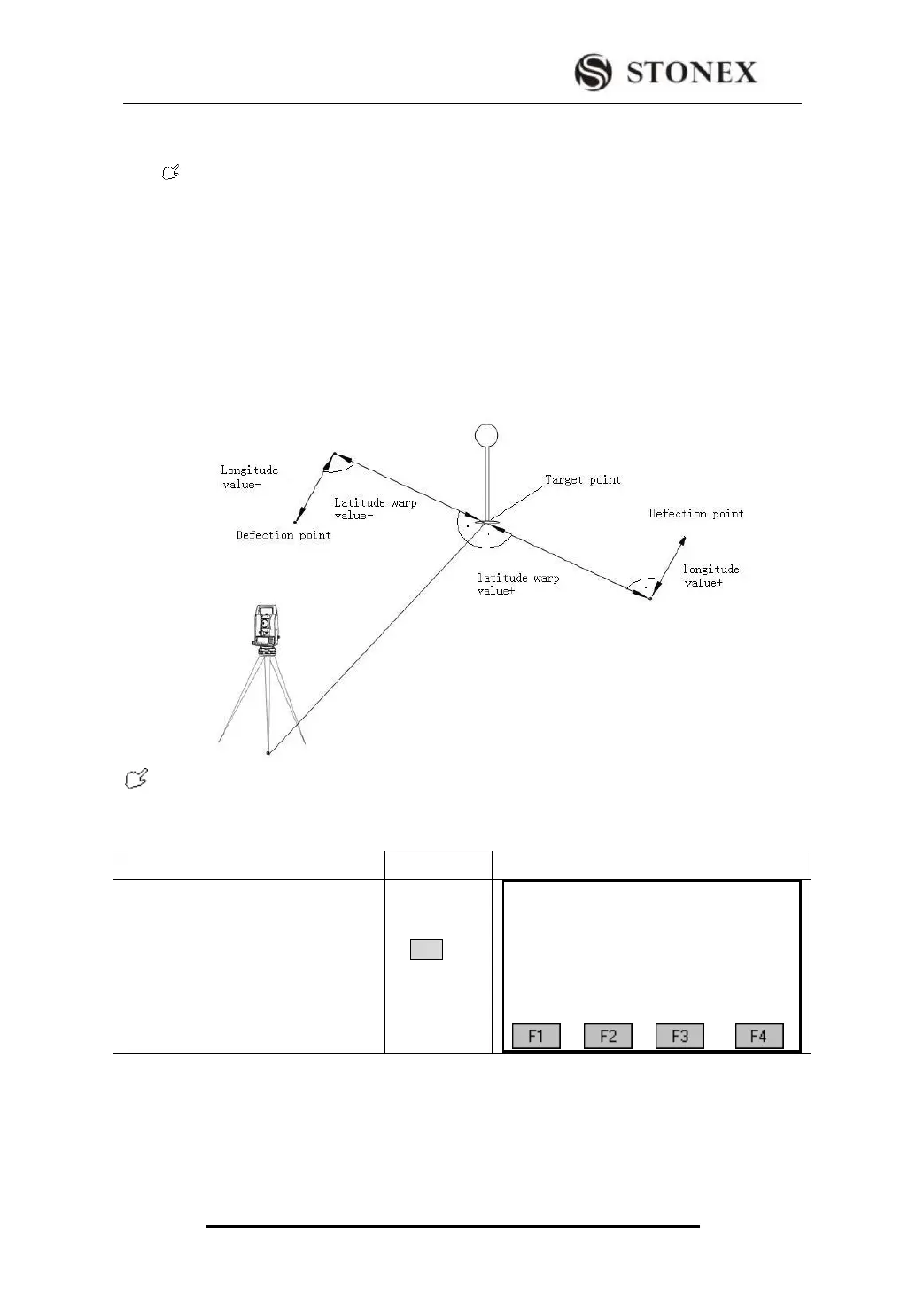

4.2 TARGET OFFSET
When it is not possible to set up the reflector or aim the target point directly, this function
will perform helpfully. Enter the offset values (length, cross and/or height offset). The
values for the angle and distances can be calculated directly for the target point.
If the height offset value is plus, it indicates that the offset point is higher than the
measurement point.
OPERATION STEPS:
OPERATIONAL STEPS
OPERATION
DISPLAY
① Press [FNC] to enter into the
Function menu.
FNC
【Function】1/4 ▼
F1 Level (1)
F2 Target Offset (2)
F3 Delete Last Record (3)
F4 Main Settings (4)
