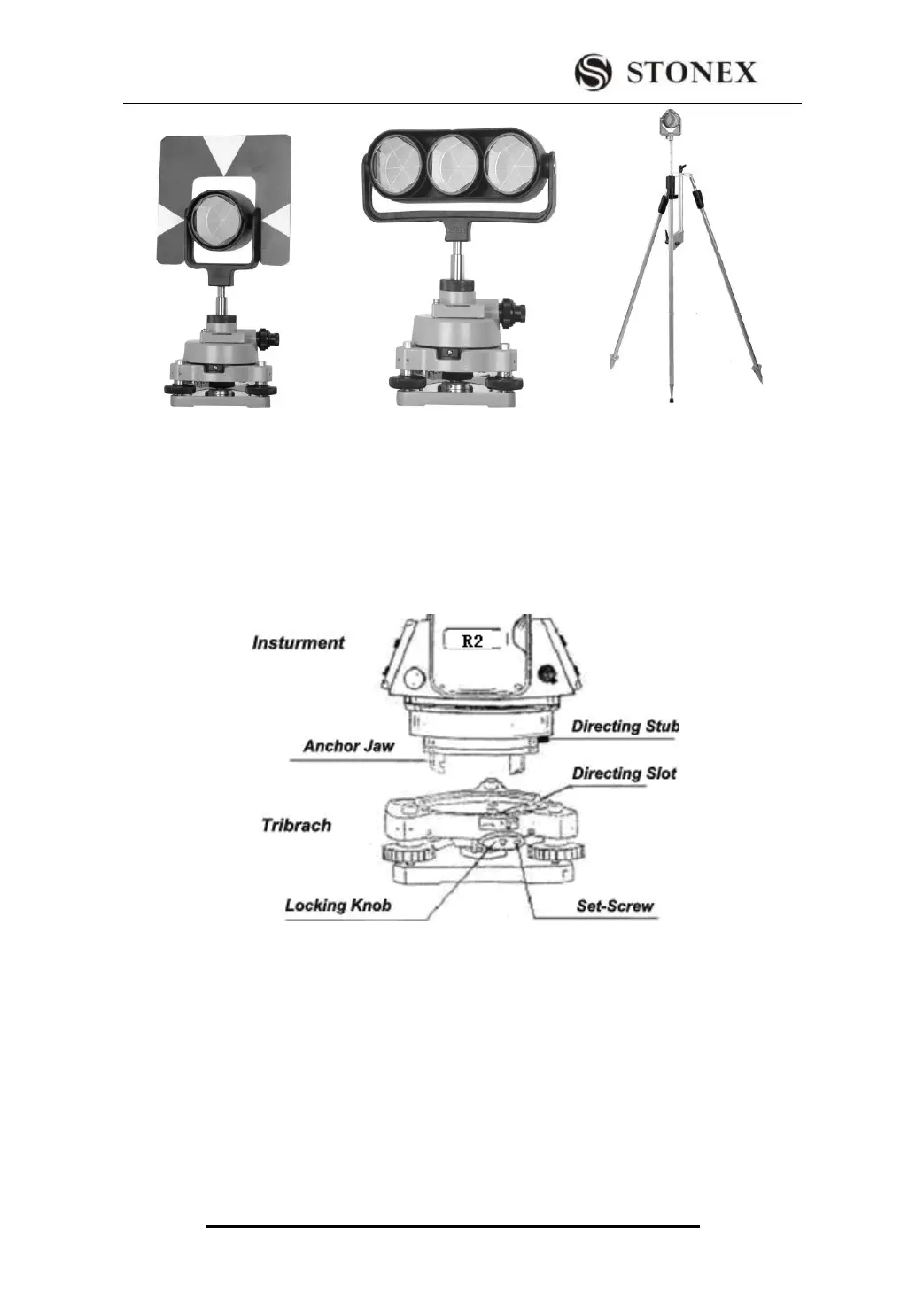

2.5 MOUNTING AND DISMOUNTING INSTRUMENT FROM TRIBRACH
²Dismounting
If necessary, the instrument (including reflector prisms with the same tribrach) can
be dismounted from tribrach. Loosen the tribrach locking screw in the locking knob with
a screwdriver. Turn the locking knob about 180° counter-clockwise to disengage anchor
jaws, and take off the instrument from tribrach.
²Mounting
Insert three anchor jaws into holes in tribrach and line up the directing stub with the
directing slot. Turn the locking knob about 180°clockwise and tighten the locking screw
with a screwdriver.
2.6 EYEPIECE ADJUSTMENT AND COLLIMATING OBJECT
Method of Collimating Object（for reference）
① Sight the Telescope to bright place and rotate the eyepiece tube to make the reticle
clear.
