STONEX R2 User Manual

STONEX R2
116

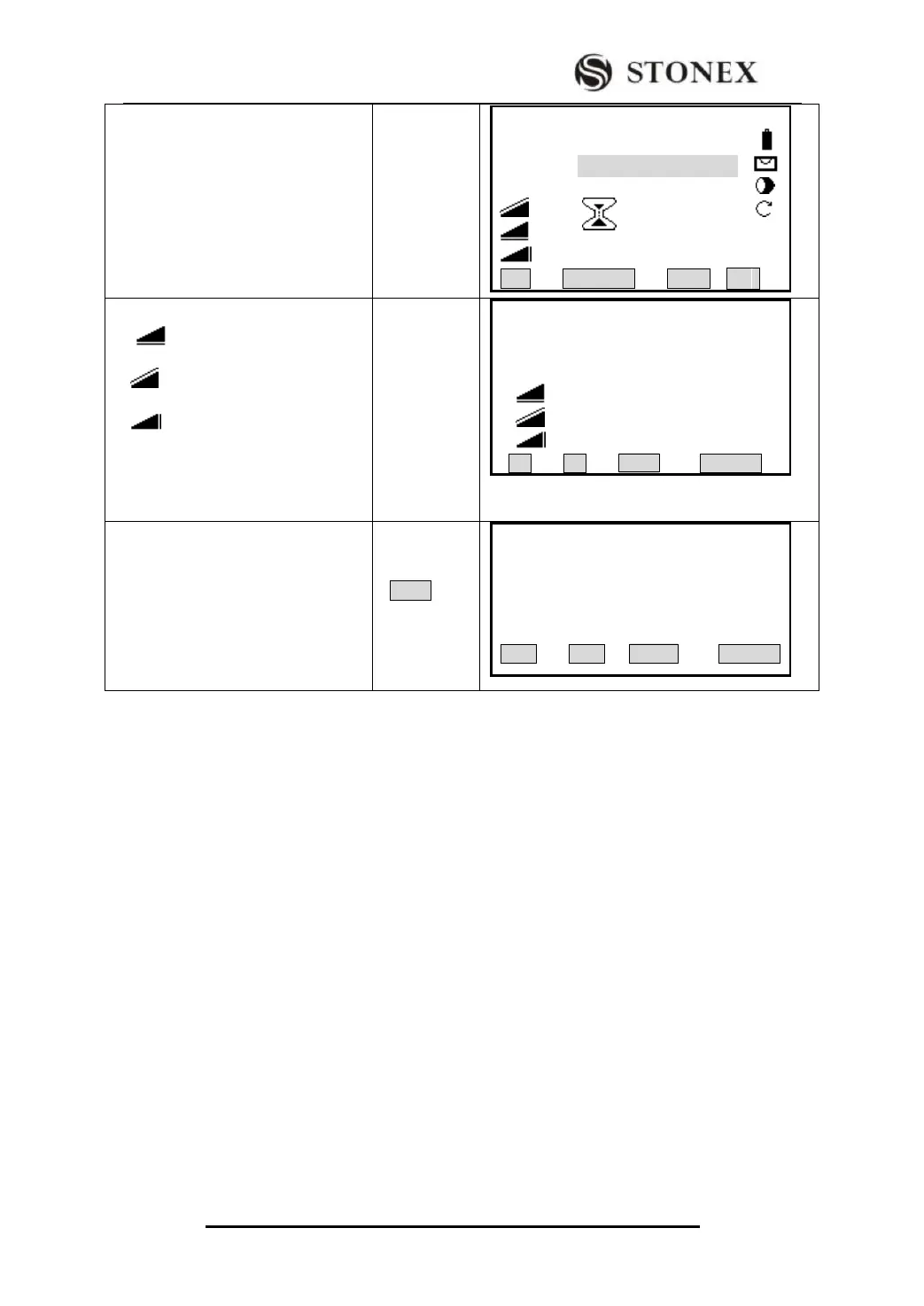

⑤ Set PtID of the second target
Point B and prism height. The
operation is similar to the above.
【Polygonal】 1/2
Point 1： 1
Point 2： 2
R.HT ： 1.500 m
： ---.--- m
： ---.--- Ⅰ
： ---.--- m
All SEARCH LIST ↓
⑥Display result of Tie Distance.
△ ： The horizontal distance
between Point A and Point B.
△ ：The slope distance between
Point A and Point B.
△ ：The vertical distance between
Point A and Point B.
Slope: The slope between Point A and
Point B (%).
【Tie Result 】 1/2 ▼
Point 1： 1
Point 2： 2
Grade ： -49.6%
△ ： 0.663 m
△ ： 0.741 m
△ ： -0.329 m
Pt1 Pt2 RADIAL
⑦Press [PAGE] to turn to Page 2.
Azimuth：the azimuth between Point A
and Point B.
PAGE
【Tie Result 】 2/2 ▼
Point 1： 1
Point 2： 2
AZ ： 173°12′53″
PT1 PT2 RADIAL
Softkeys – polygonal method:
[F1]([NewPt1]): An additional missing line is computed. Program starts again (at point 1).
[F2]([New Pt2]): Point 2 is set as starting point of a new missing line. New point (Pt2)
must be measured.
[F4]([RADIAL])：Switch to radial method.
5.9.2 Radial (A-B, A-C)
