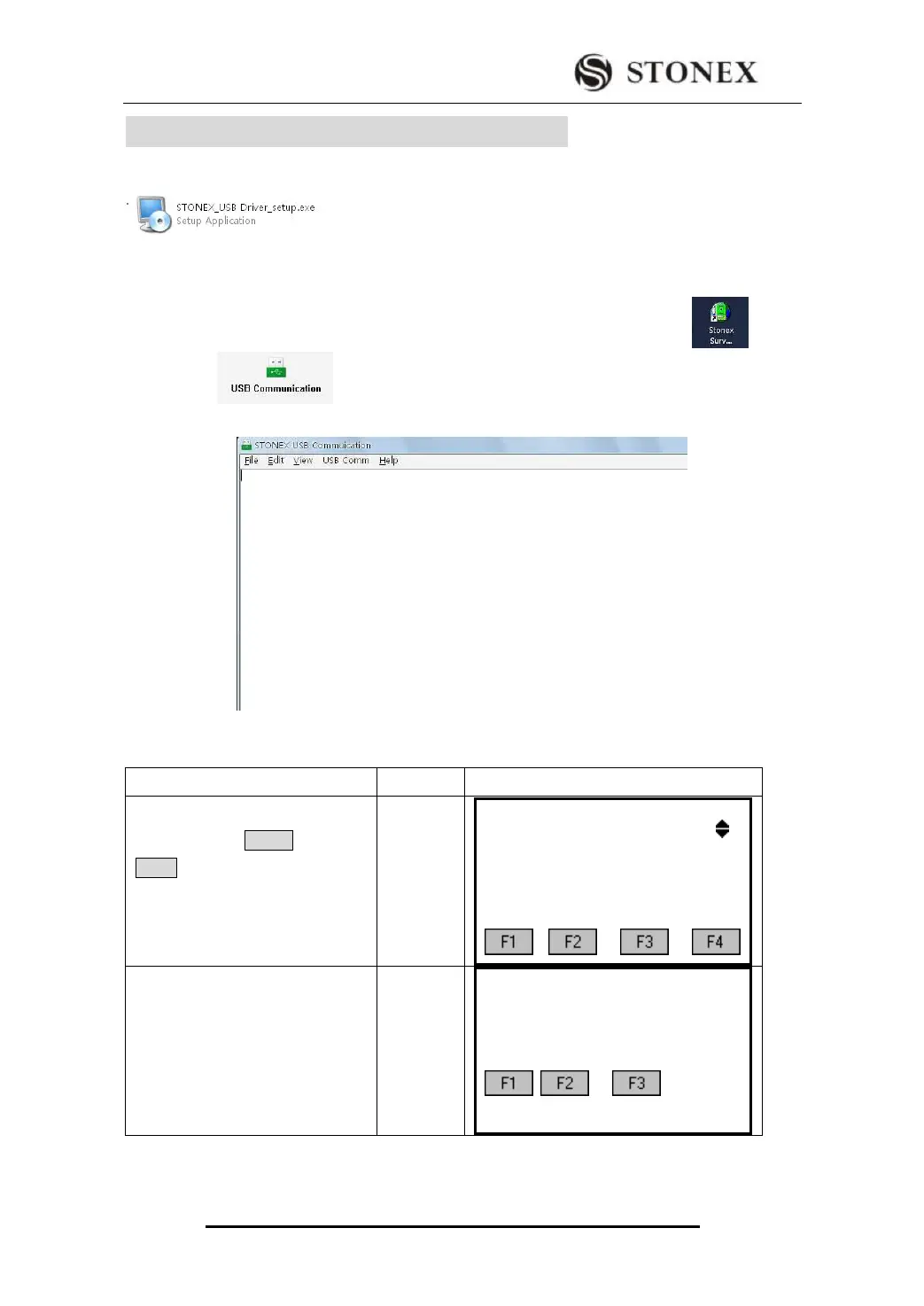

11. SEND/RECEIVE DATA BY USB
Before send data or receive data via USB port，it is necessary to install a USB driver
first. Then please make sure peripheral equipment（Such as
PC） and R2 have been connected via USB port, the communication parameters on
peripheral equipment and total station should be consistent absolutely.
After that, power on the total station then run Stonex survey office software , then
double click to open the USB communication interface as follow:
Such as Send CODE via USB
Operating steps
Button
Display
① （ First pressMENU,then press
PAGEto display Page3,and then
press the [F3] to get into the USB
Send data function.）
[F3]
【 Menu 】 3/4
F1 Data output
F2 Data Import
F3 USB Send data
F4 USB Receive
② Display the USB Send data
dialog, press [F1] to send CODE
data.
[F1]
【Data output】
F1 CODE （1）
F2 HZ Alignment （2）
F3 VT Alignment （3）
