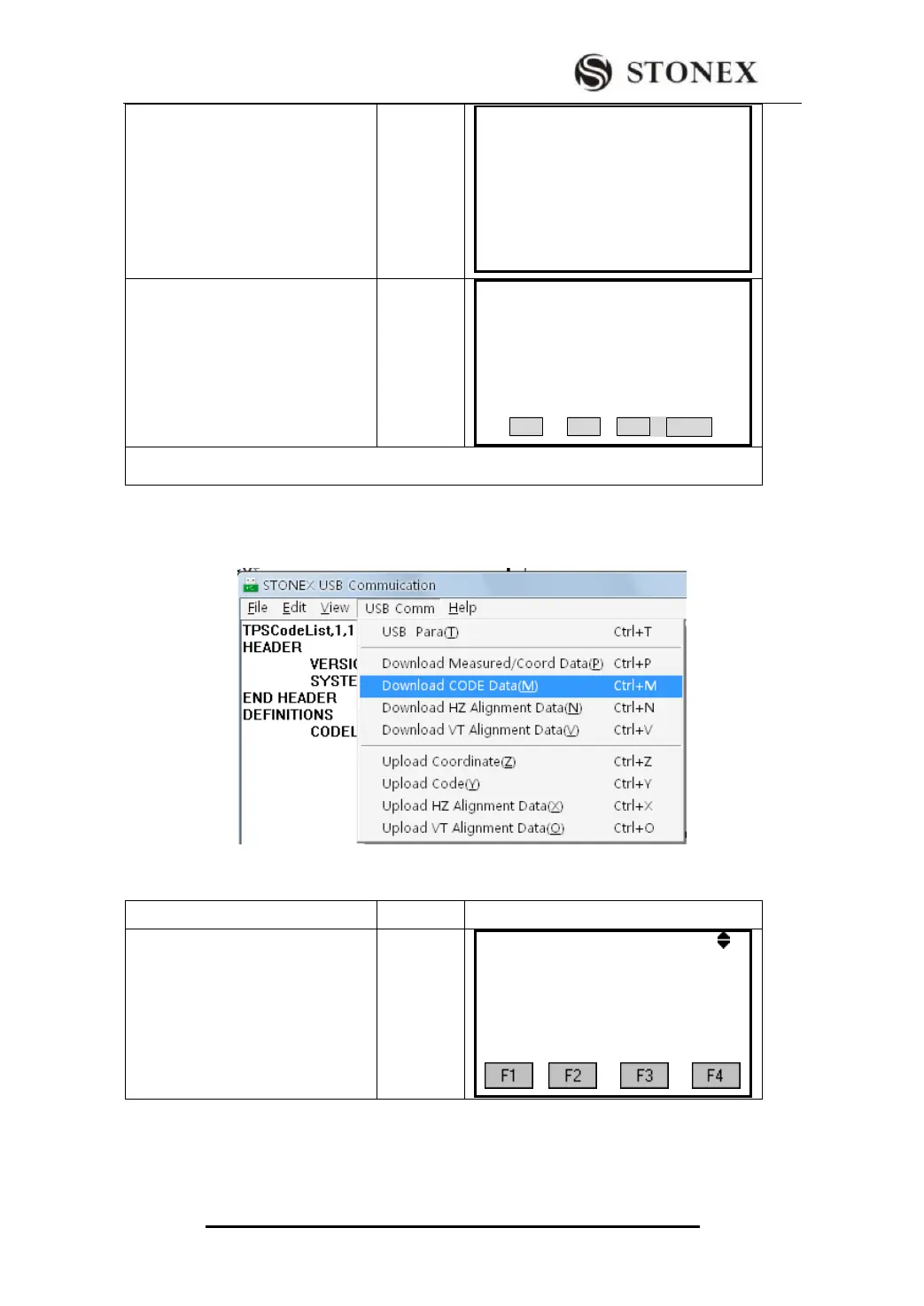

STONEX R2
175
③Screen display prompt
message:“USB initializing”.)
【Data output】
F1 CODE (1)
F2 HZ Alignment (2)
F3 VT Alignment (3)
USB Initializing…
④Start sending encoded data. At
this time the screen shows the
number indicates the number of
records being sent)
Code Send
Transfer:USB
A:﹨PCODE.DAT
Sending…
* 20
BACK
●Press [F4] (BACK) key to terminate data transmission operations, return Menu page 3/4 .
The above are the operations on the total station, after choose CODE data in ② step, you
need to choose “Download COED Data(M)” function in STONEX USB Communication
software. Then the download process begin as Step④ show.
For example: Receive HZ Alignment via USB)
Operating steps
Button
Display
①Press Menu, then press [PAGE]
to show the Menu Page3/4,and then
press [F4] to find USB receive
function)
[F4]
Menu 3/4
F1 Data Output
F2 Data Import
F3 USB Send Data
F4 USB Receive
