87
⑥ When both △L Off and △T Off
display 0 m, it implies that the current
prism point is the stake-out point.
△ H means the fill/dig data.
: To dig. The value is the depth to
dig.
：To fill. The Value is the height to
fill.
【Stake Out 】 2/3 ▼
PtID ： 6
Type： Meas.
R.HT ： 2.000m
△L Off： 0 .000m
△T Off: 0 .000m Ⅰ
△H ： 0.822m
All DIST RECORD ↓
⑦ Staking out of point is finished.
Continue to select the next point to
stake out. (Or call up the existed PtID
in the job via Pt Search function.)
【Stake Out 】 2/3 ▼
PtID ： 7
Type： Known
R.HT ： 2.000 m
△L Off： ---.--- m
△T Off: ---.--- m Ⅰ
△H ： ---.--- m
All DIST RECORD ↓
5.6.4 Coordinate Offset Stake Out
Staking out is based on a coordinate system and the offset is divided into a north and
east element.

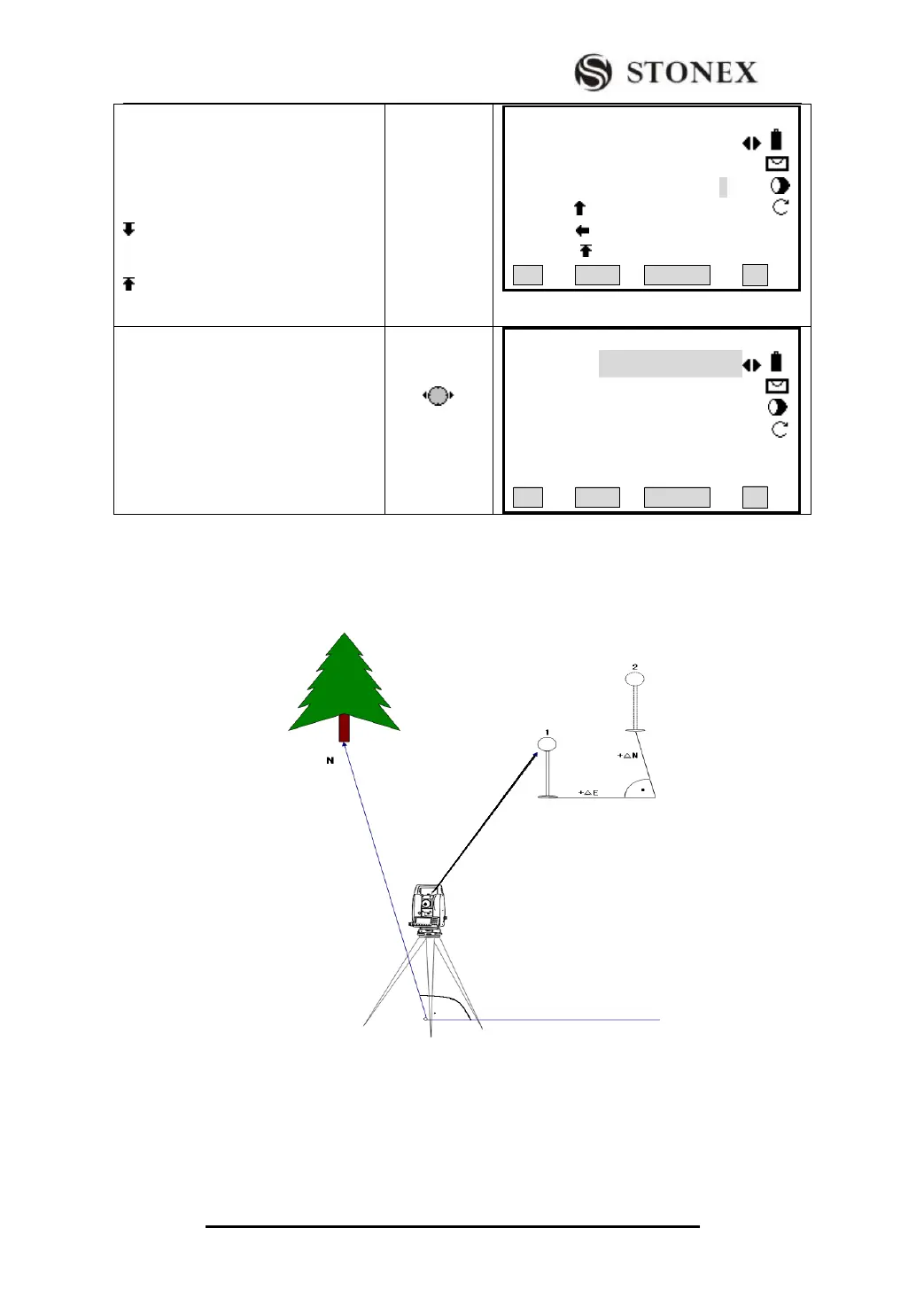

1：Actual prism position 2： Point to be staked out
Meaning of several offsets in process of coordinate stake-out.
△ X/ △ E: Offset of X coordinate between stake-out point and current
measurement point.
△ Y/ △ N: Offset of Y coordinate between stake-out point and current

STONEX R2 Specifications
