STONEX R2 User Manual

STONEX R2
182
⑤ Rotate the telescope, and collimate
the same target A precisely in FaceⅡ.
Press [F1] (Meas). When setting is
finished, the screen shows as the right
graph.
Sight the
target in
reverse
position
+
[F1]
【Hz-collimation】
Hz-collimation： 0°00′11″
BACK SET
⑥Press [F4] (set) to finish V-Index
Adjustment. The screen returns to the
Adjustment screen.
[SET]: Replace old adjustment value
with a new one.
[ESC]: Quit the program without
saving new adjustment value.
[F4]
【Adjustment】 ▼
F1 V-index (1)
F2 Hz-collimation (2)
F3 Horizontal Axis (3)
F4 VO/Axis(Cons.list) (4)
B. Optics Adjustment (professional maintenance man only)
1. Use the tangent screw to adjust the horizontal angle to the right reading which has
been eliminated C, R+C=190°13′40″-15″=190°13′25″

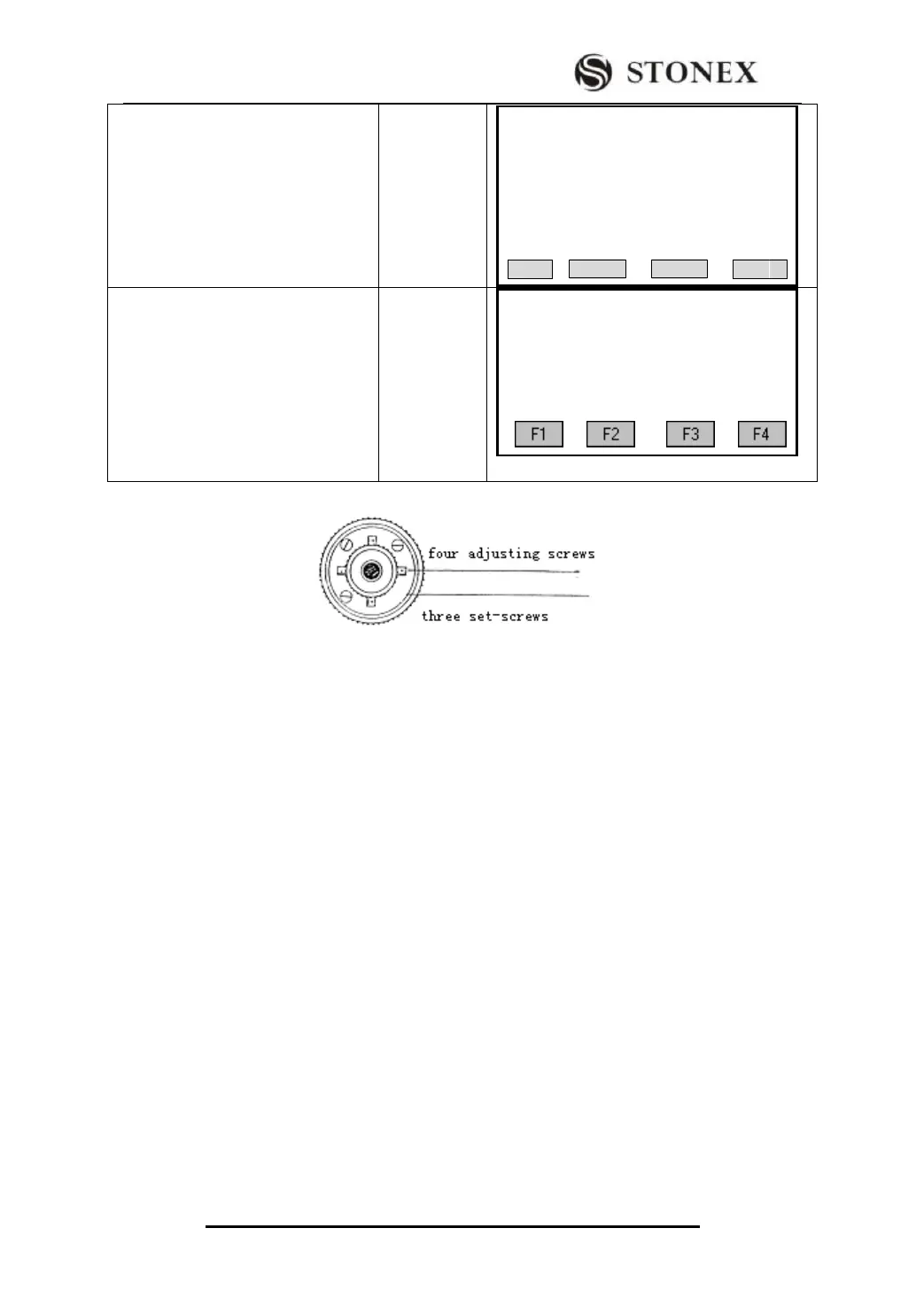

2. Take off the cover of the reticle between the eyepiece and focusing screw. Adjust the
left and right adjusting screws by loosening one and tightening the other. Move the reticle
to sight object A exactly.
3. Repeat inspection and adjustment until｜２Ｃ｜＜２０".
4. Replace the cover of the reticle.
Note: After adjustment, need to check the photoelectricity coaxiality.
13.5 VERTICAL INDEX DIFFERENCE COMPENSATION
Check
1. Mount and level the instrument and make the telescope parallel with the line
connecting the center of the instrument to any one of the screws. Lock the horizontal
clamp screw.
2. After turning on the power, zero the vertical index. Lock the vertical clamp screw and
the instrument should display the vertical angle value.
3. Rotate the vertical clamp screw slowly in either direction about 10mm in circumference,
and the error message “b” will appear. The vertical axis inclination has exceeded 3ˊat
