STONEX R2 User Manual

STONEX R2
82

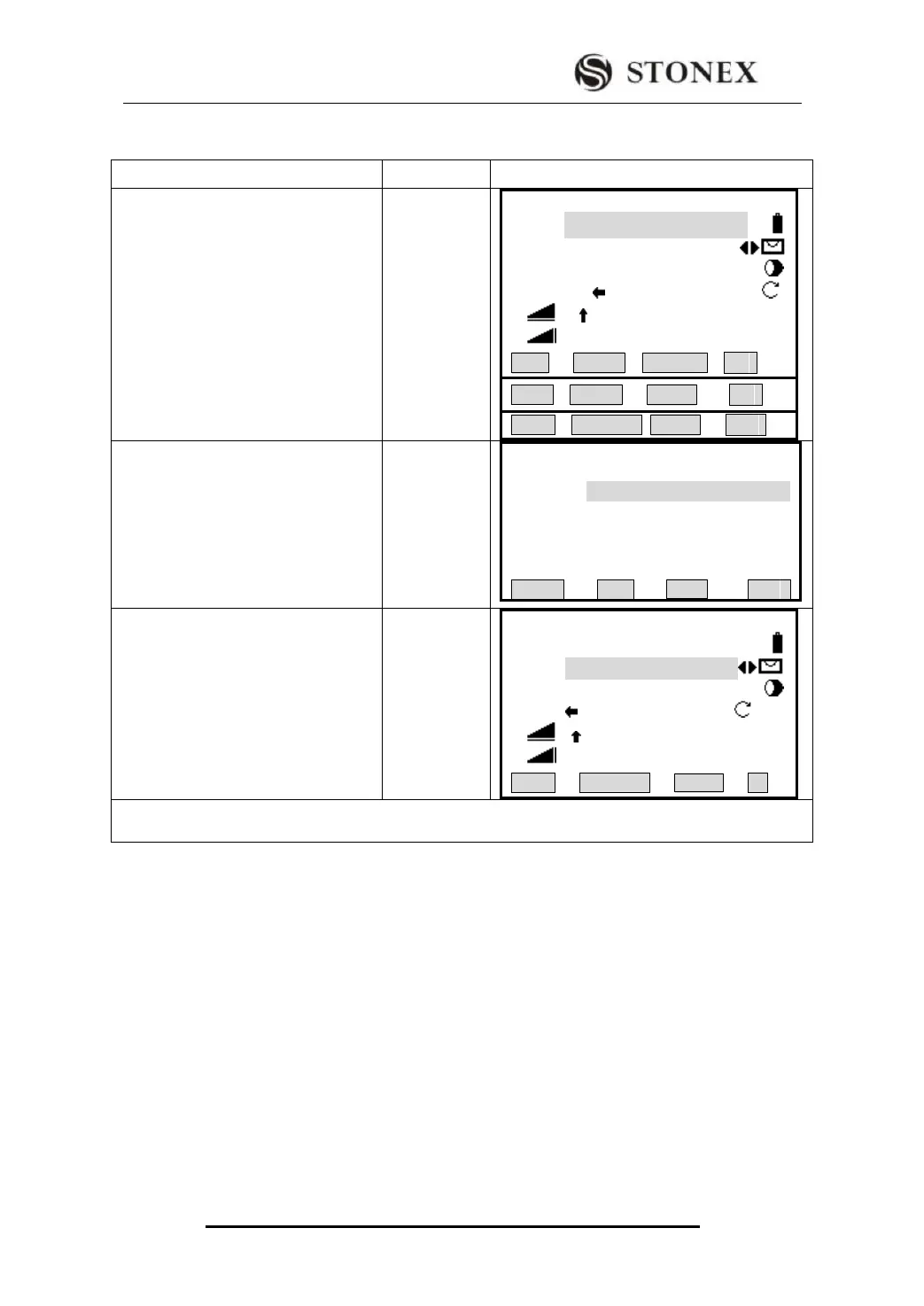

Approach 2：Press [MANUAL] to input a stake-out point without PtID or saved data.
OPERATIONAL STEPS
OPERATION
DISPLAY
①Press [F4](↓) twice to turn to Page 3.
[F4]
【Stake Out 】 1/3 ▼
FIND : *
PtID： 5
Type： Known
△Hz ： -85°51′31″
△ ： 2.055 m Ⅰ
△ ： ---.--- m
All DIST RECORD ↓
VIEW EDM ENH ↓
B&D MANUAL LIST |←
② Press [F2] (MANUAL). Input
ENH in the dialog. After one inputting,
press [ENT] to move to next item.
Press [F2] (0SET) if you want to set
ENH to 0.
[F2]
Input ENH
+
[ENT]
Stake Out Input Data
X/N ： --- ---.--- --- m
Y/E ： --- ---.--- --- m
H ： --- ---.--- --- m
BACK 0SET OK
③ After inputting ENH, press [F4]
(OK) to enter into Stake Out menu.
The program automatically set the
PtID to “DEFAULT”, and starts to
stake out the input points.
‴1), ‴2)
[F4]
【Stake Out 】 1/3 ▼
FIND :
PtID： DEFAULT
Type： Known
△Hz : -85°51′31″
△ ： 2.055 m Ⅰ
△ ： ---.--- m
B&D MANUAL |←
‴1) [MANUAL]: Data that was input will not be saved in the job.
‴2 Method to stake-out is introduced in 5.6.2.
The soft keys below the screen:
[DIST]: Starts measurement and calculation of the stake-out elements.
[RECORD]: Saves the displayed values.
