STONEX R2 User Manual

STONEX R2
187

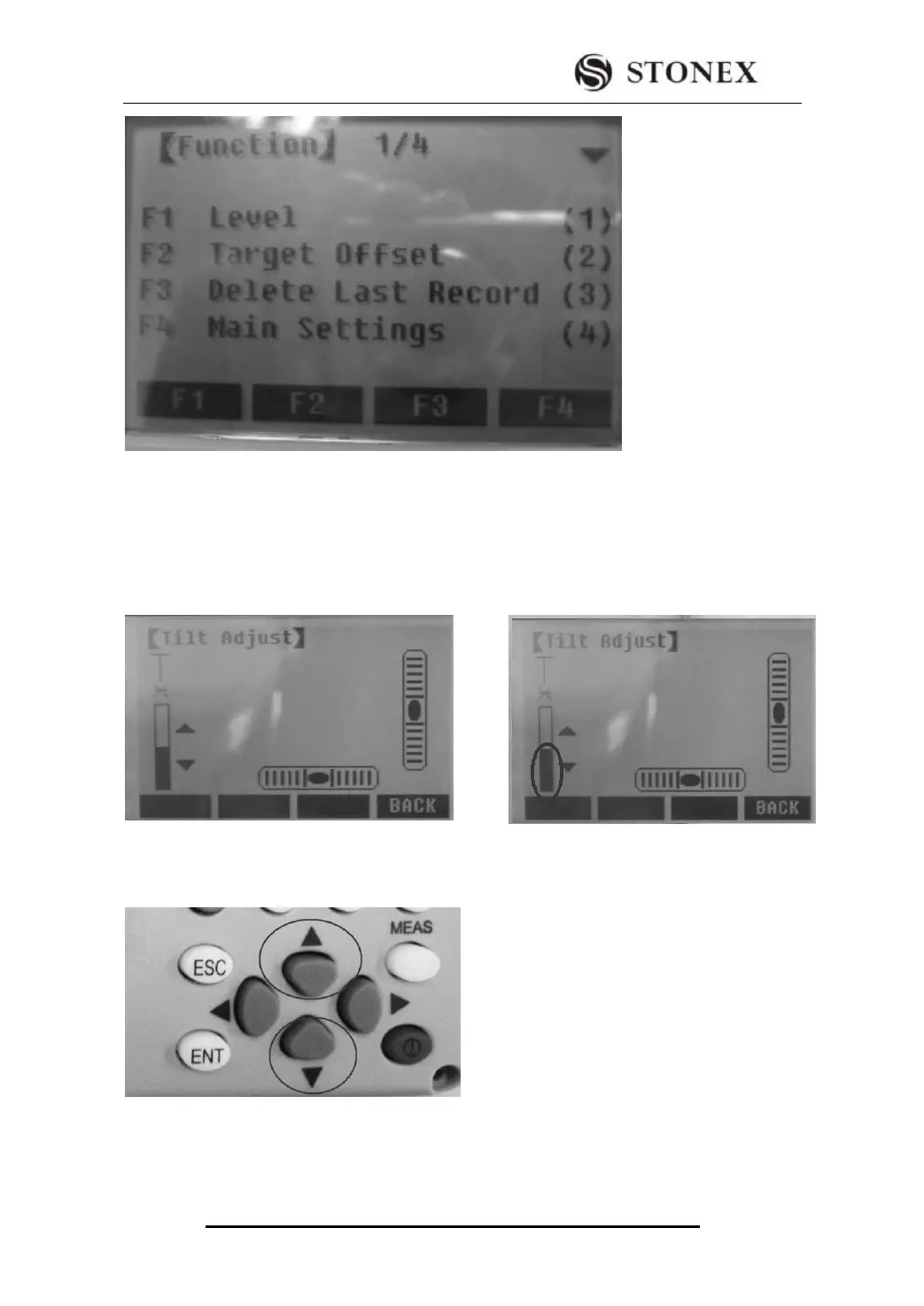

Fig.1
If the total station has laser plummet, after enter into Fig.1, and press F1 to enter into
Fig.2, then the laser beam will appear from the laser plummet. And the shadow in Fig.3
indicates the intensity of the beam.
Fig.2 Fig.3
After the laser beam appears, if you press the upper key in Fig.4, then the laser beam will
increase. If you the down key below in the circle, then the lase beam will decrease.
Fig.4
